87
- Port Replicator
Security Lock Slot
The security lock slot allows you to attach an optional physical lock down device.
DC Power Jack
The DC power jack allows you to plug in the AC adapter to power your notebook and charge the internal
Lithium ion battery.
Docking Connector
The docking connector allows you to connect the Port Replicator to your LIFEBOOK notebook.
THE SYSTEM CONTAINS COMPONENTS THAT CAN BE SEVERELY DAMAGED BY ELECTROSTATIC DISCHARGE
(ESD). T
O MINIMIZE RISK TO THE COMPONENTS, OBSERVE THE FOLLOWING PRECAUTIONS:
• BEFORE DOCKING OR UNDOCKING YOUR LIFEBOOK WHEN USING A PORT REPLICATOR, YOU SHOULD TOUCH A
GROUNDED METAL OBJECT TO DISCHARGE STATIC ELECTRICITY BUILT UP IN YOUR BODY.
• BE SURE TO POWER DOWN YOUR SYSTEM BEFORE ADDING OR REMOVING SYSTEM COMPONENTS. EVEN IF THE
SYSTEM IS IN HIBERNATE OR SLEEP STATES, DATA COULD BE LOST OR MEMORY COULD BE DAMAGED IF POWER IS
STILL AVAILABLE TO THE SYSTEM.
Attaching the Port Replicator
To attach the Port Replicator, align the Port
Replicator connector on the bottom of your
notebook with the connector on the Port Replicator
and push the corners down simultaneously.
(Figure 41)

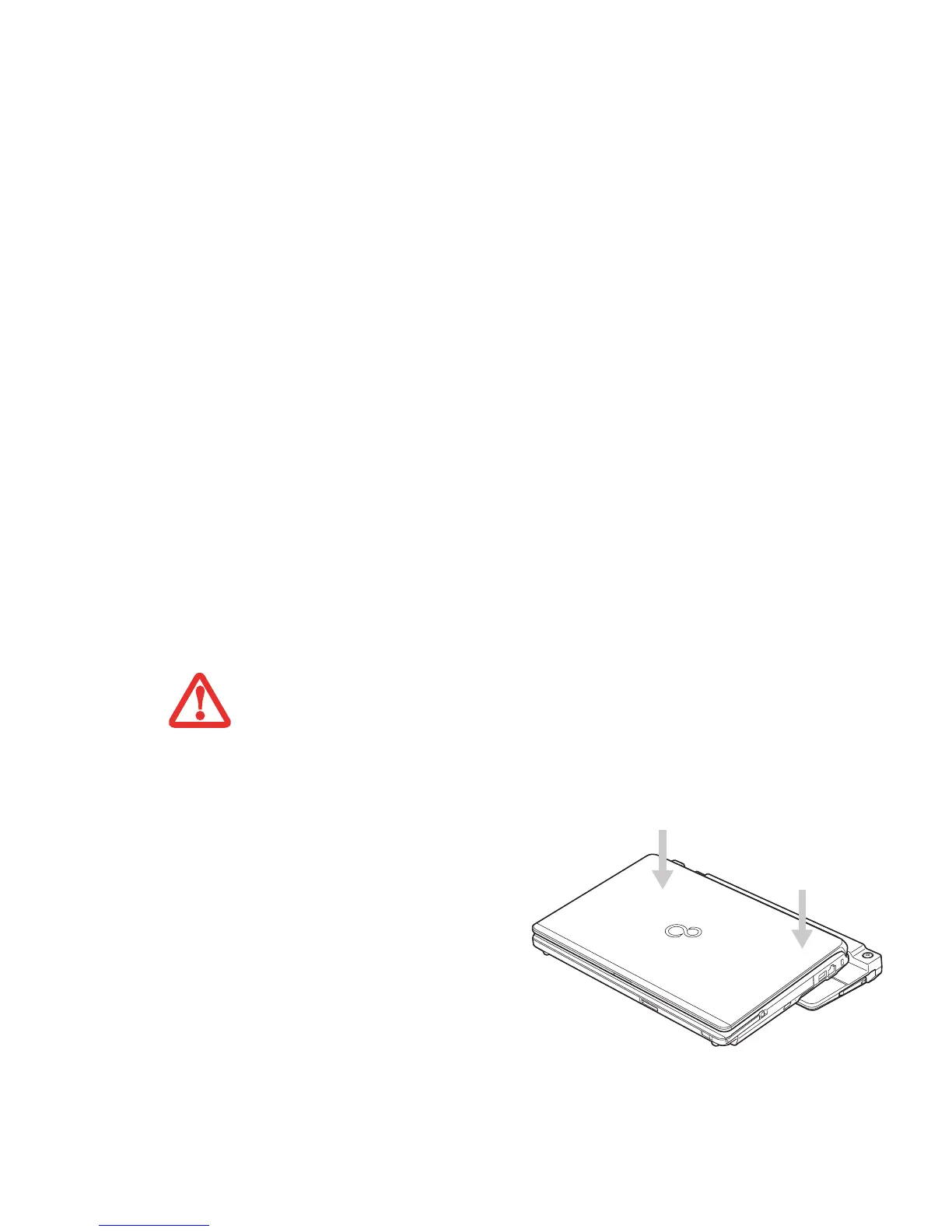

Figure 41. Attaching the Port Replicator
