U41629-J-Z156-2-76 Options Guide 19
4 Preparation
V CAUTION!
Observe the safety instructions in the chapter “Safety notes” on page 13
et seqq.
4.1 Floorstand model
4.1.1 Opening the server
Ê Terminate all applications and shut down the server correctly.
Ê If your operating system has not switched off the sever, press the on/off
switch.
Ê Pull all power connectors out of the power outlets.
Ê If required, remove the lock on the side cover.

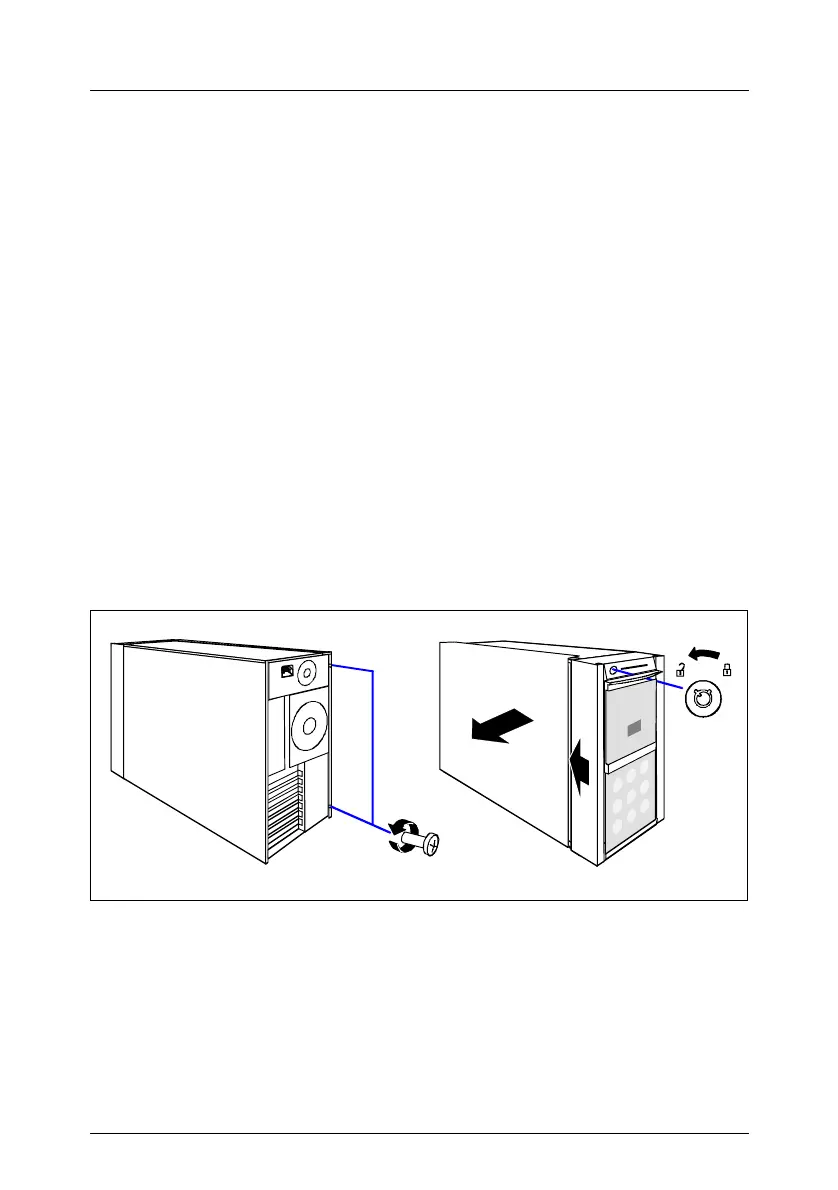

Figure 2: Loosening the screws
Ê Unlock the server (1).
Ê Loosen the two screws at the rear side (2).
Ê Push back the left-hand side cover approxiate 2 cm (3).
Ê Remove the left-hand side cover (4).
1
4
2
3
