6 Accessible drives
V CAUTION!
Observe the safety instructions in the chapter “Safety notes” on page 13
et seqq..
Three 5.25-inch bays and one 3.5-inch bay are available for accessible drives.
The top side bay is already equipped with a CD/DVD-ROM drive. The two lower
bays can also be used to install a hard disks extension box.
6.1 Installing an accessible 5.25-inch drive
The 5.25-inch drives available are magnetic tape drives, CD/DVD-ROM drives
and CD/DVD-ROM burners. These drives can be installed in the two free 5.25-
inch bays.
Ê Open the server and remove the front cover or rack front cover as described
in the chapter “Preparation” on page 19 et seqq..
I New 5.25-inch drives are supplied without EasyClick rails. Before
installing a new drive you must therefore remove the EasyClick rails from
the dummy cover and mount the EasyClick rails on the new drive.

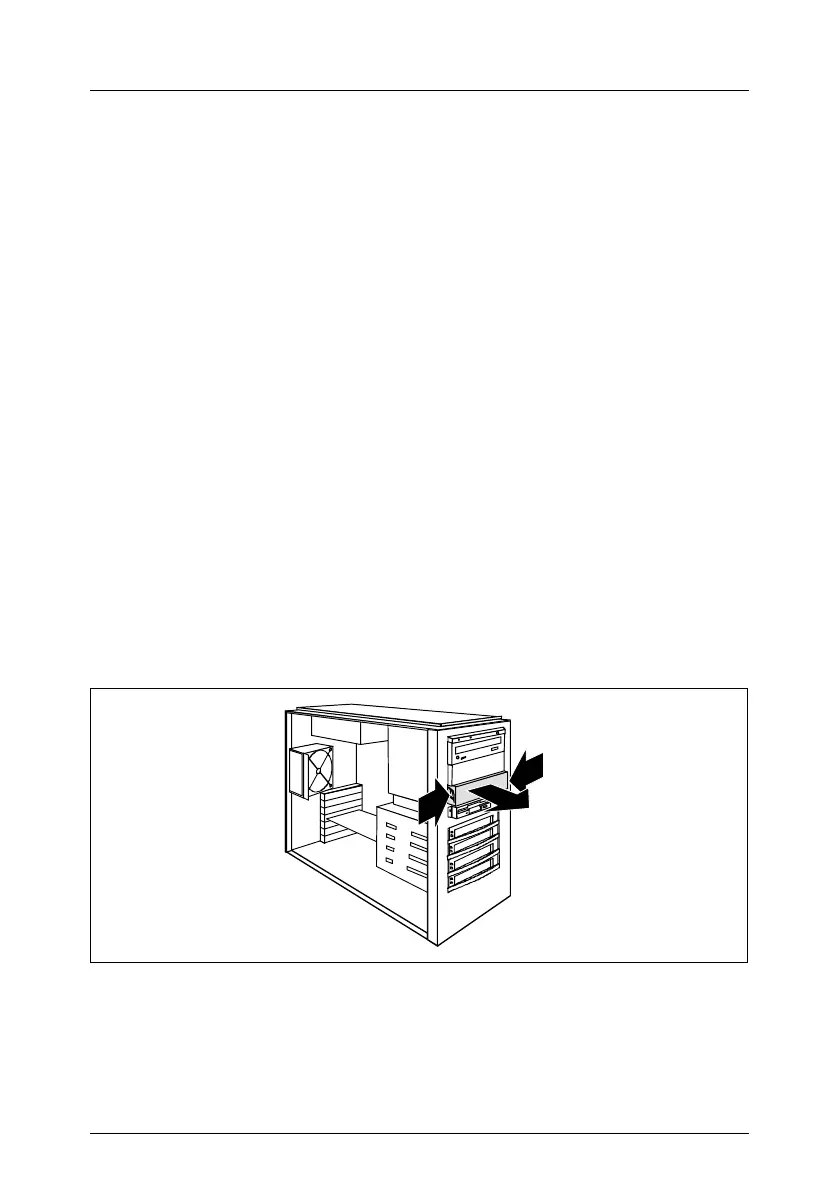

Figure 14: Removing the dummy cover
Ê Press inward on the two metal tongues of the EasyClick rails (1) until the
locking mechanism disengages.
Ê Remove the dummy cover from the mounting bay (2).
1
1
1
2
