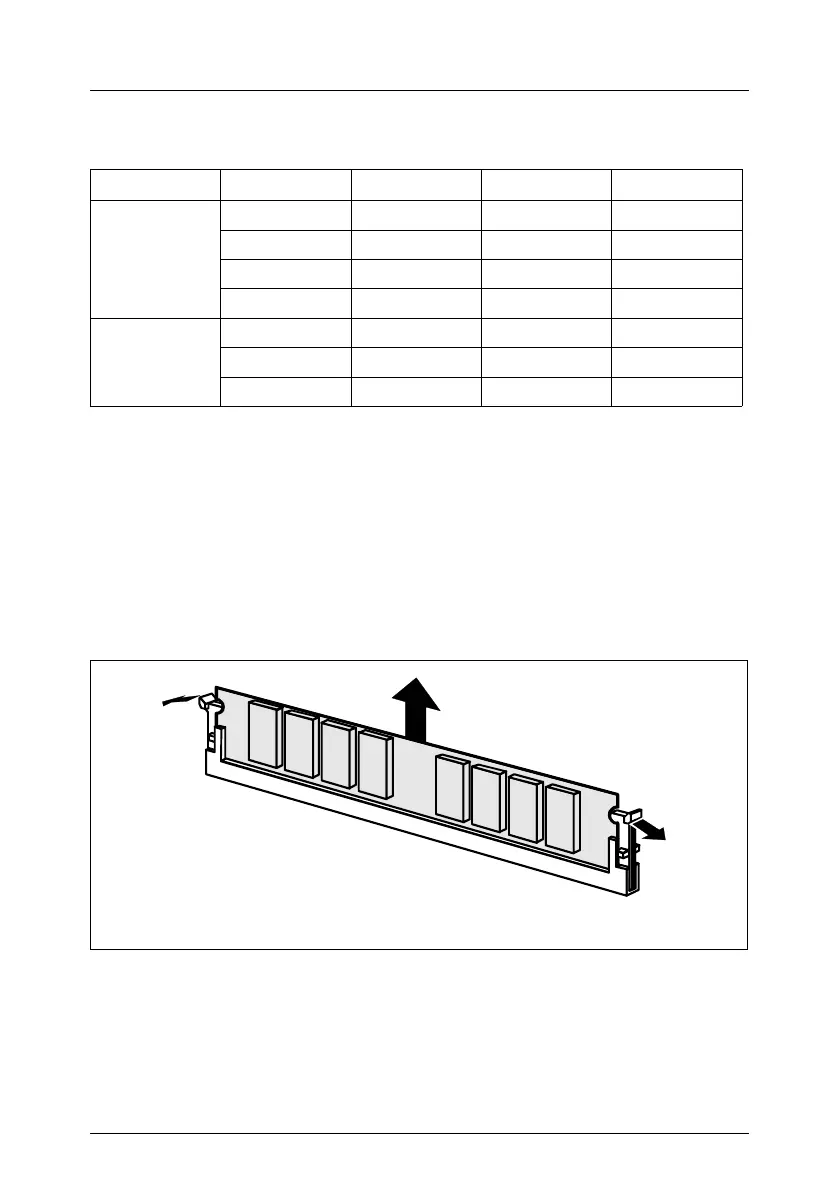

Extending/replacing the main memory Main memory
The table below shows the order in which the memory banks must be equipped:
I In case of dual channel configuration 3 all four memory slots must be
equipped with identical memory modules.
5.2 Extending/replacing the main memory
Ê Open the server as described in the chapter “Preparation” on page 19 et
seqq..
Figure 12: Removing a memory module
Ê Flip outwards the ejector tabs on each side of the desired slot (1).
Ê If the mounting location has already been equipped: carefully remove the
memory module from its mounting location. (2).
DIMM 1A DIMM 2A DIMM 1B DIMM 2B
single channel
equipped empty empty empty
empty equipped empty empty
empty empty equipped empty
empty empty empty equipped
dual channel equipped empty equipped empty
empty equipped empty equipped
equipped equipped equipped equipped
1
1
2
