7 Controllers in the PCI slots
V CAUTION!
Observe the safety instructions in the chapter “Safety notes” on page 13
et seqq..
The system board offers seven PCI slots: 2 x PCI-X 1.1 (64 Bit, 66/100 MHz),
3 x PCI (32 Bit, 33 MHz), 1 x PCI-Express x1 and 1 x PCI-Express x4.
The PCI slot 2 is prepared for Zero Channel RAID (ZCR).

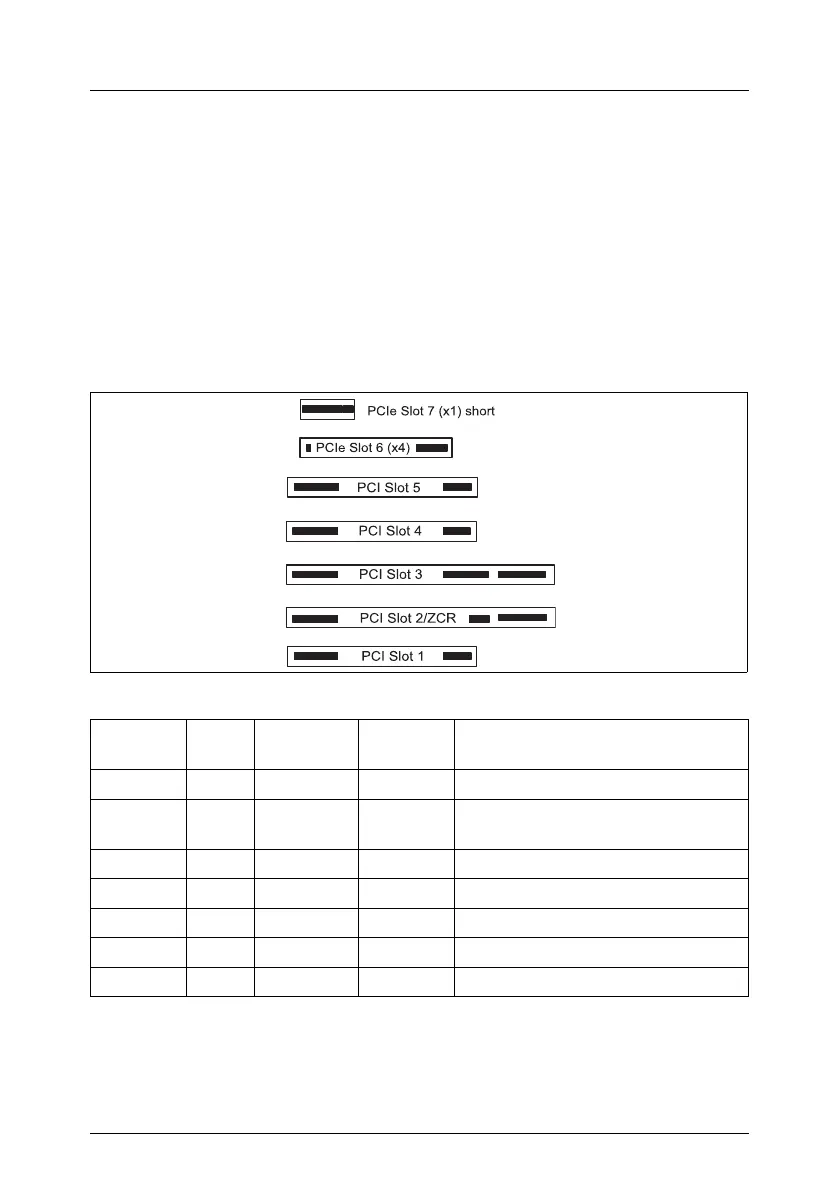

Figure 22: Numbering of the PCI slots
I For more information see the Technical Manual of the system board
D2239.
PCI slot 64 Bit/
32 Bit
Frequency
in MHz
Voltage Description
1 32 Bit 33 5 32-Bit PCI bus slot
2 64 Bit 66 3,3 64-Bit PCI-X 1.1 bus slot; prepared for
ZCR (ZCR only SCSI version)
3 64 Bit 66 3,3 64-Bit PCI-X 1.1 bus slot
4 32 Bit 33 5 32-Bit PCI bus slot
5 32 Bit 33 5 32-Bit PCI bus slot
6 PCIe x4 bus slot
7 PCIe x1 bus slot
