1. DESCRIPTION OF OPERATION
1-3

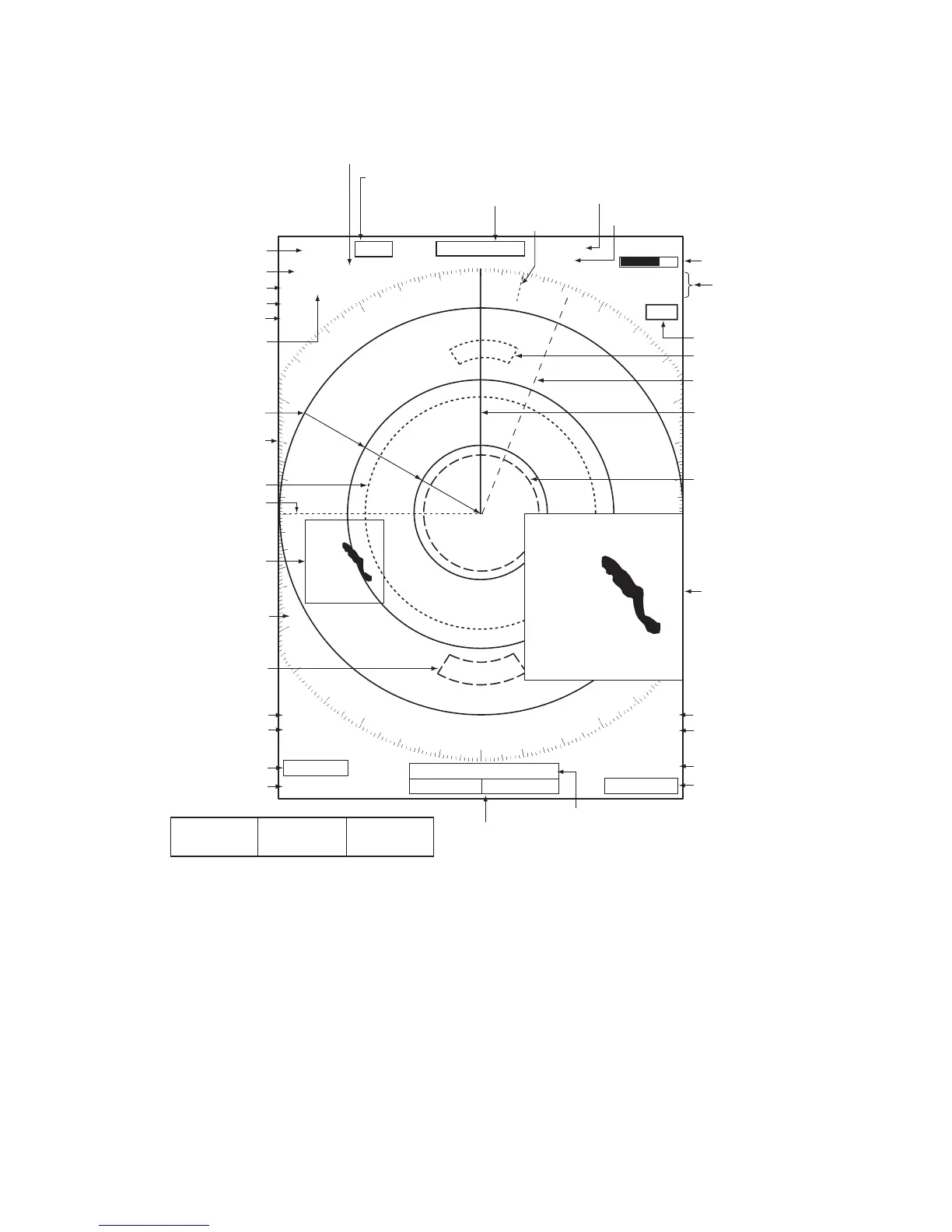

1.3 Display Indications
Display indications
Heading
Nav data: Appears at screen bottom when [Data Box]
in the [Display] menu is set to [Nav] or [All]. Appropriate
sensors required to display nav data.
Cursor data
(Range and bearing or L/L position)
Display mode
Range ring interval
Range
Pulselength
Trail reference
No. 1 EBL bearing
No. 2 EBL bearing
Offcenter
(M: Manual, A: Auto, C: Custom)
North marker
Tuning indicator
Target Alarm 1 (2)
indications
No. 1 VRM range
No. 2 VRM range
WATCHMAN
Target alarm zone 1
Target alarm zone 2
350.0°
TRAIL(T)
15 S
+
1.5
1.5
NM
NM
OFFCENT(A)
WTC
Heading line
Range ring
No. 2 VRM
No. 2 EBL
Zoom window
Zoom cursor
No. 1 EBL
No. 1 VRM
Cursor
Bearing scale
HDG
0.5
SP CS 1
Custom setting
(1 - 3)
H UP
LAT 34°56.123N
LON 135°34.567E
SPEED 12.3KN
LAT 34°56.123N
LON 135°34.567E
TTG 01:00
BR G
14.8°
RNG 0.876NM
TTG
00:20
OWN SHIP
+ CURSOR
WAYPOINT
TUNEAUTO
ALM1_ACK
ALM2_OUT
SLAVE
Input source
(shown when display
unit functions as
remote display)
IR 1
A/C AUTO
VRM
0.889 NM
0.422 NM
Interference rejector
Auto adjustment of
rain and sea clutters
22.0 ° R
270.0 ° R
ES 1
EAV 1
EBL
Echo stretch
Echo averaging
241.0 ° R 1.592 NM
VECT TRUE 05:00
Vector time
ZOOM(R)
Zoom indication
+
Trail time
