5. VIDEO PLOTTER OPERATION

5-29

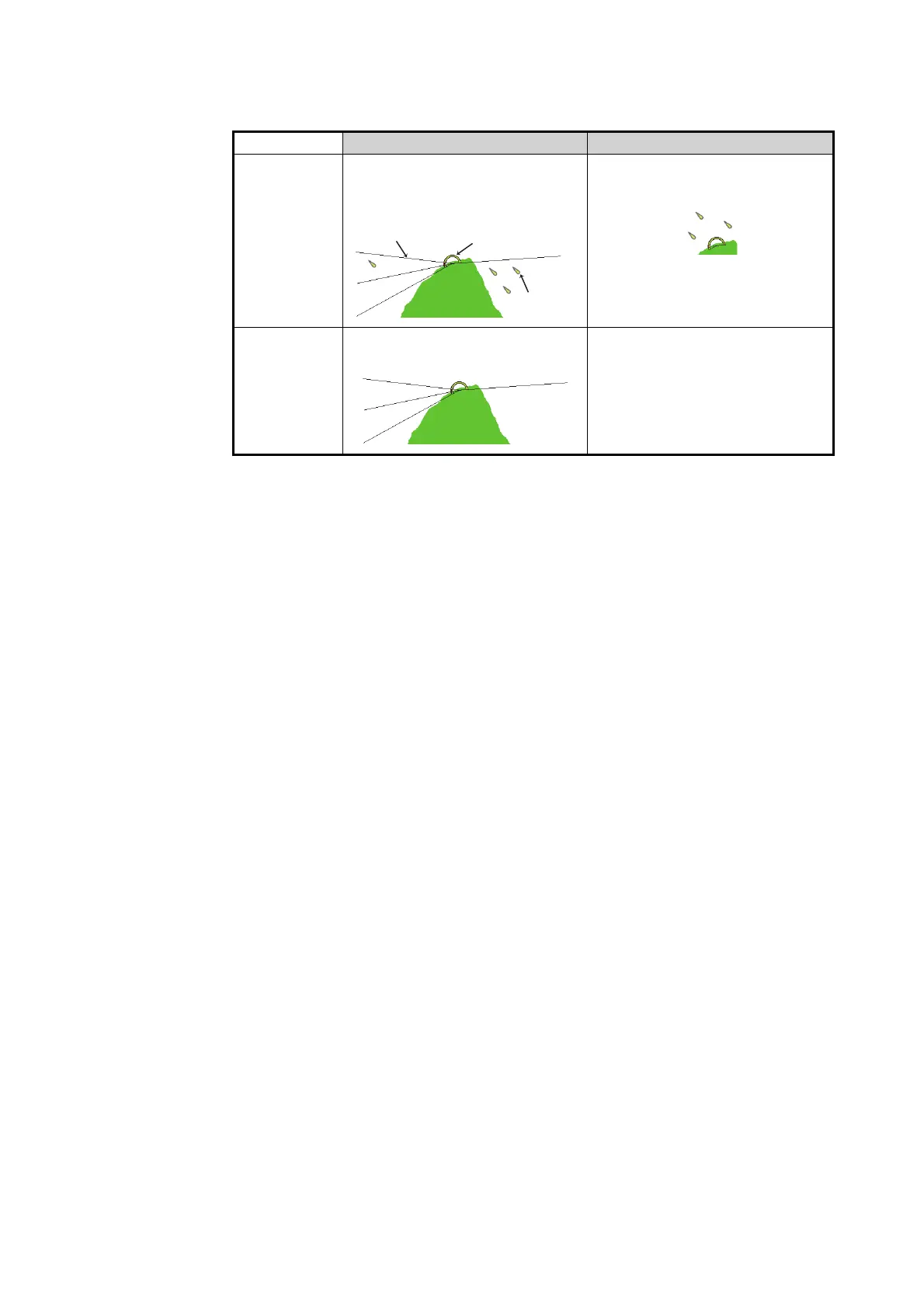

The mark display for light sector differs according to the setting of light beacon.

For details, see the table below.

5.11.5 How to show/hide land mass emphasis

[LAND MASS EPHASIS] sets whether to highlight the outer edge of land masses on

the display.

1. Open the menu.

2. Select [2 MARKS•CHART].

3. Select [0 NEXT].

4. Select [4 EMPHASIZE LAND MASS].

5. Select [OFF] to disable the emphasis. There are three levels of emphasis avail-

able; a higher setting gives a thicker emphasis line around the land mass.

6. Close the menu.

[LIGHT SECTOR] set to [ON]. [LIGHT SECTOR] set to [OFF].

[LIGHT

BEACON]

set to [ON].

Light sector and range lines are

displayed (lines for range are

long).

Only light sector is displayed

(lines for range are short).

[LIGHT

BEACON]

set to [OFF].

Light sector and range lines are

displayed (range lines are long).

Light sector is not displayed.

Light sector

Range line

Light buoy
