1
MOUNTING
1.1 Display Unit
Mounting considerations
The display unit is designed to be mounted on a desktop. When selecting a mounting
location for the display unit keep in mind the following points.
• Locate the unit where it can be easily operated and the screen viewed while looking
over the bow.
• Locate the unit out of direct sunlight and away from heat sources because of heat that
can build up inside the cabinet.
• Locate the equipment away from places subject to water splash and rain.
• Be sure the mounting location is strong enough to support the weight of the unit under
the continued vibration which is normally experienced on the ship. If necessary rein-
force the mounting location.
• Leave sufficient space on the sides and rear of the unit to facilitate maintenance. Also,
leave a foot or so of “service loop” in cables behind the unit so it can be pulled forward
for servicing or easy removal of connectors.
• A magnetic compass will be affected if placed too close to the display unit. Observe the
following compass safe distances to prevent deviation of a magnetic compass: Stan-
dard compass, 1.1 m, Steering compass, 0.8 m.
Procedure
1. Unfasten two bolts (M8X40) at the front of the display unit. Remove the mounting plate.
2. Referring to the drawing below for dimensions, drill four mounting holes of ø12 mm in
the mounting location.
200
26 26
100
160
490
20072
100
400
100
4-φ12
All dimensions
in millimeters

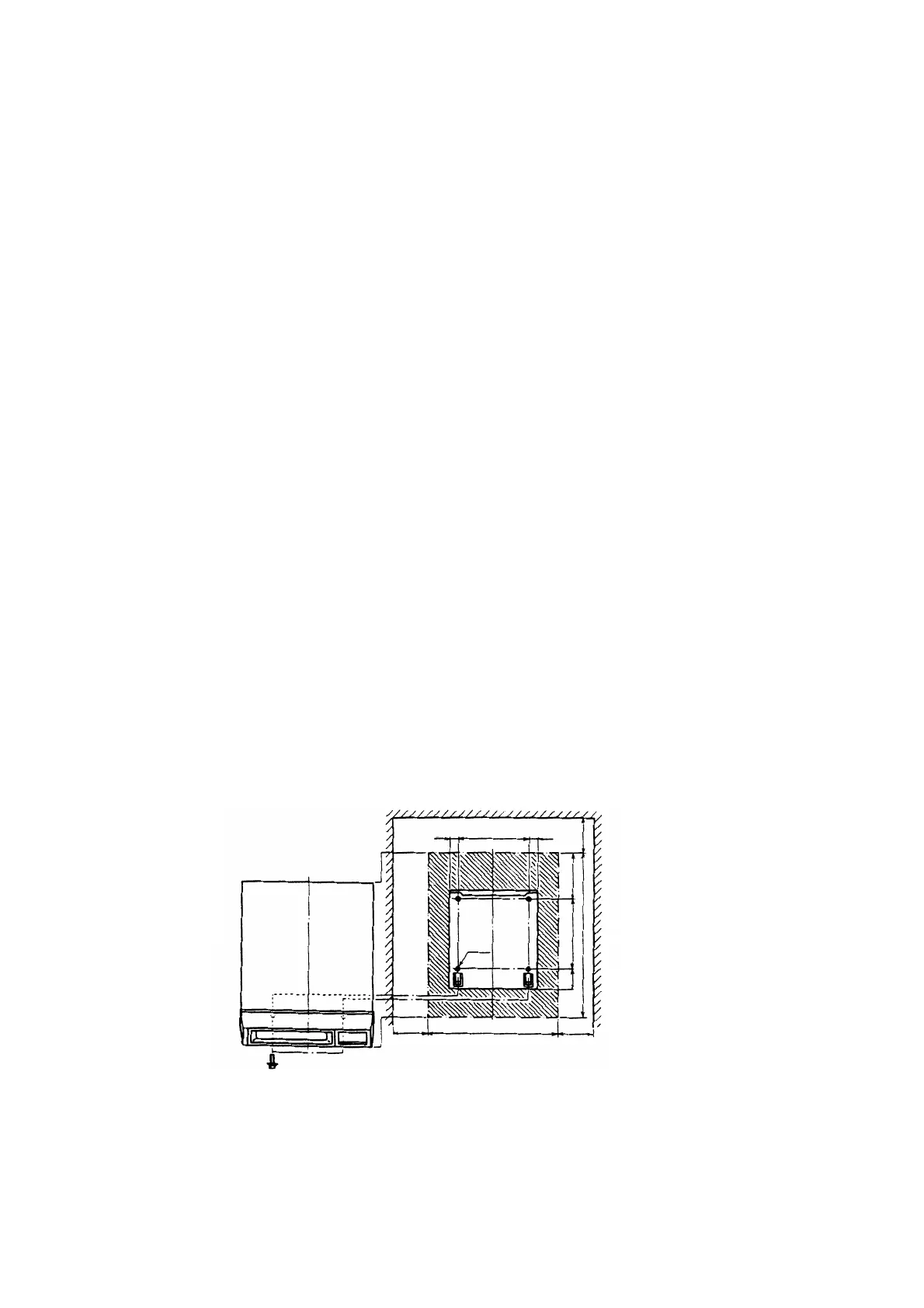

Figure 1-1 Display unit mounting dimensions
3. Fix the mounting plate to the mounting location with M10 bolts, nuts and washers.
4. Fasten the display unit to the mounting plate with the screws removed at step 1.
To Next Page
