Furuno FCV-1500 User Manual

21

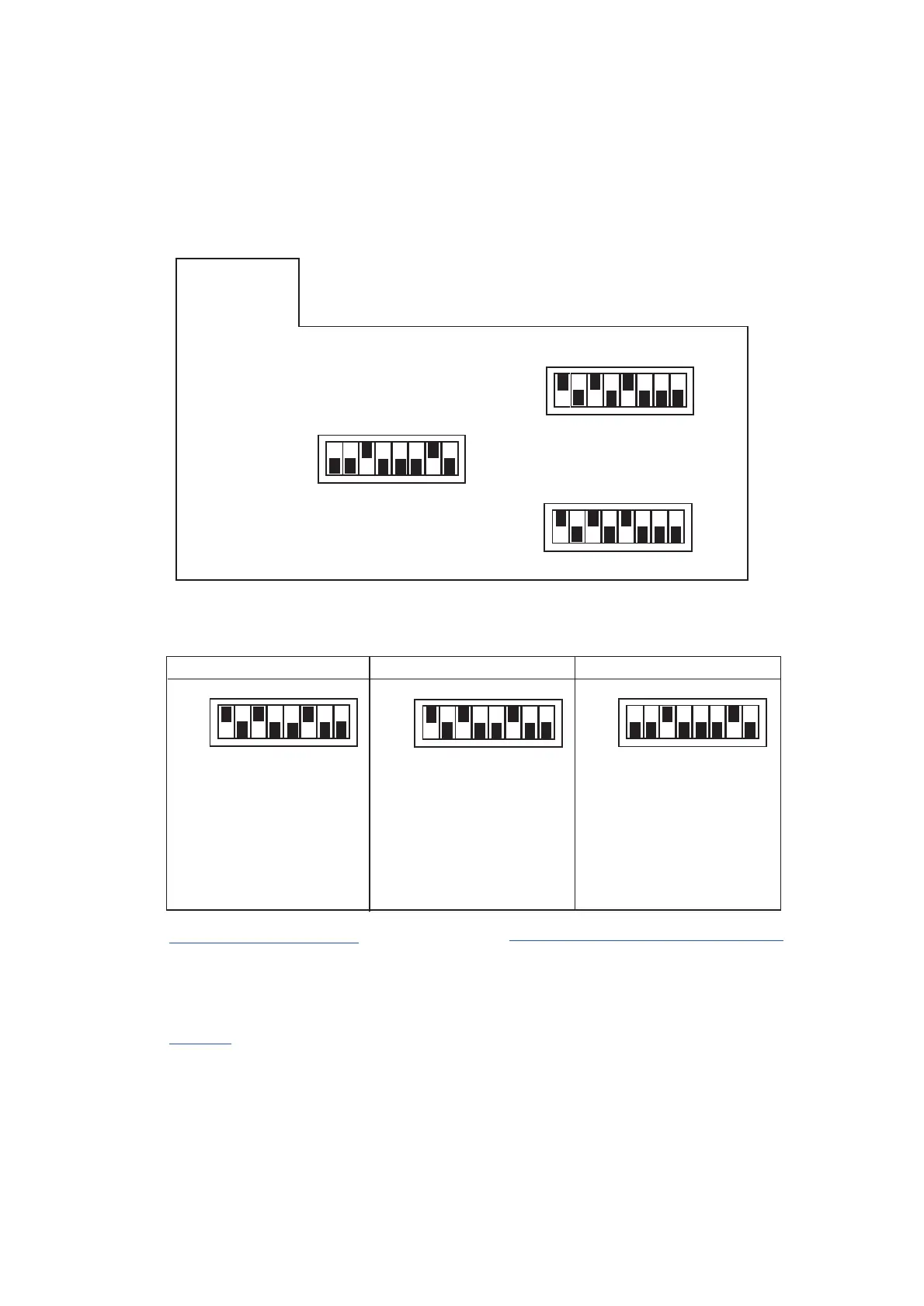

3.6 DIP Switch Settings for EXIF Board
Set the DIP switches on the EXIF Board 02P6279 according to equipment connected. No
change is necessary when connecting a video sounder which uses a linear amplifier (FCV-
271/382/782, etc.). For a video sounder with a log amplifier (FCV-1500, etc.) change the
DIP switch settings as below. Early model FURUNO video sounders which have a log
amplifier cannot be connected.
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
ON
OFF
1 2 3 4 5 6 7 8
S3
S2
S1
DIP switch settings on EXIF Board for linear amp
ON
OFF
1 2 3 4 5 6 7 8
1: KP OUT L POS (Default: ON)
2: KP OUT L NEG (Default: OFF)
3: KP IN L POS (Default: ON)
4: KP IN L NEG (Default: OFF
5: LINER IN L (Default: ON)
6: LOG IN L (Default: OFF)
7: KP IN L 12V (OFF, Default)
KP IN L 5 V (ON)
8: WL IN L 12V (OFF, Default)
WL IN L 5 V (ON)
DIP SWITCH S1 DIP SWITCH S2 DIP SWITCH S3
ON
OFF
1 2 3 4 5 6 7 8
1: KP OUT H POS (Default: ON)
2: KP OUT H NEG (Default: OFF)
3: KP IN H POS (Default: ON)
4: KP IN H NEG (Default: OFF
5: LINER IN H (Default: ON)
6: LOG IN H (Default: OFF)
7: KP IN H 12V (OFF, Default)
KP IN H 5 V (ON)
8: WL IN H 12V (OFF, Default)
WL IN H 5 V (ON)
ON
OFF
1 2 3 4 5 6 7 8
1: GND (Default: OFF)
2: KP OUT L (Default: OFF)
3: RECO H (Default: ON)
4: ETRREC H (Default: OFF)
5: GND (Default: OFF)
6: KP OUT H (Default: OFF)
7: RECO L (ON)
8: ETRREC L (Default: OFF)
LINEAR AMP (Default setting)
Low frequency
S1-5: ON, S1-6: OFF
High frequency
S2-5: ON, S2-6: OFF
LOG AMP
Low frequency
S1-5: OFF, S1-6: ON
High frequency
S2-5: OFF, S2-6: ON
ETR-2D, ETR-3D, ETR-5D/2, ETR-10D/2, EX-7
EXT-H (9 pin ... GND)
S3-1: ON, S3-2: OFF
EXT-L (9 pin ... GND)
S3-5: ON, S3:6, OFF
Note: Do not turn ON S3-1 and S3-2 or S3-5
and S3-6 together. This will short a circuit board.
DIP switch settings on EXIF Board for log amp
