6
Earth
Fasten the copper strap (supplied) between the
earth terminal on the display unit and the ship’s
superstructure.
2.2 Connection of Optional Equipment
Navigator
Use cable type MJ-A6SPF0011/0012 (option) to connect a navigator (GPS, etc.) to the
NMEA connector at the rear of the display unit. For details, see the interconnection dia-
gram at the end of this manual.
Water temperature sensor (T-02MSB, T-02MTB, T-03MSB)
Connect the water temperature sensor to the TEMP connector at the rear of the display
unit.
Note: The navigator and the water temperature sensor use the same type of connector.
Be sure not to confuse them when connecting.
Net Sonde FNZ-18
Use connector type FM14-8P (optional supply) and 5-twisted pair cable type CO-SPEVV-
SB-CO 0.2X5P (optional supply). Attach the connector to the cable as below. Connect the
cable between the CIF port on the display unit of the FNZ-18 and the SONDE connector at
the rear of the display unit. Be sure the shield of the interconnection cable lies in the cable
clamp of the connector (both FNZ-18 and FCV-1500/M). (Analog sonde signal and sonde
temperature are also available. For details see the interconnection diagram at the end of
this manual and the installation manual of the FNZ-18.)
4. Tape shield with vinyl tape.
(Be sure no gap exists
between clamp and tape.)
2. Fold back the shield onto
the cable; cut unused cores.
Vinyl tape
3. Solder cores to connector
pins; clamp shield.
1. Remove sheath
by 15 mm.

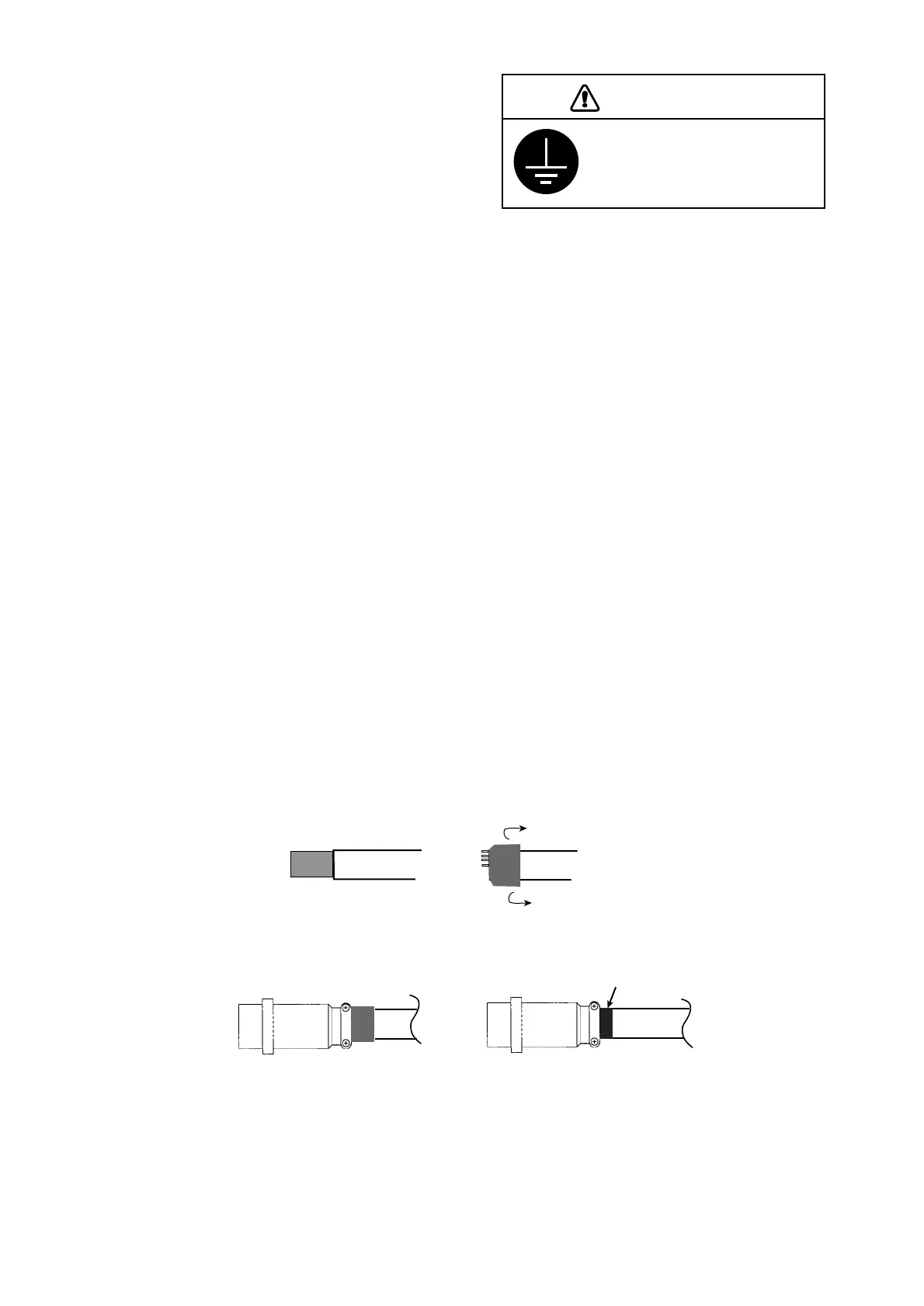

Figure 2-5 How to attach FM14-8P connector
Ground the equipment to
prevent electrical shock
and mutual interference.
CAUTION
To Next Page
