4. INSTALLATION
33

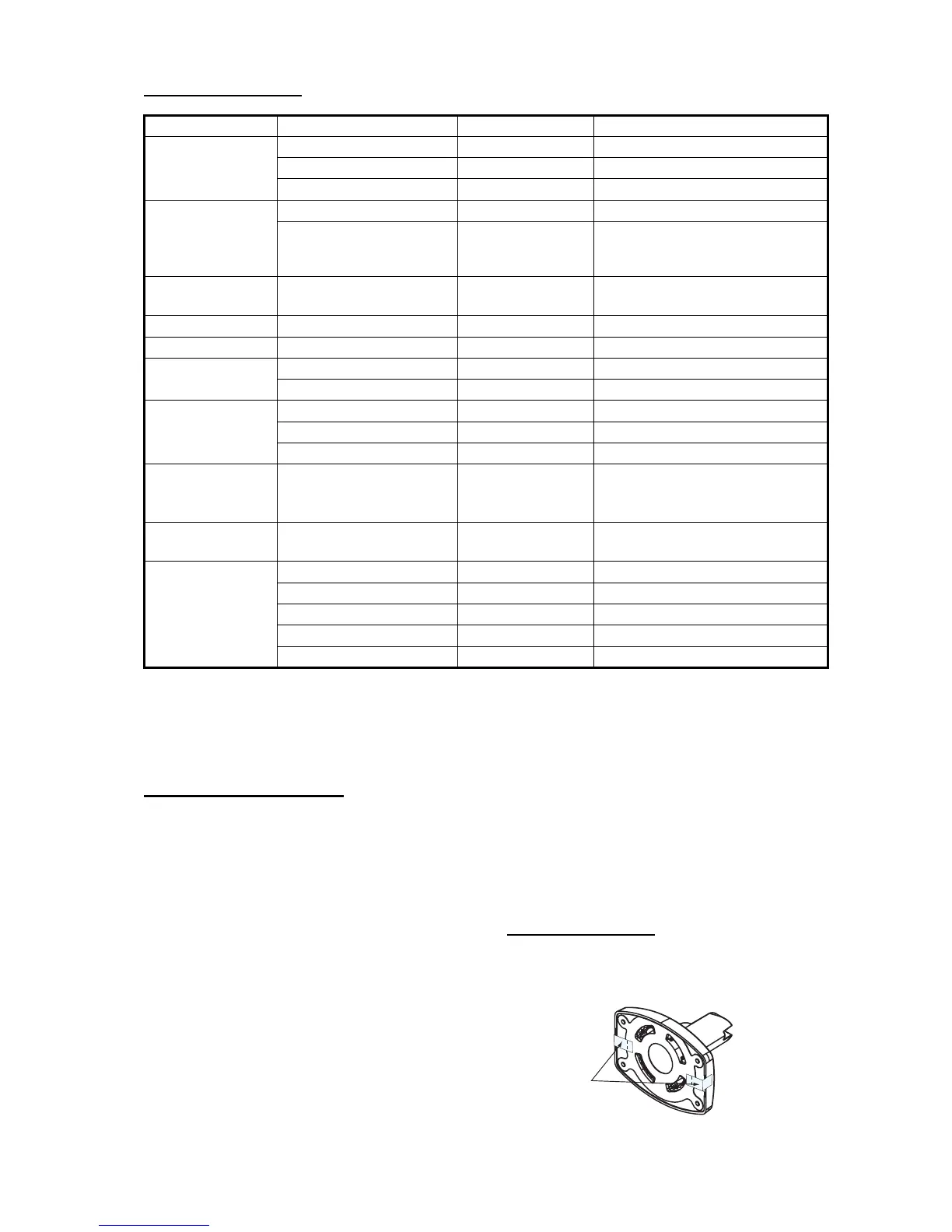

Optional equipment
* WIth ACCU-FISH
TM
, bottom discrimination display support.
4.2 Display Unit
Mounting considerations
The display unit can be installed on a desktop,
or flush mounted in a console. When choos-
ing a location keep the following in mind:
• Locate the unit away from the air from air
conditioners.
• The operating temperature range is 5°F to
131°F.
• Locate the unit away from devices that emit
active gas.
• The mounting location must be well venti-
lated.
• Select a location where vibration and shock
are minimal.
• Select a location out of direct sunlight. Pro-
longed exposure to direct sunlight can
cause LCD blackout.
• A magnetic compass will be affected if the
display unit is placed too close to the com-
pass. Observe the compass safe distances
in the safety instructions to prevent distur-
bance to the compass.
Desktop mounting
1. Remove the tape from the bottom of the
bracket assembly.
Bottom of the bracket
Name Type Code No. Remarks
Transducer
520-5PSD* 000-015-204 Thru-hull mount, plastic
520-5MSD* 000-015-212 Thru-hull mount, metal
525-5PWD* 000-146-966-01 Transom mount, plastic
Triducer (trans-
ducer with speed/
temperature sen-
sor)
525STID-MSD* 000-011-783 Thru-hull mount, metal
525STID-PWD* 000-011-784 Transom mount, plastic
Converter Cable
Assy.
02S4147-1 000-141-082 Speed sensor, Speed/ Temper-
ature sensor
Cable Assy. KON-004-02M 001-090-910 2 m
Cable Assy. MJ-A7SPM0001-005+R 000-169-364-10 0.5 m, for Tankenmaru
Speed/ Temper-
ature Sensor
ST-02MSB 000-137-986-01 Thru-hull type, metal
ST-02PSB 000-137-987-01 Thru-hull type, plastic
Temperature
Sensor
T-02MTB 000-040-026 Transom mount, 8 m cable
T-02MSB 000-040-040 Thru-hull type
T-03MSB 000-040-027 Thru-hull type, 8 m cable
Inside Hull Kit S 22S0191-2 000-802-598 w/installation instructions, not
available with bottom discrimina-
tion display.
Matching Box MB-1100 000-041-353 For FCV-587, connection to
1 kW transducer
Transducer (for
FCV-587)
50B-6 000-015-042 10 m, 1 kW
50B-6B 000-015-043 15 m, 1 kW
200B-5S 000-015-029 10 m, 1 kW
50/200-1T* 000-015-170 10 m, 1 kW
50/200-12M* 000-015-171 10 m, 1 kW
Tape
(FCV-627 only)
