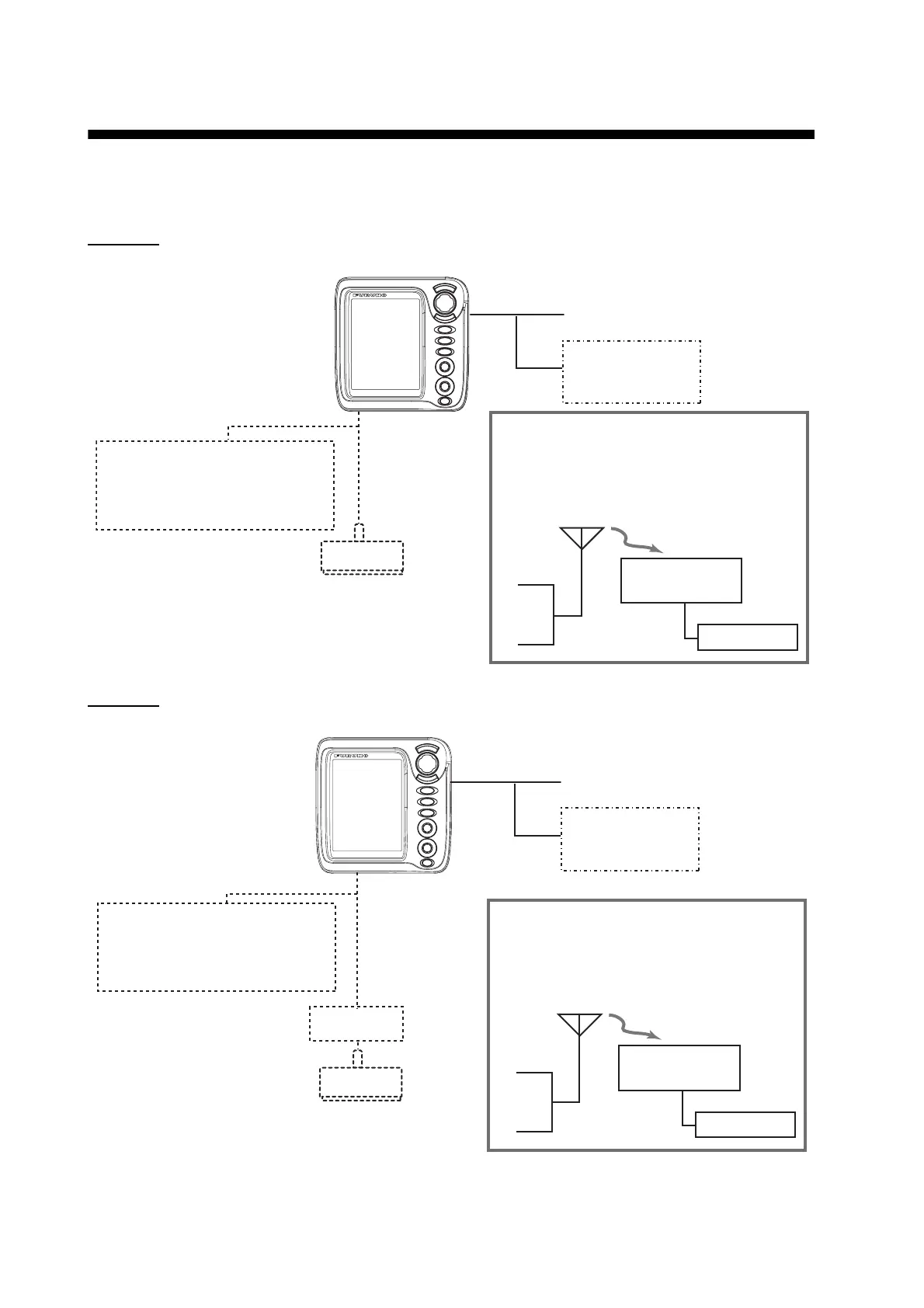

SYSTEM CONFIGURATION
Solid lines, standard equipment; dashed lines, optional equipment, and dot-dash lines, local sup-
ply. For wiring, see the interconnection diagram at the back of this manual.
FCV-627
FCV-587
DISPLAY UNIT
CV-627-E
Water temperature/speed sensor
ST-02MSB, ST-02PSB
Water temperature sensor
T-04MSB,T-04MTB
Transducer
12-24 VDC
GPS Navigator
External Equipment
Radio Transmitter*
* Radio transmitter of
SHIMANO INC.
SHIMANO INC.
make display unit
FCV-627
Display
Unit
Tankenmaru System
Electric Reel
520-5PSD, 520-5MSD, 520-PLD,
525-5PWD, 525T-PWD, 525T-BSD,
525T-LTD/12, 525T-LTD/20,
525STID-MSD, 525STID-PWD,
SS60-SLTD/12, SS60-SLTD/20
DISPLAY UNIT
CV-587-E
12-24 VDC
*
1
: Radio transmitter
of SHIMANO INC.
SHIMANO INC.
make display unit
FCV-587
Display
Unit
Tankenmaru System
Electric Reel
Matching Box
MB-1100*
2
Transducer
*
2
: 50B-6, 50B-6B, 200B-5S,
50/200-1T, 50/200-12M
(For connection to 1 kW
transducer)
(option)
GPS Navigator
External Equipment
Radio Transmitter*
1
520-5PSD, 520-5MSD, 520-PLD,
525-5PWD, 525T-PWD, 525T-BSD,
525T-LTD/12, 525T-LTD/20,
525STID-MSD, 525STID-PWD,
SS60-SLTD/12, SS60-SLTD/20,
526TID-HDD
Water temperature/speed sensor
ST-02MSB, ST-02PSB
Water temperature sensor
T-04MSB, T-04MTB
