4. INSTALLATION
48
Order of priority
Output data sentences
*Available with connection of applicable sen-
sor or navaid.
4.10 Adjustments after
Installation
Language

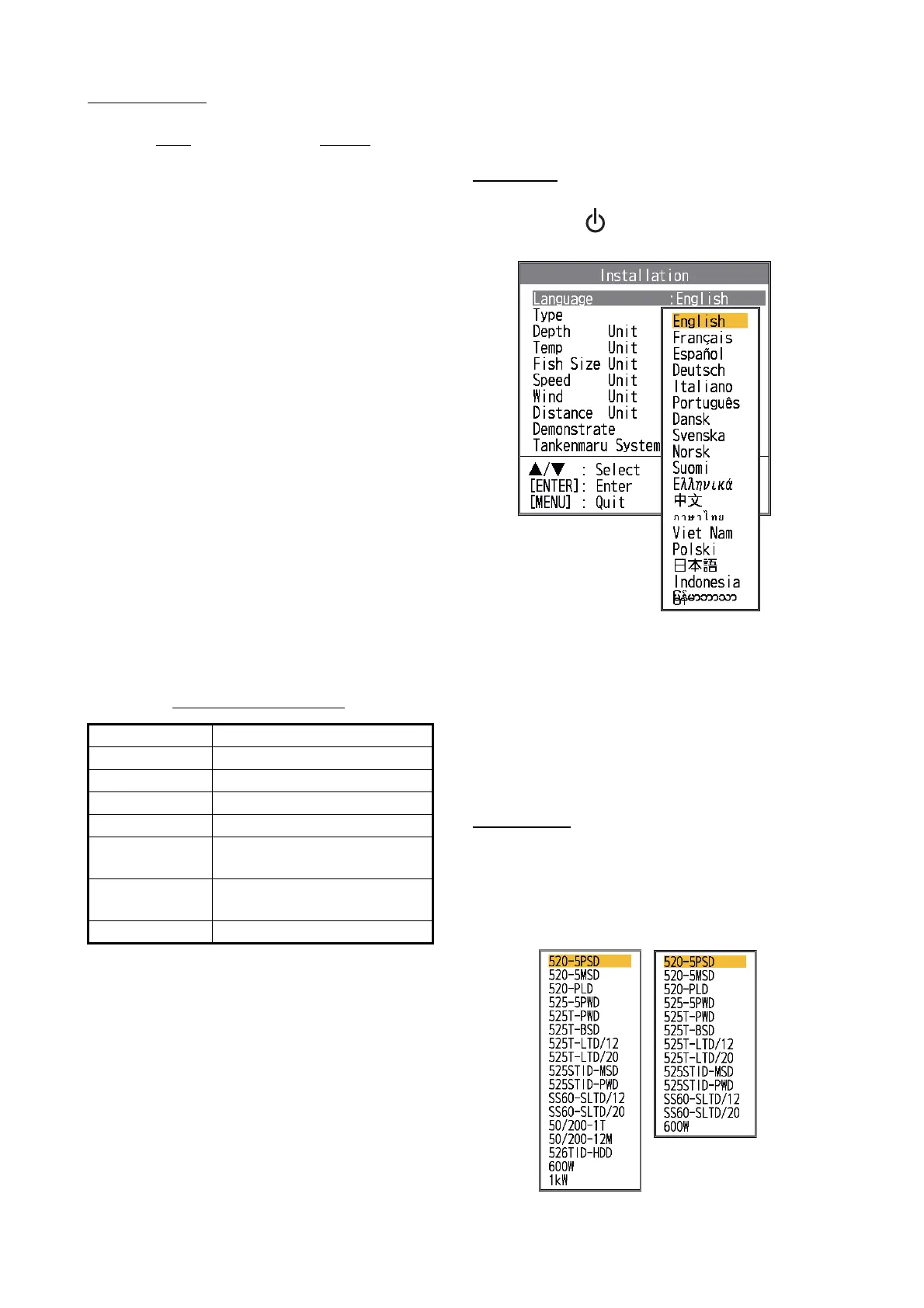

1. Press the /BRILL key to show the
[Installation] menu.
2. Select your language and press the EN-
TER key. The units for depth, water tem-
perature, fish length, ship speed, wind
speed and distance are set according to
the language selected.
Continue the procedure to select the
transducer, and set up the Tankenmaru
system and NMEA port.
Transducer
If you have the transducer 525STID-MSD or
525STID-PWD, skip this procedure.
1. Select [Type] from the [Installation] menu
and press the ENTER key.
Data Priority
Latitude/Longitude: GNS>GGA>RMC>
RMA>GLL
Course (true): VTG>RMC>RMA
Course (magnetic): VTG
Ground speed: VTG>RMC>RMA
Water speed: VHW
Distance to waypoint: BWC>RMB
Bearing to waypoint
(true):
BWC>RMB
Bearing to waypoint
(magnetic):
BWC
Heading (true): HDT>VHW
Heading (magnetic): HDG>VHW
Cross track error: XTE>RMB
Atmospheric pressure: MDA
Water temperature: MTW
Wind speed and
angle (true/apparent):
MWV
Sentence Meaning
DBS Depth from sea surface
DBT Depth below transducer
DPT Depth
MTW* Water temperature
RMB* Recommended minimum
navigation information
TLL* Target position, output by
MARK key.
VHW* Speed through the water
FCV-587
FCV-627
