1. OPERATION
21
1.21 Menu Description
This section describes menu items not previ-
ously mentioned. For the [System] menu, see
chapter 2.

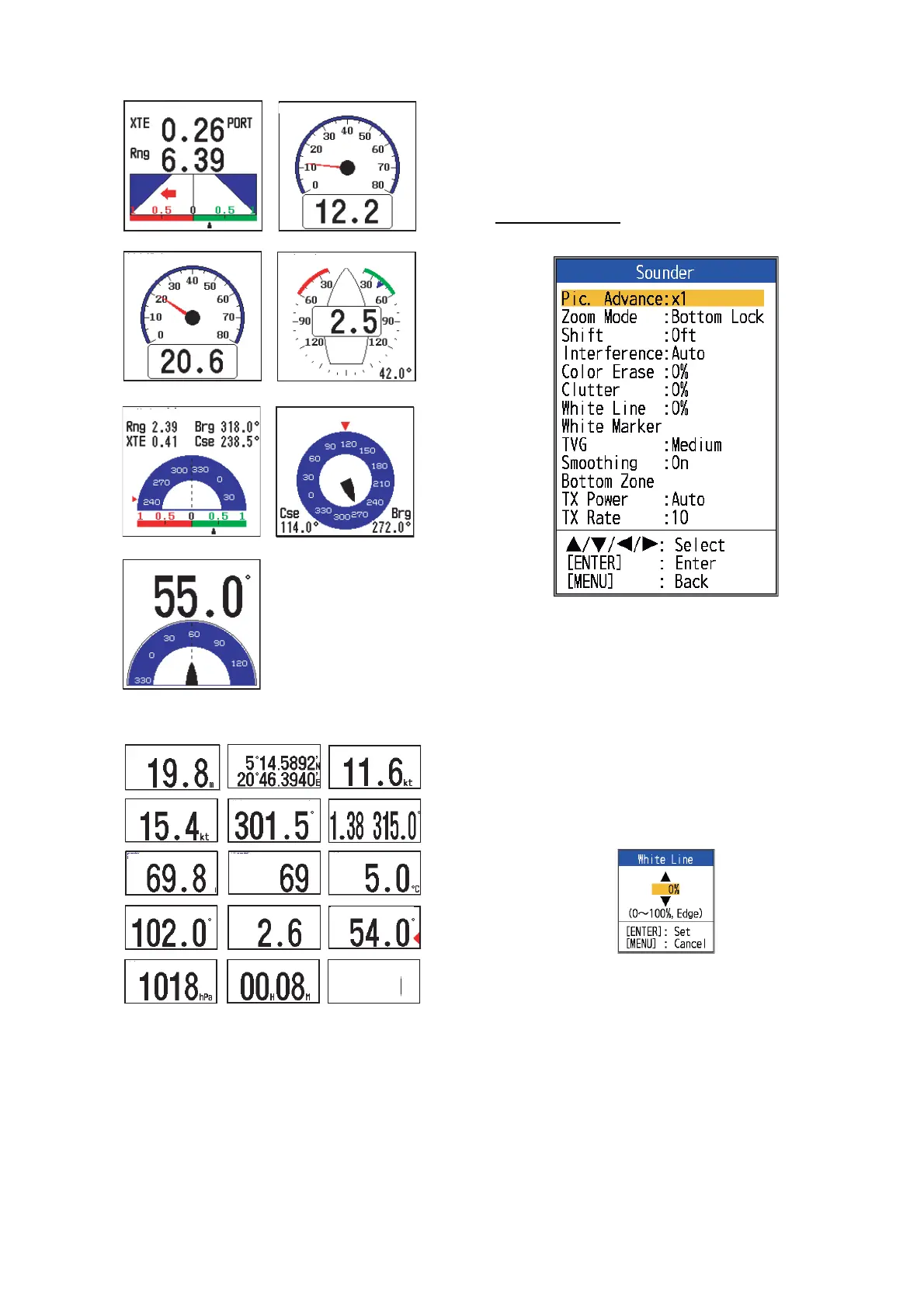

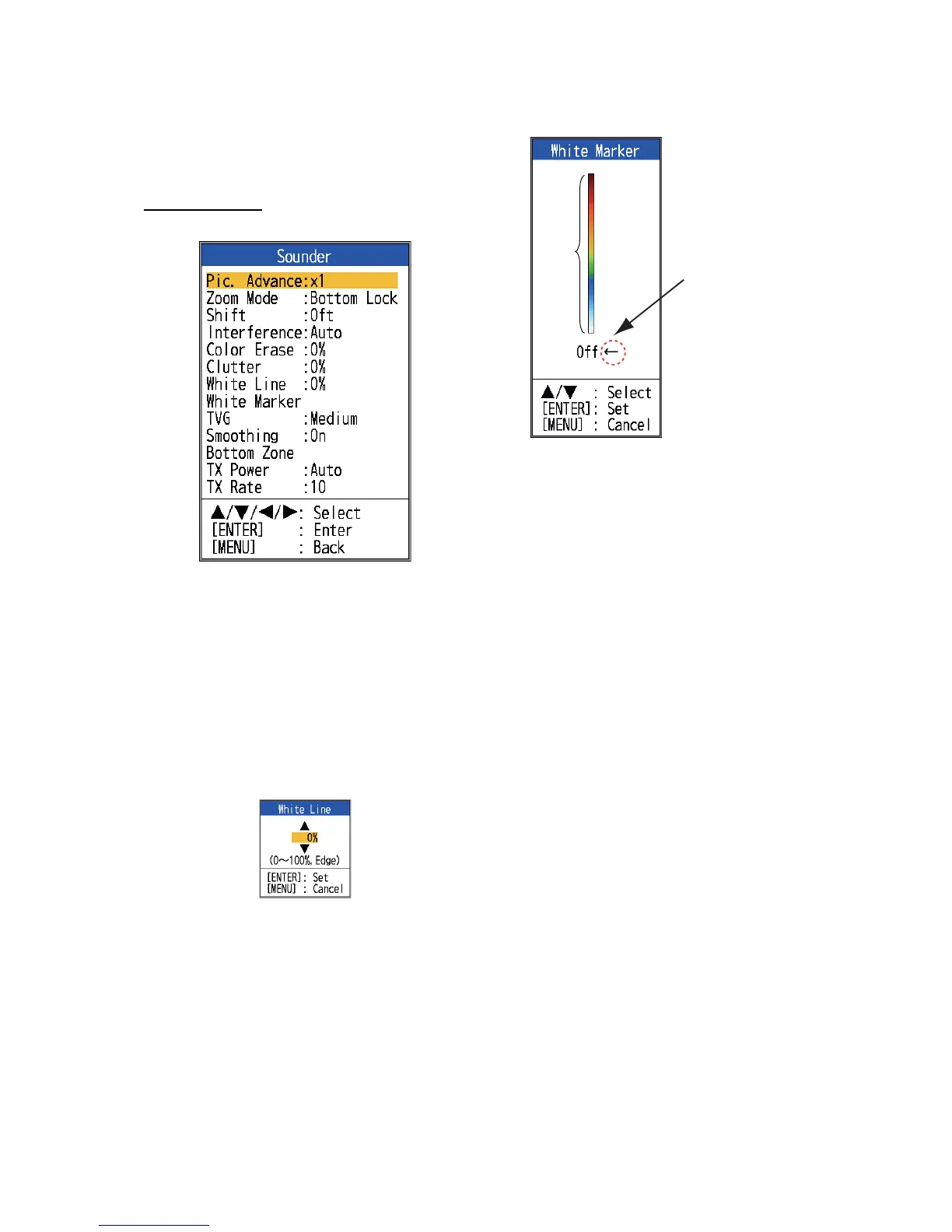

Sounder menu
[Zoom Mode]: Select the zoom display (bot-
tom lock, bottom zoom and marker zoom) to
show when "ZOOM" is selected with the
MODE knob. For details, see page 3 and 4.
[White Line]: Display the leading edge of the
bottom echo in white to help you distinguish
bottom fish from the bottom echo.
1) Select [White Line] and press the ENTER
key.
2) Set the width. The larger the number the
greater the width of the line. Select [Edge]
to show the contour of the bottom in white.
3) Press the ENTER key.
[White Marker]: Display the selected echo
color in white.
WPT
XTE: Cross-track error
Rng: Range to WPT
Brg: Bearing to WPT
Cse: Course
STBD: Starboard
PORT: Port
STBD

01
Cross-track error
Speed over the ground
Speed thru the water
Wind speed and direction
Destination WPT
Bearing
Heading
NM
NM
kn
NM
NM
m/s
XTE 01
SPEED (SOG)
SPEED (STW)
WIND True(or Apparent)
WPT COMPASS True(or Mag)
HEADING True(or Rel)
: Starboard, : Port
* Wind speed and direction
True: Wind speed and direction when boat is
anchored.
Relative: Wind speed and direction when
boat is in motion.
Note: [- -] appears when respective data is
not received for 30 seconds.
kn
kn
DEPTH
POSITION
SPEED (SOG)
SPEED (STW)
COURSE True
NM
RNG/BRG
TRIP METER
ODOMETER
TEMP
HEADING True
WIND SPEED True*
WIND DIR. True*
BAROM PRESS
TIME TO GO
0 . 25
STBD
NM
XTE 01
NM NM
m/s
