1. INITIAL SETTING AND ADJUSTMENT
1-16

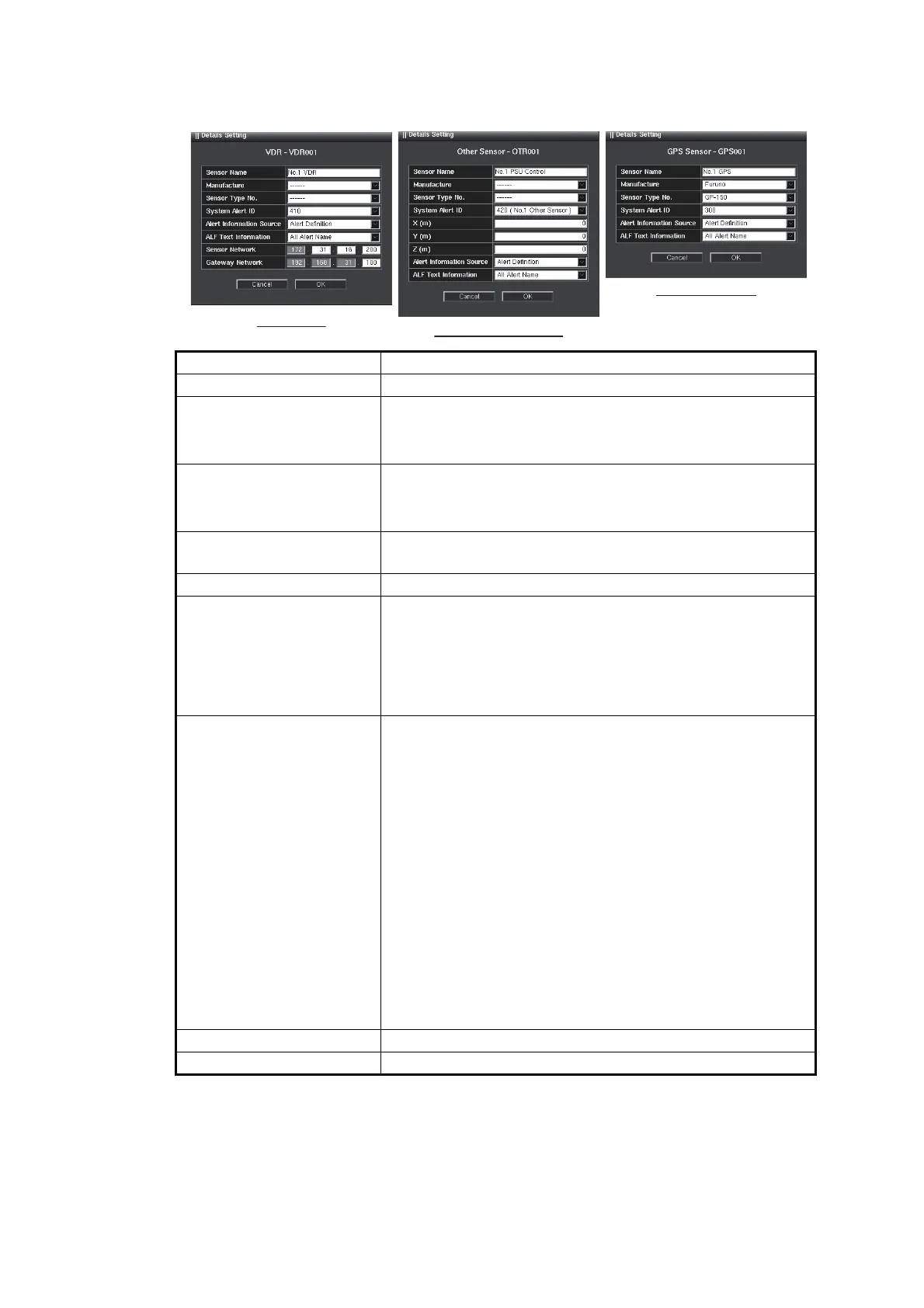

5. Click the [Details] button to set the following items, referring to the table shown be-
low.
6. Set [Gyro Sensor], [ROT GYRO Sensor], [AIS Transponder], [Echo Sounder],
[SDME Sensor], [NAVTEX Receiver], [Water Temperature], [Wind Sensor], [Mag-
net Compass Sensor], [Current Sensor], [Rudder Sensor], [HCS], [VDR], [BN-
WAS], and [Other Sensor] in a similar manner.
Note 1: Only sensors connected to the processor unit should be set. For the Chart
Radar, the default sensor unit settings are as follows.
Item Remarks
[Sensor Name] Enter the appropriate sensor name.
[Manufacture] Select the manufacturer of sensor from the pull-down list.
Note: If the required manufacturer does not appear, add it
manually (see section 1.4.9).
[Sensor Type No.] Select the type of sensor from the pull-down list.
Note: If the required type does not appear, add it manually
(see section 1.4.9).
[System Alert ID] The identification number that is assigned in the system is
shown in this field. Do not change the setting.
[X (m)], [Y (m)], [Z (m)] Set the location of X, Y and Z for [Other Sensor] only.
[Alert Information Source] Set the source of alert definition to show on the display
when the alert message is received in an ALF sentence.
• [Alert Definition]: Show the alert definition registered to
the processor unit.
• [Alert Sentence]: Show the alert definition included in the
ALF sentence.
[ALF Text Information] Select the type of the 2/2 packet text information of ALF
sentence.
• [All Alert Name]: Select this item if all alert text is includ-
ed in the 2/2 packet of the ALF sentence. The text infor-
mation on the 2/2 packet of the ALF sentence is shown
as the alert name in the alert list/log.
• [Remaining Alert Name]: Select this item if the alert text
is divided in 1/2 and 2/2 packets of the ALF sentence.
The text information for both the 1/2 and 2/2 packets of
the ALF sentence is shown as the alert name in the alert
list/log.
• [Decision Support]: Select this item if the alert details in-
formation (Decision Support) is included in the 2/2 pack-
et of the ALF sentence. The text information for the 2/2
packet of the ALF sentence is shown as the alert details
in the alert list/log.
[Sensor Network] Set the IP address of sensor network for [VDR] only.
[Gateway Network] Set the IP address of gateway network for [VDR] only.
For [Other Sensor]
For [VDR]
For other units
To Next Page
