1. INITIAL SETTING AND ADJUSTMENT
1-26
1.4.4 Sensor Adapter configuration
A maximum of eight Sensor Adapter MC-3000S can be connected to the sensor net-
work. In case of the redundant configuration, sixteen Sensor Adapters can be con-
nected to the network. The MC-3000S can connect a max. ten additional units (MC-
3010A/3020D/MC-3030D). Note that a maximum of five MC-3010A can be connected
to MC-3000S.
1. Click [Sensor Adapter] on the menu bar.
2. Check the check box of [MCV001] to activate.

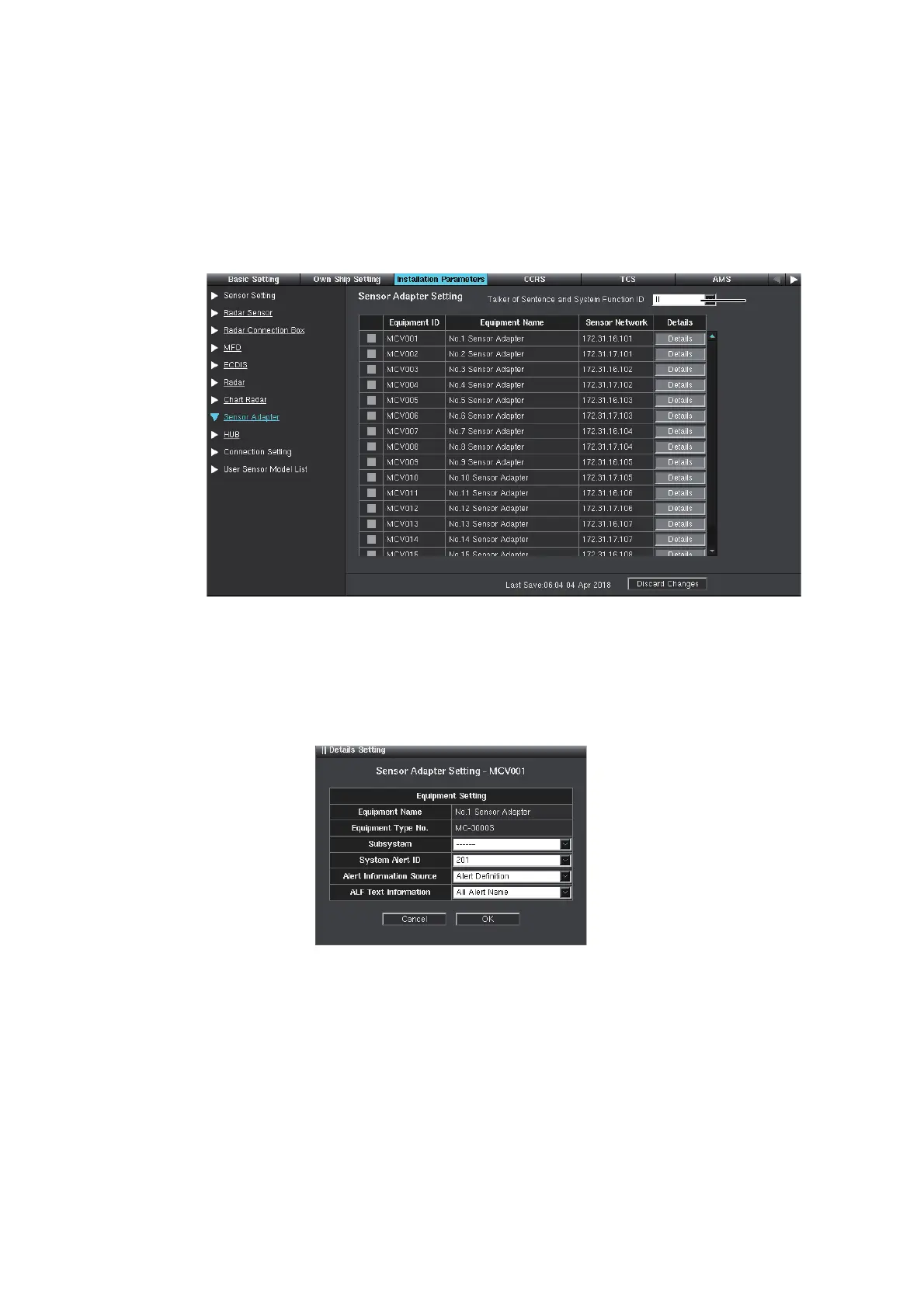

3. Click [Details] to display the window as shown below. For the descriptions of the
each items, see step 3 of section 1.4.2.
4. Click [No.1 Sensor Adapter] on the menu bar.
The Sensor Adapter consists of four sub units: [Serial Input/Output], [Digital Input]*,
[Digital Output]*, and [Analog Input]*.
*: Not shown when you access the MC-3000S directly. Access the EC-3000 to ad-
just the setting for digital input, digital output and analog input.
*
*: Select the talker ID for sentences output from the Sensor Adapter (II or SI).
Normally, keep the default setting ("II"). Select "SI", only when the talker ID must be
changed.
