2. HOW TO SETUP THE MENU
10
*: If settings which have not yet been applied to the SATELLITE COMPASS
™
exist, the following con-
firmation message appears. Click the
[No] button to close the message, then apply the settings.

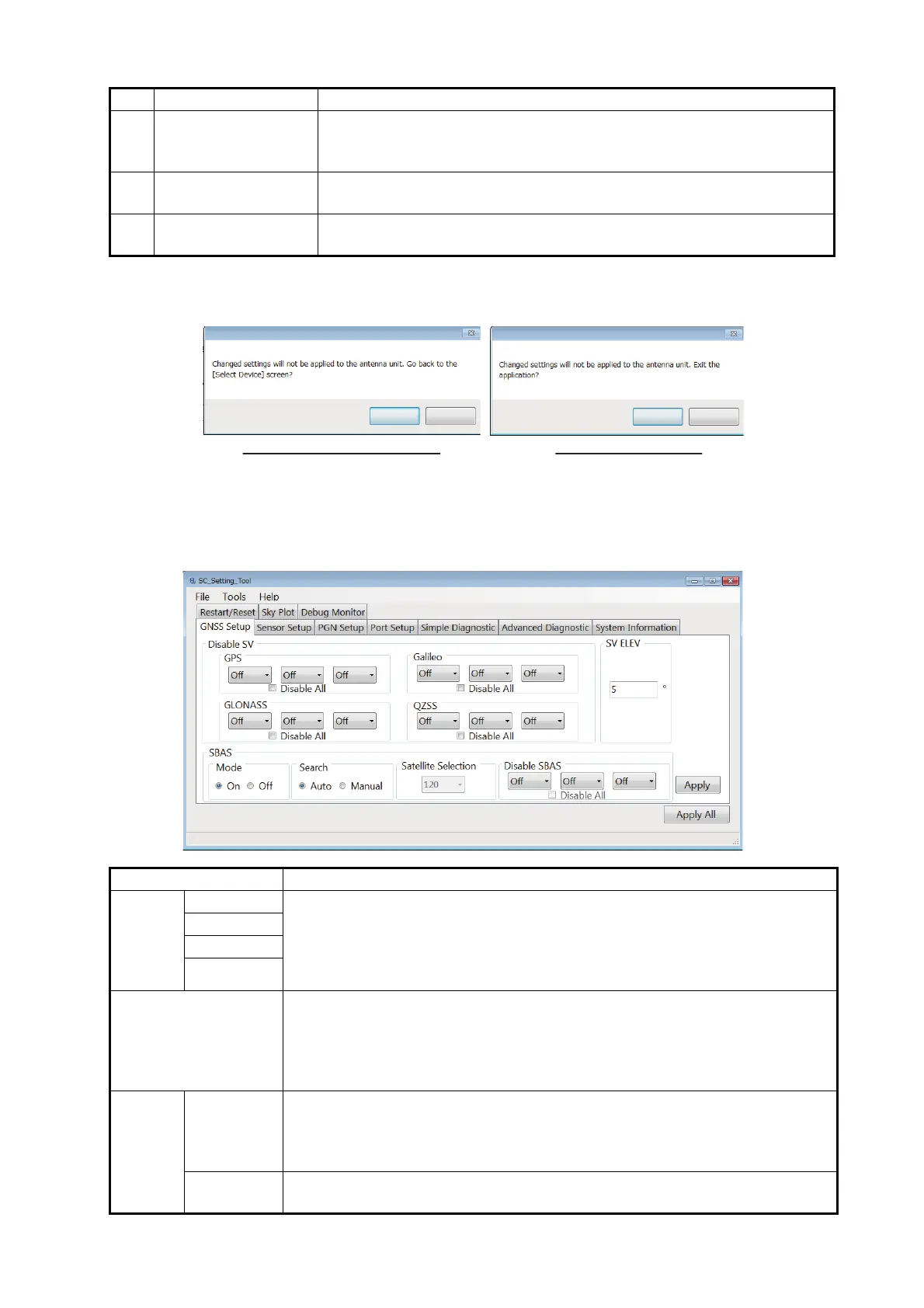

2.2 [GNSS Setup] Tab
You can disable (ignore) satellites and adjust the elevation mask from the [GNSS Setup] tab.
4 [Apply] button Click this button to apply the settings on the currently displayed tab.
The [Apply] and [Apply All] buttons are grayed out while applying the
settings.
5 [Apply All] button Click this button to apply the settings on all tabs. The [Apply] and [Ap-
ply All] buttons are grayed out while applying the settings.
6 Guidance Show the operational guidance for the menu item selected with the
cursor.
Menu Item Remarks
Disable
SV
GPS You can ignore satellites by specifying the satellite number with each posi-
tioning system (GPS, GLONASS, Galileo, QZSS). A maximum of three sat-
ellites can be registered to be ignored. When you check the [Disable All]
checkbox, all satellites of the selected positioning system are ignored. In this
case, the drop down list for selecting the satellite number is grayed out.
GLONASS
Galileo
QZSS
SV ELEV Adjust the elevation mask angle. This equipment does not track satellites
with an elevation angle lower than the angle set here. A higher elevation
mask angle increases the positioning accuracy, but the number of the avail-
able satellites may be decreased and the equipment may not be able to ob-
tain an accurate position fix.
SBAS Mode* Enable/disable correction from SBAS (Satellite-based Augmentation Sys-
tem).
• [On]: Enable correction from SBAS.
• [Off]: Disable correction from SBAS.
Search* Select [Auto] to search automatically for SBAS satellites, or [Manual] to
manually input the SBAS satellite number.
No. Name Remarks
When [Disconnect] is clicked When [Exit] is clicked
Yes No
Yes No
To Next Page
