Garmin G100 Pilot’s Guide for the Piper PA-32 Saratoga
80
FLIGHT INSTRUMENTS
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICESINDEX

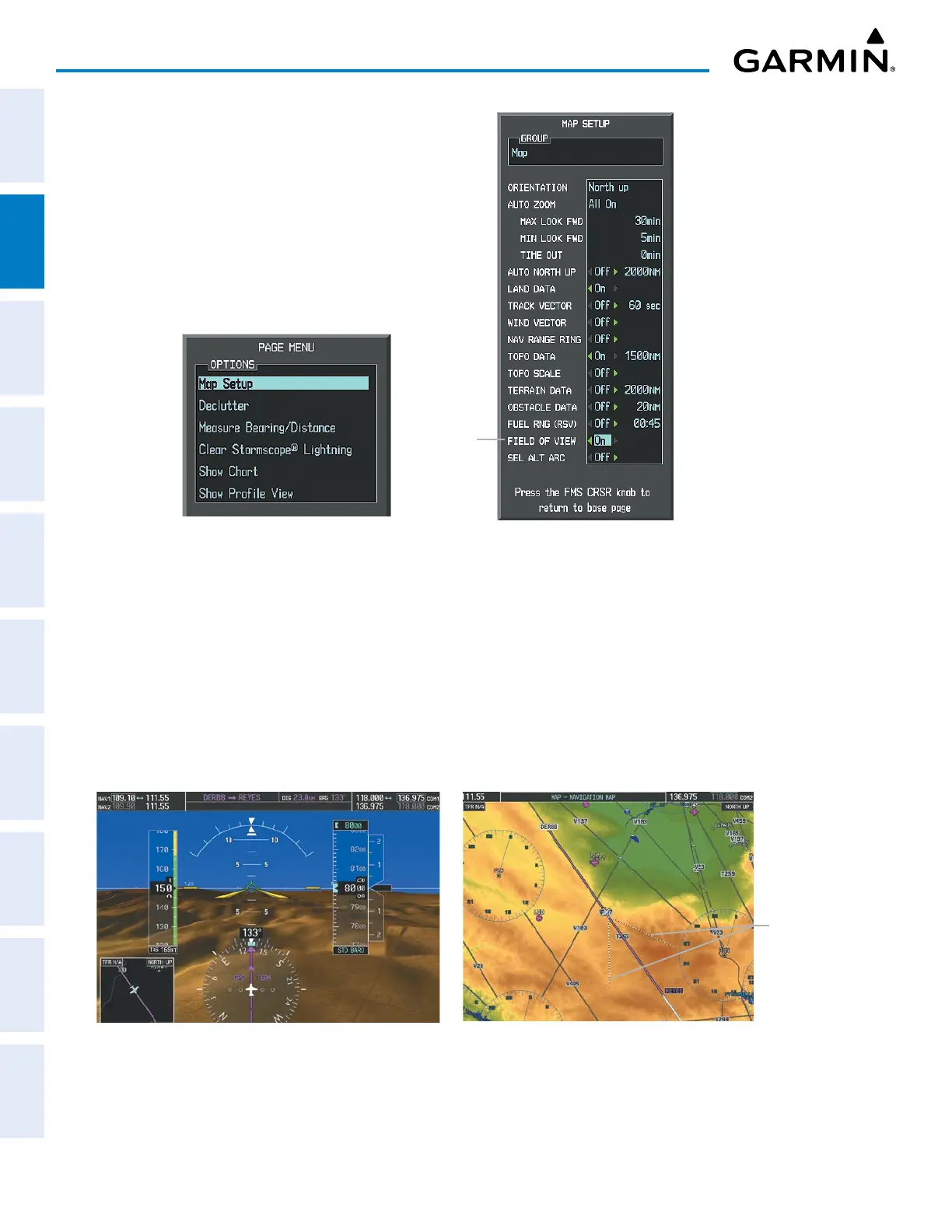

Figure 2-41 Option Menus
MAP – NAVIGATION MAP Page
OPTIONS Menu
MAP SETUP Menu, Map Group, FIELD OF VIEW Option
Field of
View
3) Turn the FMS Knob to select ‘Map’ in the GROUP Box and press the ENT Key.
4) Turn the large FMS Knob to scroll through the Map Group fields to FIELD OF VIEW.
5) Turn the small FMS Knob to select On or Off.
6) Push the FMS Knob to return to the MAP – NAVIGATION MAP Page.
The following figure compares the PFD forward looking depiction with the MFD Plan View and FIELD OF
VIEW turned on.
Figure 2-42 PFD and MFD Field of View Comparison
Lines
Depict PFD
Field of
View
SVT View on the PFD
Field of View on the MFD
