5.8 PROCEDURES
The system can access the whole range of instrument procedures available. Departures (DPs), arrivals (STARs),
and non-precision and precision approaches (APPRs) are stored within the database and can be loaded using the
PROC Key.
The selected procedure for the departure or arrival airport is added to the active flight plan. No waypoints are
required to be in the active flight plan to load procedures; however, if the departure and arrival airport are already
loaded, the procedure loading window defaults to the appropriate airport, saving some time selecting the correct
airport on the Procedure Loading Page. Whenever an approach is selected, the choice to either “load” or “activate”
is given. “Loading” adds the approach to the end of the flight plan without immediately using it for navigation
guidance. This allows continued navigation via the intermediate waypoints in the original flight plan, but keeps
the procedure available on the Active Flight Plan Page for quick activation when needed. “Activating” also adds
the procedure to the end of the flight plan but immediately begins to provide guidance to the first waypoint in
the approach.
The system adds terminal procedures to the flight plan based on leg types coded within that procedure in the
navigation database. If the procedure in the flight plan contains an identifier like ‘2000ft’, that indicates a leg that
terminates when the specified altitude (2000 feet) has been exceeded. A heading leg in the flight plan displays
‘hdg’ preceding the DTK (e.g. ‘hdg 008°’). A flight plan leg requiring the pilot to manually initiate sequencing to
the next leg displays ‘MANSEQ’ as the identifier.

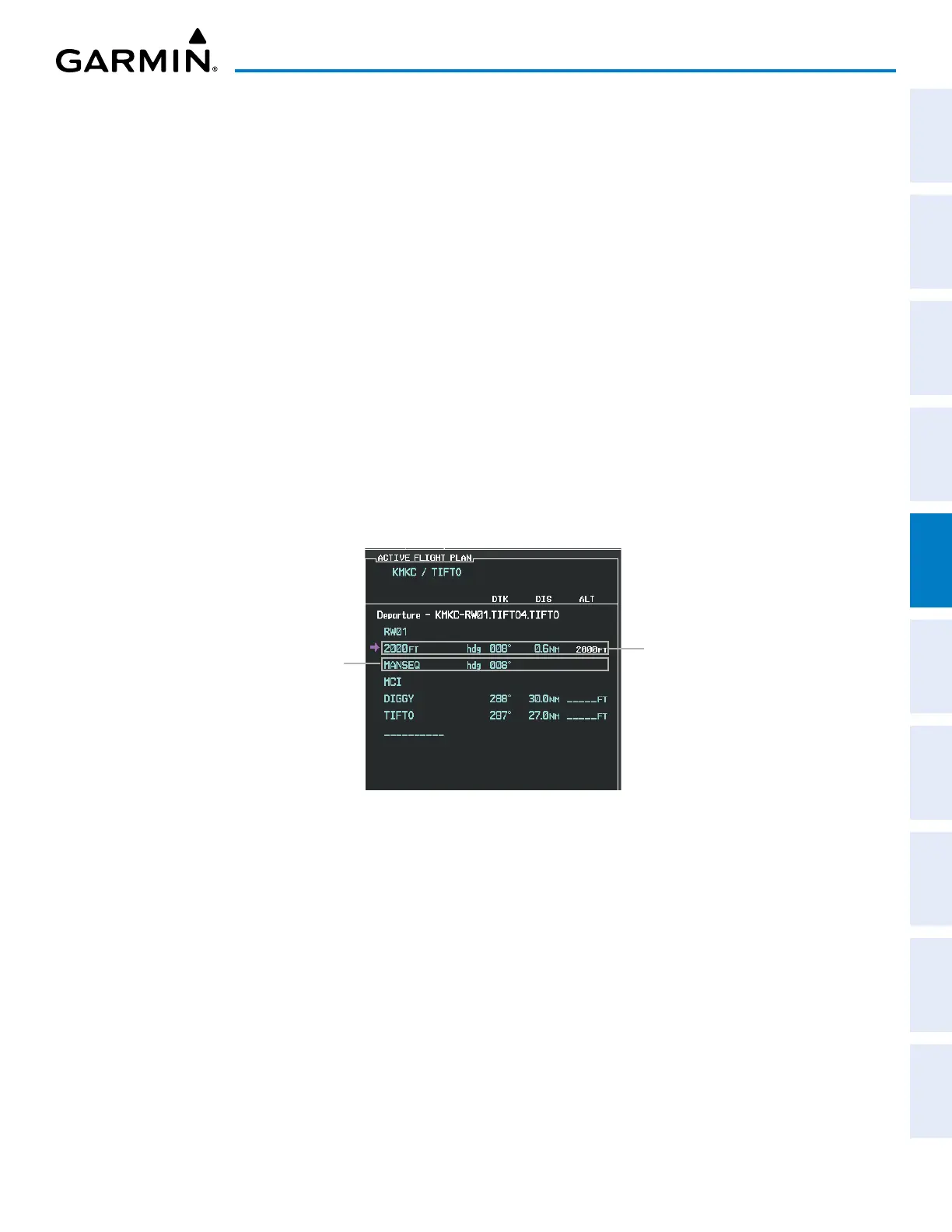

Figure 5-74 Procedure Leg Identifiers
Heading Leg Terminating at the
Specified AltitudeManually Sequenced Heading Leg
Viewing available procedures at an airport:
1) From the WPT – AIRPORT INFORMATION Page (INFO-1 Softkey):
Press the DP Softkey. The WPT – DEPARTURE INFORMATION Page is displayed, defaulting to the airport
displayed on the WPT – AIRPORT INFORMATION Page.
Or:
Press the STAR Softkey. The WPT – ARRIVAL INFORMATION Page is displayed, defaulting to the airport displayed
on the WPT – AIRPORT INFORMATION Page.
Or:
Press the APR Softkey. The WPT – APPROACH INFORMATION Page is displayed, defaulting to the airport
displayed on the WPT – AIRPORT INFORMATION Page.
