190-02692-00 Rev. AGarmin G1000 Pilot’s Guide for the Piper PA-32 Saratoga118
AUDIO PANEL AND CNS
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICESINDEX
3) Adjust the volume level with the NAV VOL/ID Knob.
4) Push the NAV VOL/ID Knob to turn the Morse code identifier audio on and off.

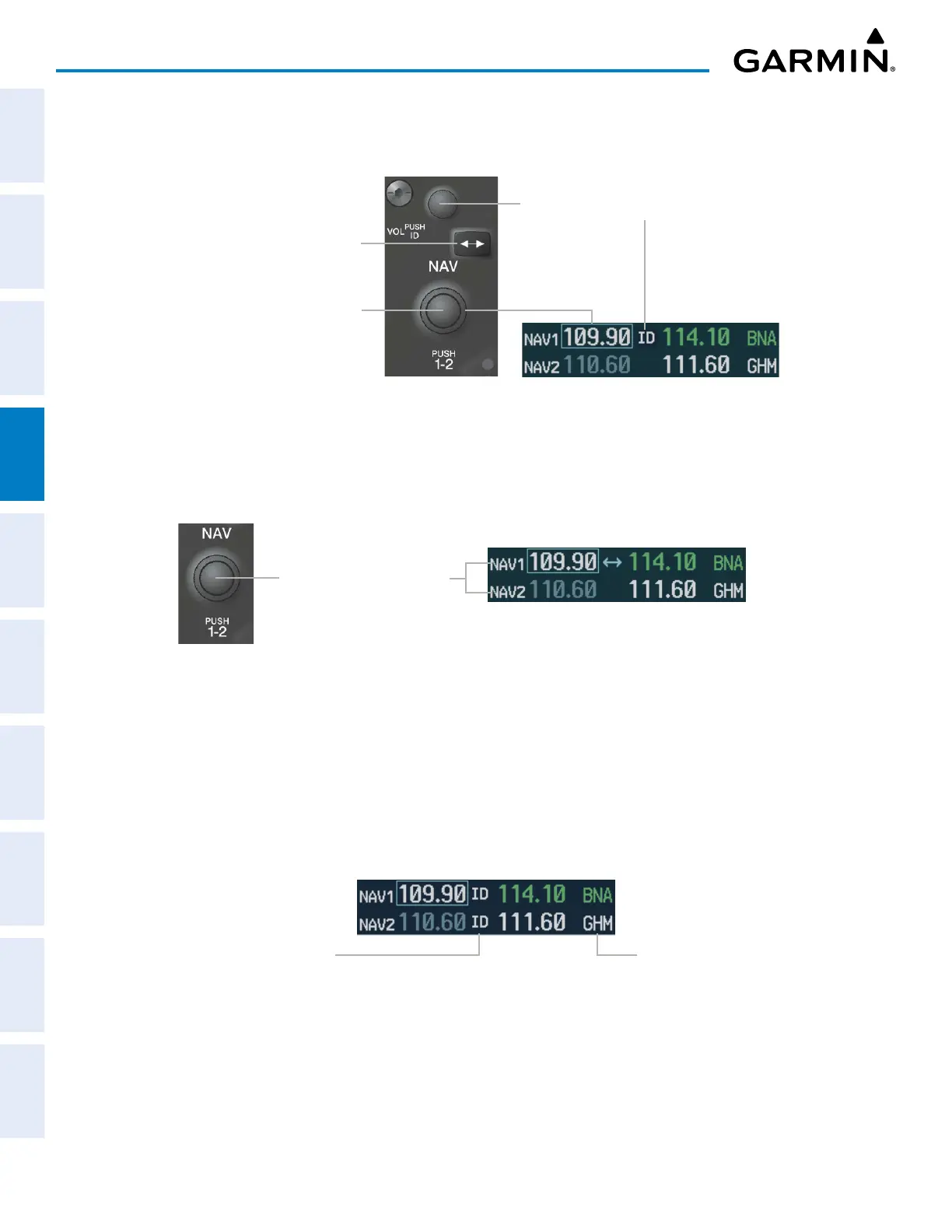

Figure 4-18 NAV Frequency Tuning
Press the Frequency Transfer Key to
transfer frequencies between Active and
Standby Frequency Fields
Turn the NAV Knob to tune the
frequency in the Tuning Box
Push Knob to turn Morse Code audio on/off.
White ID symbol appears when audio selected.
SELECTING THE RADIO TO BE TUNED
Push the small NAV Knob to transfer the frequency tuning box and Frequency Transfer Arrow between the
upper and lower radio frequency fields.
Figure 4-19 Switching NAV Tuning Boxes
Push the NAV Knob to switch
the Tuning Box from one NAV
radio to the other
VOR/LOC ID
When the Morse code Identifier audio is on for a NAV radio, a white ID appears to the left of the active
NAV frequency.
In the example shown, in order to listen to either station identifier, press the NAV1 or NAV2 Key on the
audio panel. Pushing the VOL/ID Knob turns off the Morse code audio only in the radio with the NAV
Tuning Box. To turn off both NAV IDs, transfer the NAV Tuning Box between NAV1 and NAV2 with the small
NAV Knob and push the VOL/ID Knob again to turn the Morse code off in the other radio.
Figure 4-20 NAV Radio ID Indication
The Morse Code Identifier for
the GHM VOR is on
Station
Identifier
