MANUAL ON MODE
On Mode can be selected at any time by pressing the On Softkey. An On indication will appear in the
mode field of the Transponder Data Box. Selecting On mode enables transmission of transponder replies and
squitters, but transmissions will not include altitude information. The On indication and transponder code
in the Transponder Data Box will appear green while airborne and white while on the ground. When the
transponder is operating with an air state of on-ground it will disable replies to Mode A, Mode C, and Mode
S all-call interrogations so the aircraft will not show up on the traffic systems of other aircraft.

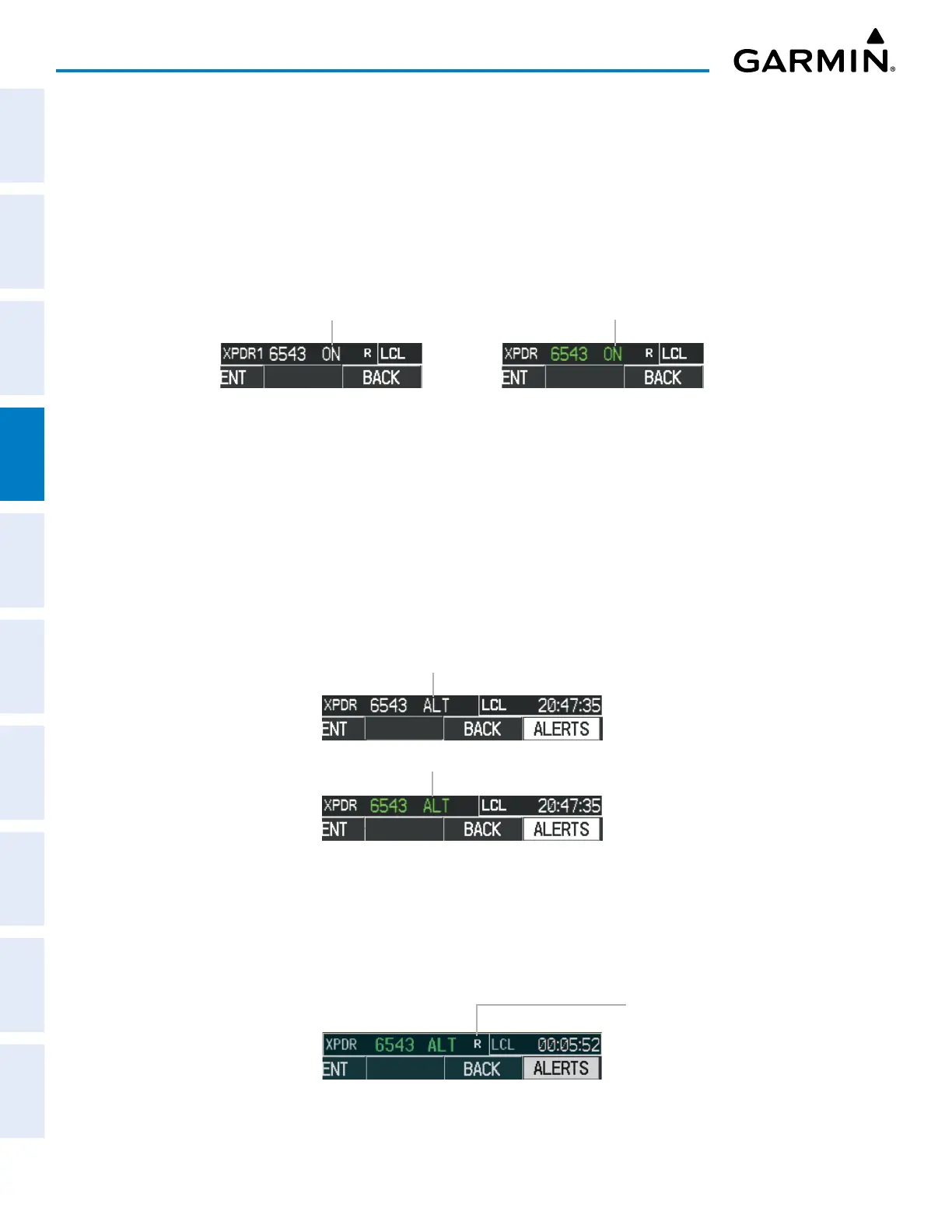

Figure 4-34 ON Mode
Airborne ON Mode
(No altitude reporting)
On-Ground ON Mode
(No altitude reporting)
ALTITUDE MODE
ALT Mode can be selected at any time by pressing the ALT Softkey. When ALT mode is selected,
an ALT indication will appear in the mode field of the Transponder Data Box. Selecting ALT mode enables
transmission of transponder replies and squitters. Transmissions will include pressure altitude information.
The ALT indication and transponder code in the Transponder Data Box will appear green while airborne and
white while on the ground. When the transponder is operating with an air state of on-ground it will disable
replies to Mode A, Mode C, and Mode S all-call interrogations so the aircraft will not show up on the traffic
systems of other aircraft.
Figure 4-35 Altitude Mode
On-Ground ALT Mode
Airborne ALT Mode
REPLY STATUS
When the transponder sends replies to interrogations, a white R indication appears momentarily in the
reply status field of the Transponder Data Box.
Reply to
Interrogation
Figure 4-36 Reply Indication
