Garmin G1000 Pilot’s Guide for the Piper PA-32 Saratoga
3
SYSTEM OVERVIEW
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
GDU 1040
(PFD)
#1 GIA 63W
(Integrated
Avionics Unit)
VHF COM
GPS/SBAS
VOR/LOC
G/S
System
Integration
Micro-
processors
#2 GIA 63W
(Integrated
Avionics Unit)
VHF COM
GPS/SBAS
VOR/LOC
G/S
System
Integration
Micro
processors
GDU 1040
(MFD)
Non-Garmin Equipment
GMA 1347
(Audio
Panel)
GDC 74A
(Air Data
Computer)
GRS 77
(Attitude & Heading
Reference System)
Optional
Garmin Equipment
Optional
Non-Garmin Equipment
GMU 44
(Magnetometer)
Garmin Equipment
KR 87
(ADF)
KN 63
(DME)
GTX 345R
(Transponder)
GEA 71
(Engine/Airframe Unit)
GDL 69A SXM
(Datalink
Receiver)
L-3 Skywatch
(Trac
Advisory)
WX-500
Stormscope
S-TEC System
Fifty Five X
(Autopilot)

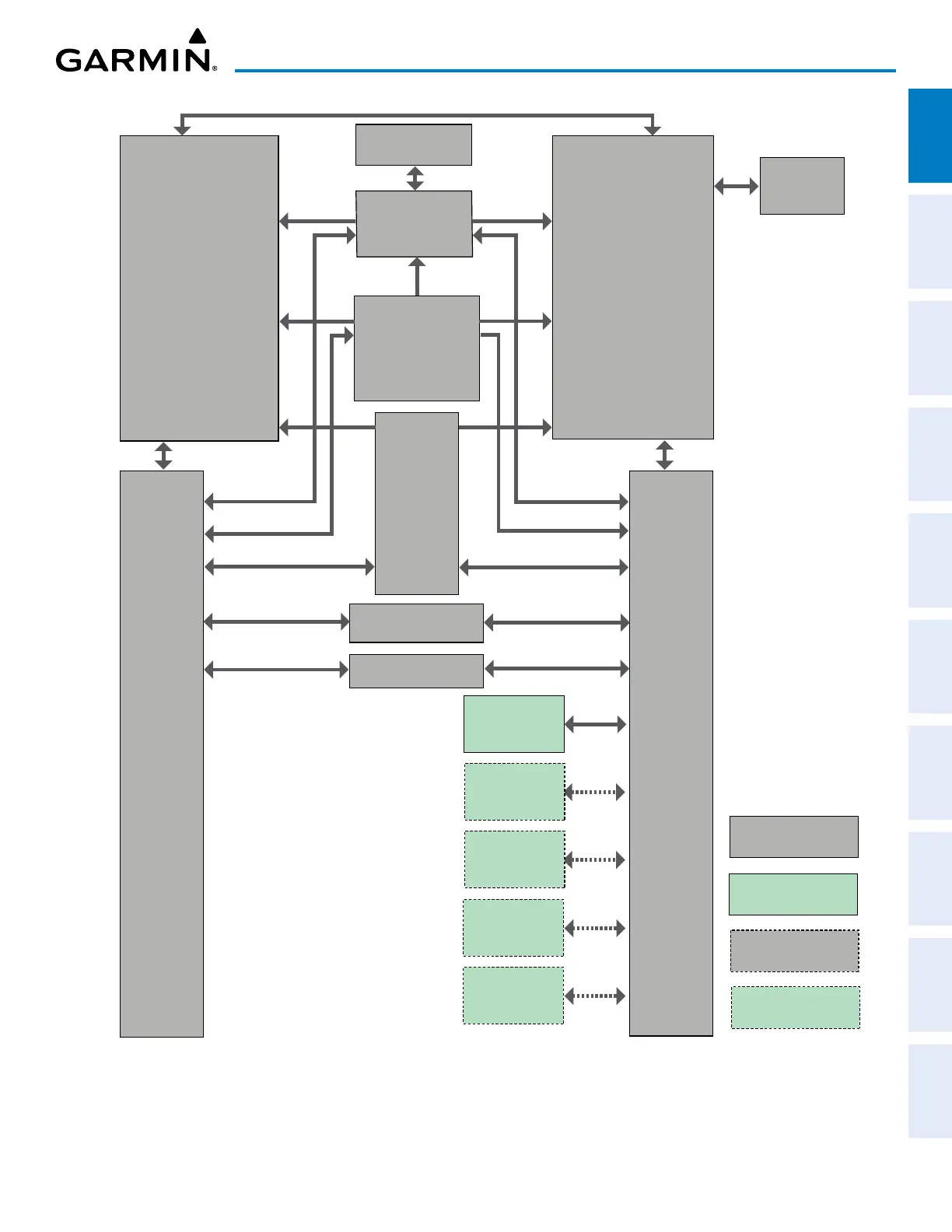

Figure 1-1 Basic System Block Diagram
