190-02692-00 Rev. A
Garmin G1000 Pilot’s Guide for the Piper PA-32 Saratoga 315
HAZARD AVOIDANCE
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
Showing/hiding aviation information on the MAP - TERRAIN PROXIMITY Page:
1) Press the MENU Key.
2) Select ‘Show Aviation Data’ or ‘Hide Aviation Data’ (choice dependent on current state) and press the ENT Key.

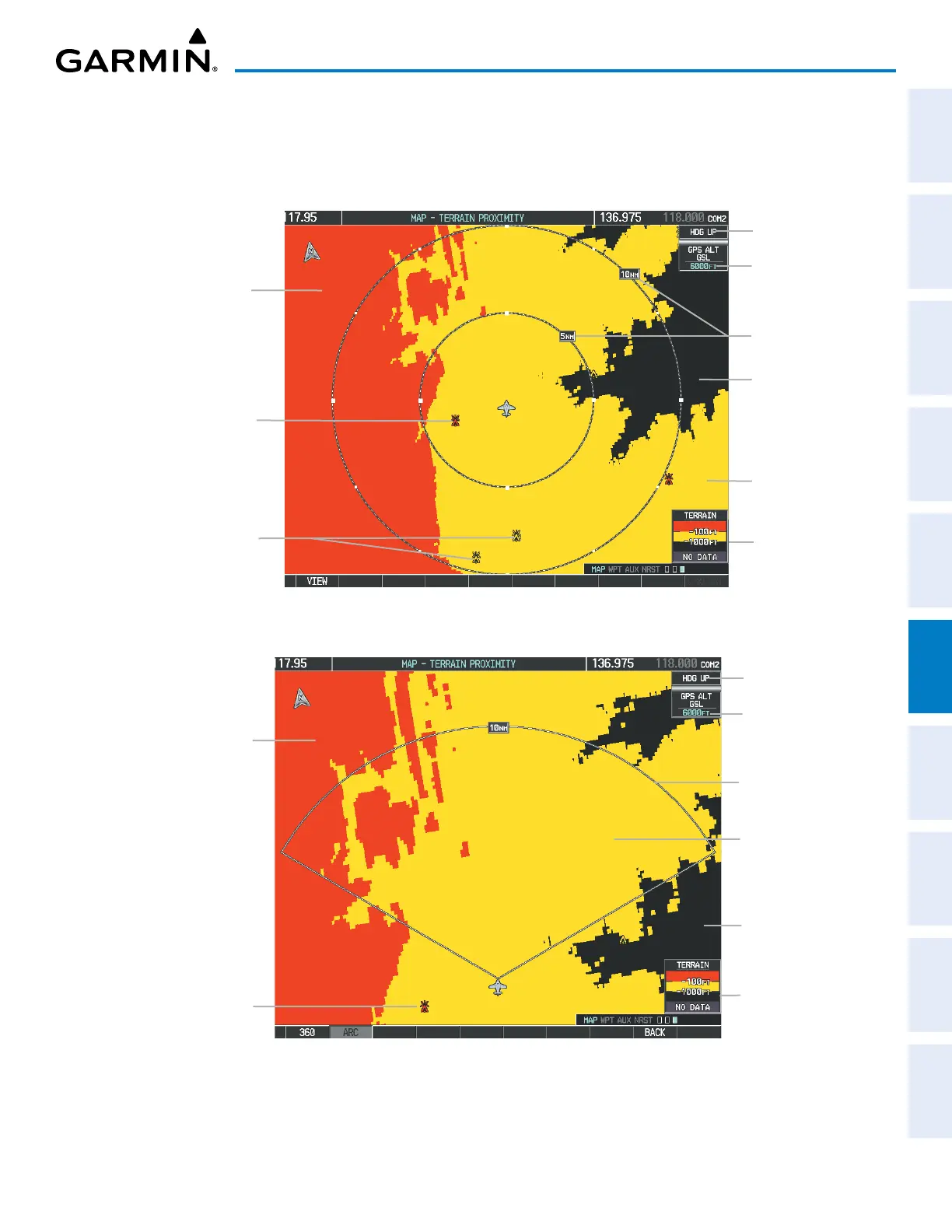

Figure 6-55 MAP - TERRAIN PROXIMITY Page
Yellow Terrain
(Between 100’ and
1000’ Below the
Aircraft Altitude)
Terrain Legend
Map Range Rings
Map Orientation
Current Aircraft
GPS-derived GSL
Altitude
Red Terrain
(Above or Within
100’ Below the
Aircraft Altitude)
Black Terrain
(More than 1000’
Below the Aircraft
Altitude)
Red Lighted Obstacle
(Above or Within 100’
Below Aircraft Altitude)
Yellow Lighted Obstacles
(Between 100’ and 1000’
Below Aircraft Altitude)
Figure 6-56 MAP - TERRAIN PROXIMITY Page (ARC View)
Yellow Terrain
(Between 100’ and
1000’ Below the
Aircraft Altitude)
Red Terrain
(Above or Within 100’
Below the Aircraft
Altitude)
Black Terrain
(Terrain More than
1000’ Below the
Aircraft Altitude)
Map Range Arc
Terrain Legend
Map Orientation
Current Aircraft
GPS-derived GSL
Altitude
Red Lighted Obstacle
(Above or Within 100’
Below Aircraft Altitude)
