COM Knob
- Turn to tune COM transceiver standby frequencies (large knob for MHz; small for kHz)
- Press to toggle cyan tuning box between COM1 and COM2
- The selected COM (green) is controlled with the COM MIC Key (Audio Panel)
8
COM Frequency
Transfer Key
(EMERG)
- Transfers the standby and active COM frequencies
- Press and hold two seconds to tune the emergency frequency (121.5 MHz) automatically into
the active frequency field
9
COM VOL/SQ Knob
- Turn to control COM audio volume level (shown as a percentage in the COM Frequency Box)
- Press to turn the COM automatic squelch on/off
10
Direct-to Key ( )
- Activates the Direct-to function and allows the user to enter a destination waypoint and
establish a direct course to the selected destination (specified by identifier, chosen from the
active route)
11
FPL Key
- Displays flight plan information
12
CLR Key
(DFLT MAP)
- Erases information, cancels entries, or removes menus
- Press and hold to display the MAP – NAVIGATION MAP Page (MFD only)
13
MENU Key
- Displays a context-sensitive list of options for accessing additional features or making setting
changes
14
PROC Key
- Gives access to IFR departure procedures (DPs), arrival procedures (STARs), and approach
procedures (IAPs) for a flight plan or selected airport
15
ENT Key
- Validates/confirms selection or data entry
16
FMS Knob (Flight
Management System
Knob)
- Press to turn the selection cursor on/off
-
Data Entry:
With cursor on, turn to enter data in the highlighted field (large knob moves
cursor location; small knob selects character for highlighted cursor location)
-
Scrolling:
When a list of information is too long for the window or box, a scroll bar appears,
indicating more items to view; with cursor on, turn large knob to scroll through the list
-
Page Selection
: Turn knob on MFD to select the page to view (large knob selects a page
group; small knob selects a specific page from the group)
17
Softkey Selection
Keys
- Press to select softkey shown above the bezel key on the PFD/MFD display
18
ALT Knob
- Sets the Selected Altitude, shown above the Altimeter (the large knob selects the thousands,
the small knob selects the hundreds)
The NAV , CRS/BARO, COM, FMS, and ALT knobs are concentric dual knobs, each having a small (inner)
and large (outer) control portion. When a portion of the knob is not specified in the text, either may be used.
Large (Outer)
Knob
Small (Inner)
Knob

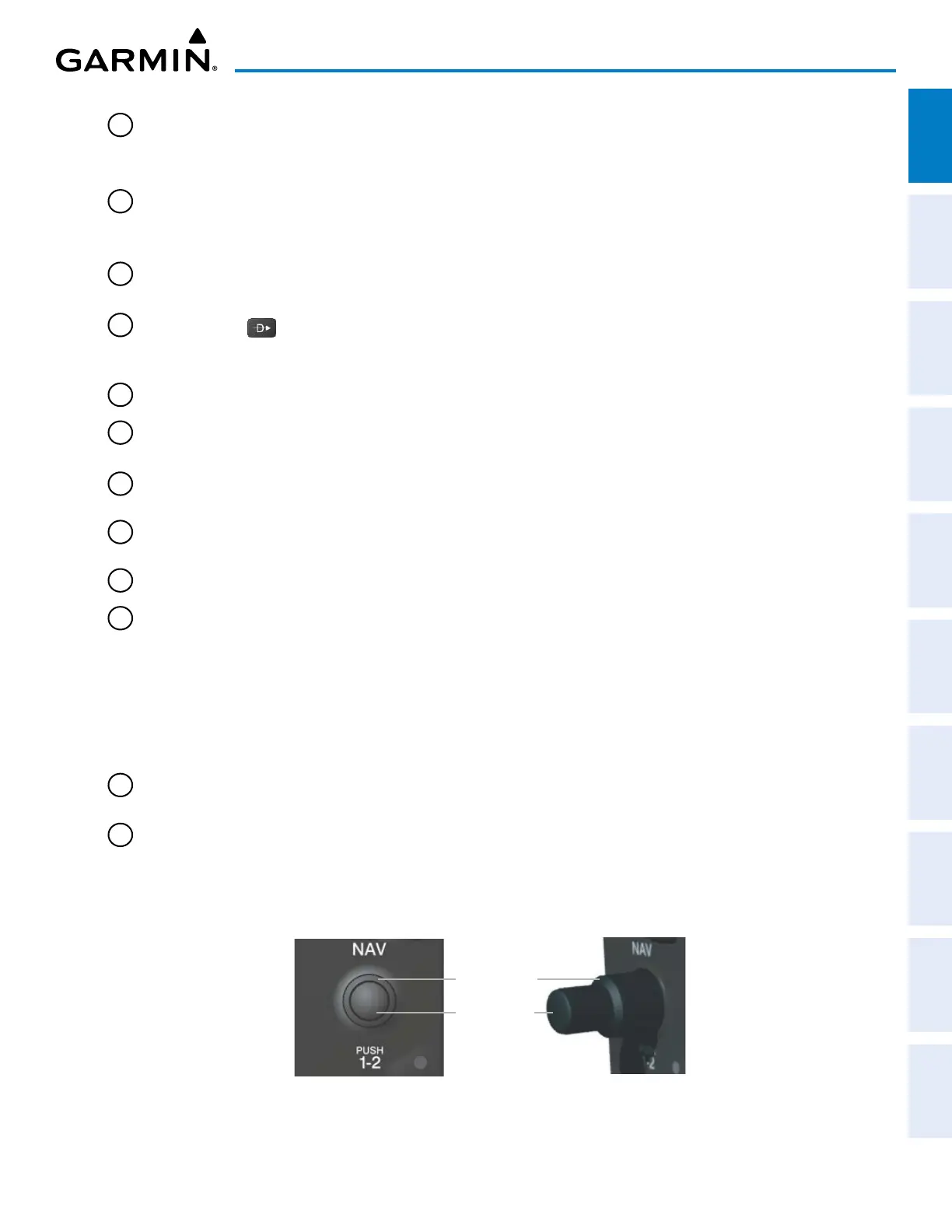

Figure 1-12 Dual Concentric Knob
