Traffic Status Banner
Annunciation
Description
TA OFF SCALE
A Traffic Advisory is outside the selected display range*.
Annunciation is removed when traffic comes within the selected display range.
TA X.X ± XX ↕
System cannot determine bearing of Traffic Advisory**.
Annunciation indicates distance in nm, altitude separation in hundreds of feet, and
altitude trend arrow (climbing/descending).
TRFC FAIL Traffic unit has failed (unit is self-reporting a failure or sending incorrectly formatted data)
NO TRFC DATA Data is not being received from the traffic unit
*Shown as symbol on MAP - TRAFFIC MAP Page
**Shown in center of MAP - TRAFFIC MAP Page
Table 6-35 Traffic Status Annunciations
Additional information about the status of ADS-B traffic products is available on the AUX - ADS-B STATUS
Page.
Viewing ADS-B Traffic Status:
1) Turn the large FMS Knob to select the AUX Page Group.
2) Turn the small FMS Knob to select the AUX - ADS-B STATUS Page.

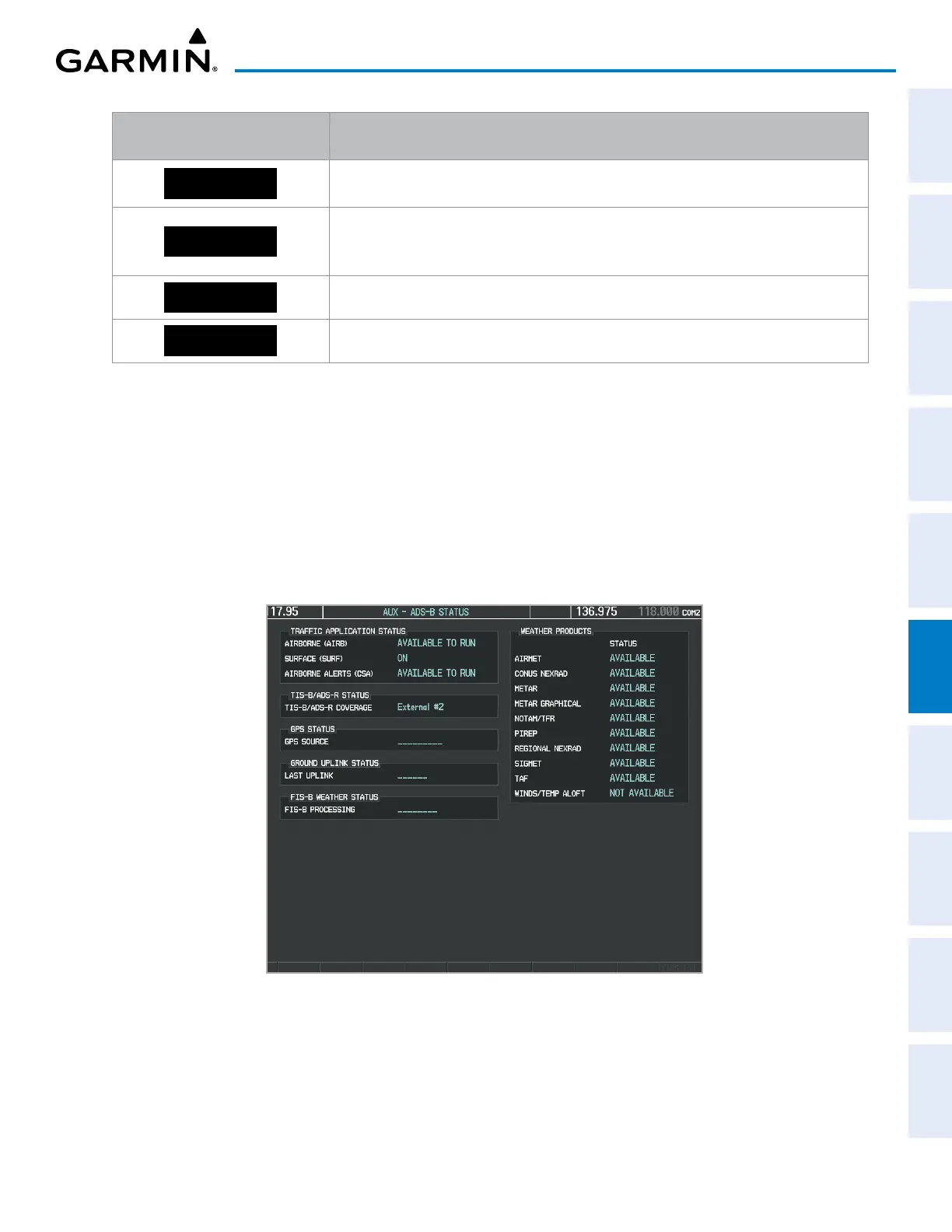

Figure 6-97 ADS-B Traffic Status on AUX - ADS-B STATUS Page
