190-01639-00 GSU 75 ADAHRS Installation Manual
Revision 6 Page A-1
APPENDIX A ASSEMBLY AND INSTALLATION DRAWINGS

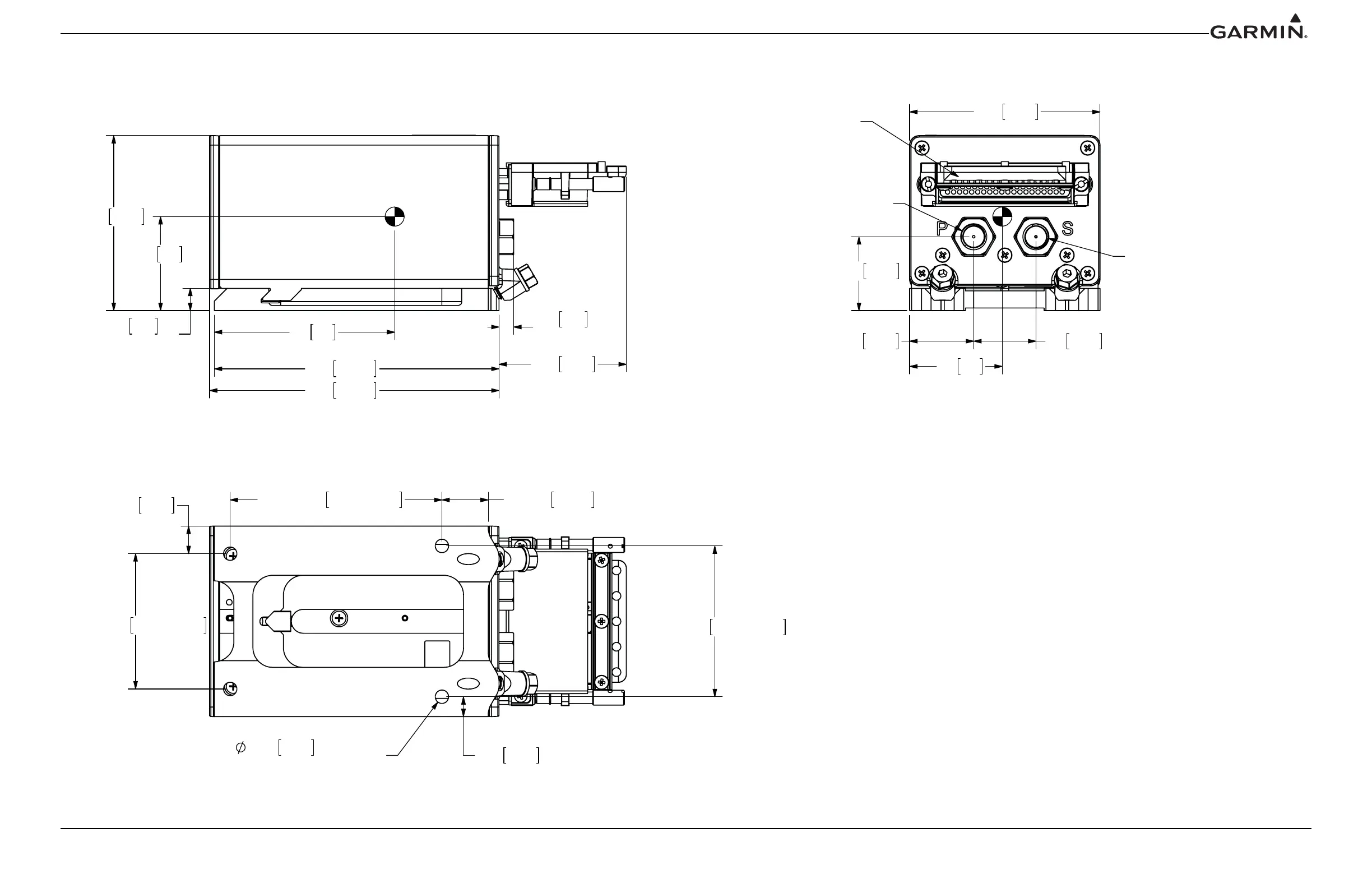

Figure A-1 GSU 75 Outline Drawing
.35 8.9
RACK HEIGHT
2.76 70.0
4.56
115.8
4.49
113.9
2.01 50.9
.23 5.8
2 PLACES
2.8
72
1.5
38
3.335±.010 84.71±0.25
2.130±.010 54.10±0.25
4X
.210
5.33
±.003[0.08]
SEE NOTE 3
2X .730
18.54
.44
11.0
2.375±.010 60.33±0.25
.313 7.94
3.00 76.2
2X 1.16
29.5
1.01 25.7
.98
24.9
1.5
37
PITOT AIR FITTING
1/8-27 ANPT FEMALE THREAD
STATIC AIR FITTING
1/8-27 ANPT FEMALE THREAD
P751
NOTES:
DIMENSIONS: INCHES[mm]. METRIC VALUES ARE FOR REFERENCE ONLY.
1.
DIMENSIONS ARE NOMINAL AND TOLERANCES ARE NOT IMPLIED UNLESS
2.
SPECIFICALLY STATED.
MOUNTING HOLES FOR #10 PAN HEAD OR HEX HEAD FASTENERS
3.
