GE MULTILIN 269 MOTOR MANAGEMENT RELAY Series User Manual

2 INSTALLATION
2-1
2.1 Physical Dimensions
The 269 relay is contained in a compact plastic and
metal housing with the keypad, display, and all
indicators located on the front panel. The physical
dimensions of the 269 unit are given in Figure 2.1.
GE Multilin also provides phase and ground fault CTs
if required. Dimensions for these are shown in Figure
2.2a, Figure 2.2b, Figure 2.2c, and Figure 2.2d.
Note
:
Dimensions of a are for 100:5 to 1000:5 phase CT's;
for the dimensions of 50:5 and 75:5 CT's, consult
factory.

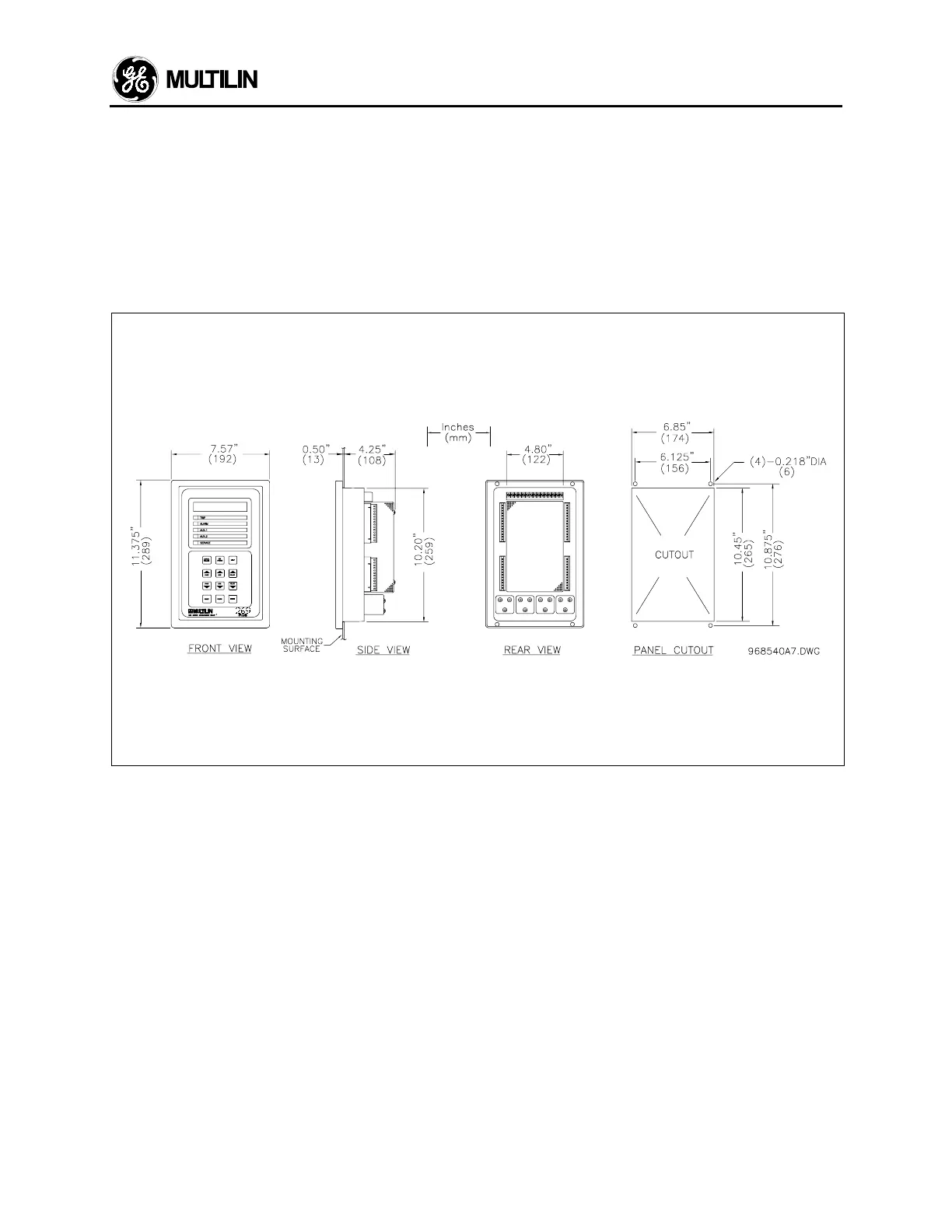

Figure 2.1
Physical Dimensions
