2 INSTALLATION
2-14

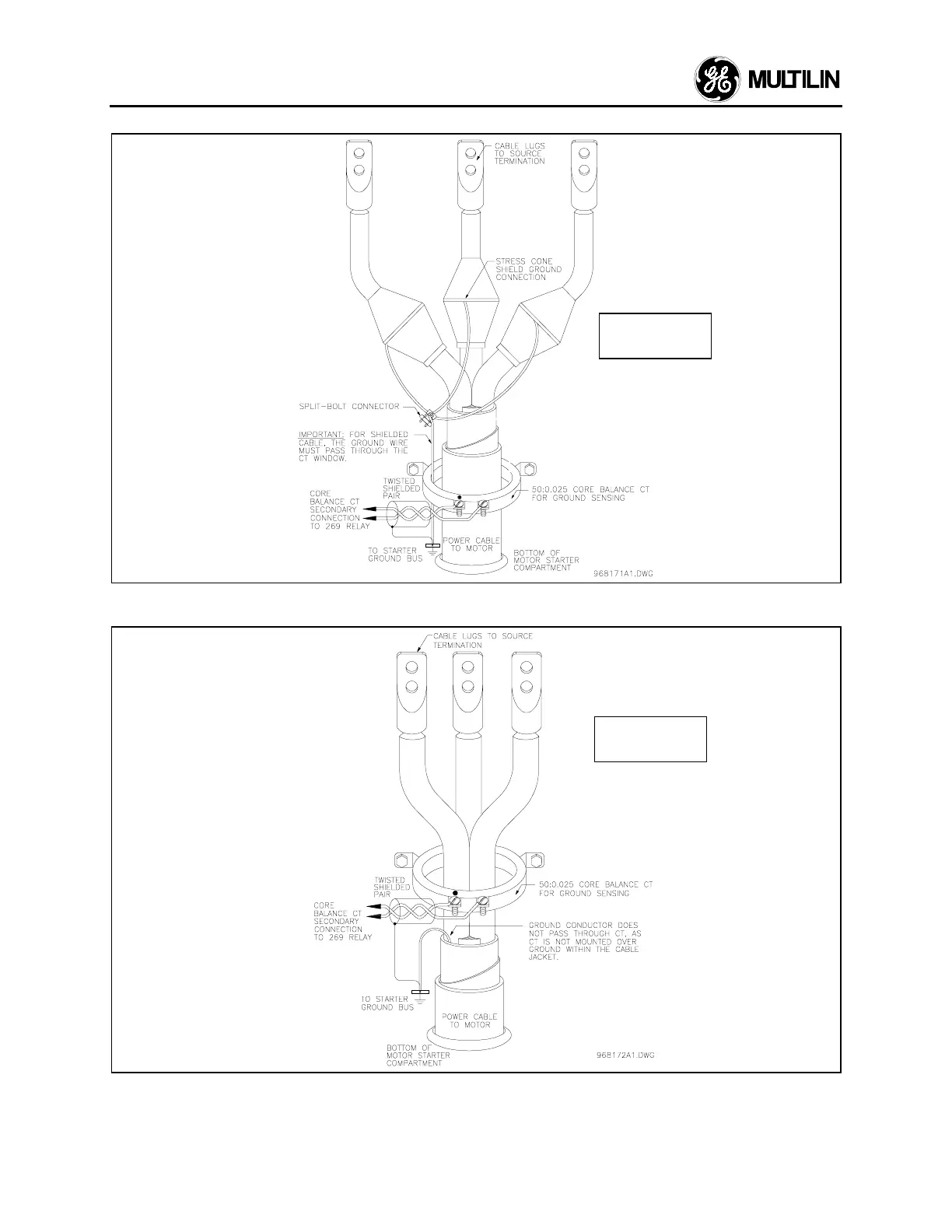

Figure 2.9a
Core Balance Ground CT Installation using Shielded Cable
Figure 2.9b
Core Balance Ground CT Installation using Unshielded Cable
SHIELDED
CABLE
UNSHIELDED
CABLE
