Installation
Connection the vacuum pump
GE Information08- 2016 L31- 853EN/04
4/4

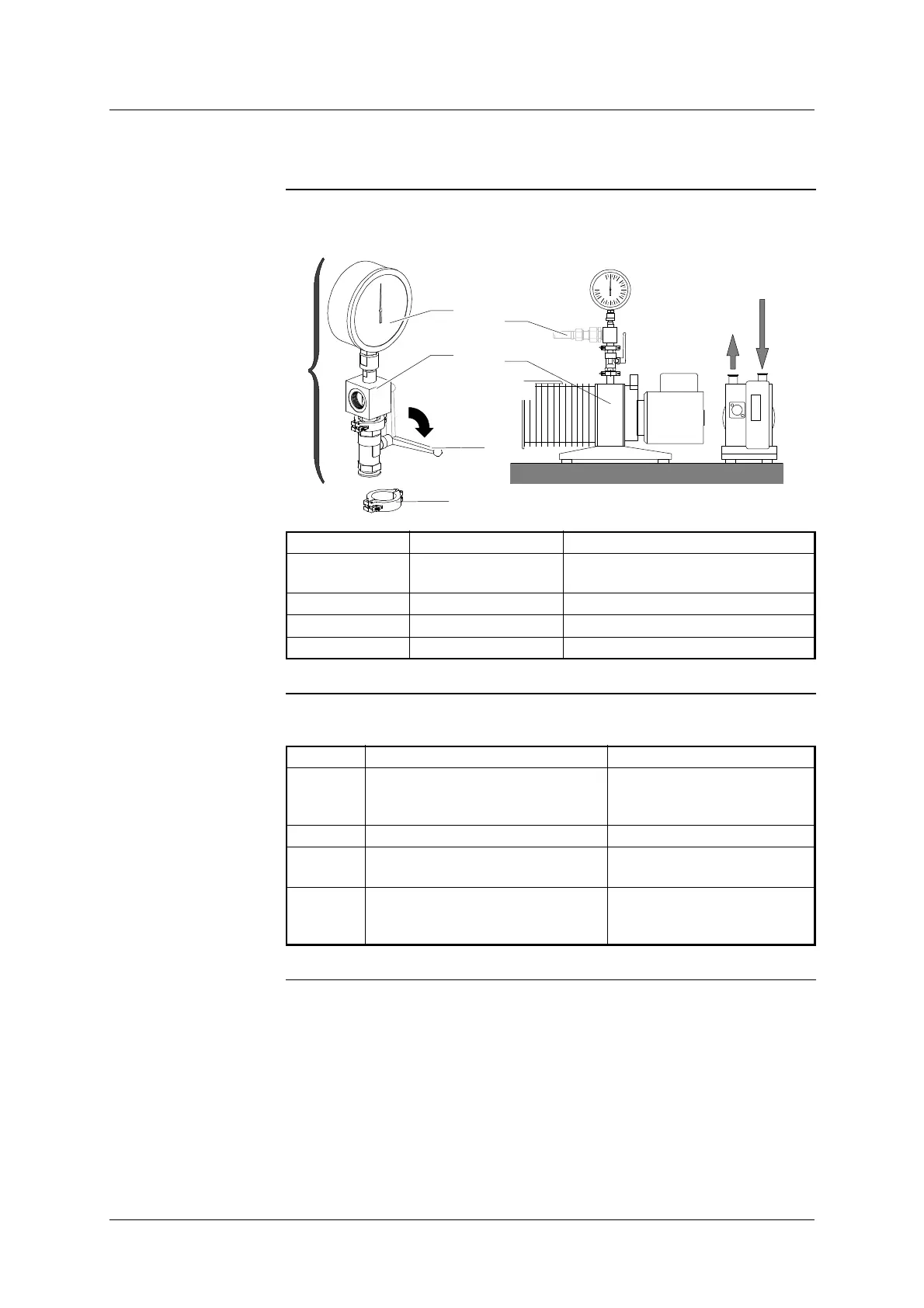

Connection the Grid Solutions supply vacuum pump
Vacuum pump
equipment
The table below describes the accessory (9) main components of the
vacuum pump (1) :
13
1
SUCKING BACK
DN25
SUCKING UP
PNEUROP DN25
14
CLOSED
9
10
12
11
Mark Component Information
(10) Tap
Opening - Closing of the vacuum
pump.
(11) Pressure gauge Reading the pressure.
(12) Distribution block Connection the vacuum pump.
(13) Close tap Fastening the accessory (9).
Process
The table below gives the steps of the vacuum pump connection :
Step Action Comment
1 Install the accessory (9) on the
“SUCKING UP” exit of the vacuum
pump (1).
Use the close tap (13).
2 Close the tap (10).
3 Connect one end of the tube (14)
to the distribution block (12).
The tube (14) is not provided
by Grid Solutions.
4 Connect the other end of the tube
(14) to the SF
6
checking block.
Refer to “Connection the
tube of the customer supply
vacuum pump
