Installation
Installation of operating device
GE Information L31- 7902EN/02
1/12
11- 2016
Presentation
Necessary product
Grease MOBILPLEX 47 or MOBILUX EP3 (screws greasing)
Necessary
Grid Solutions
tools

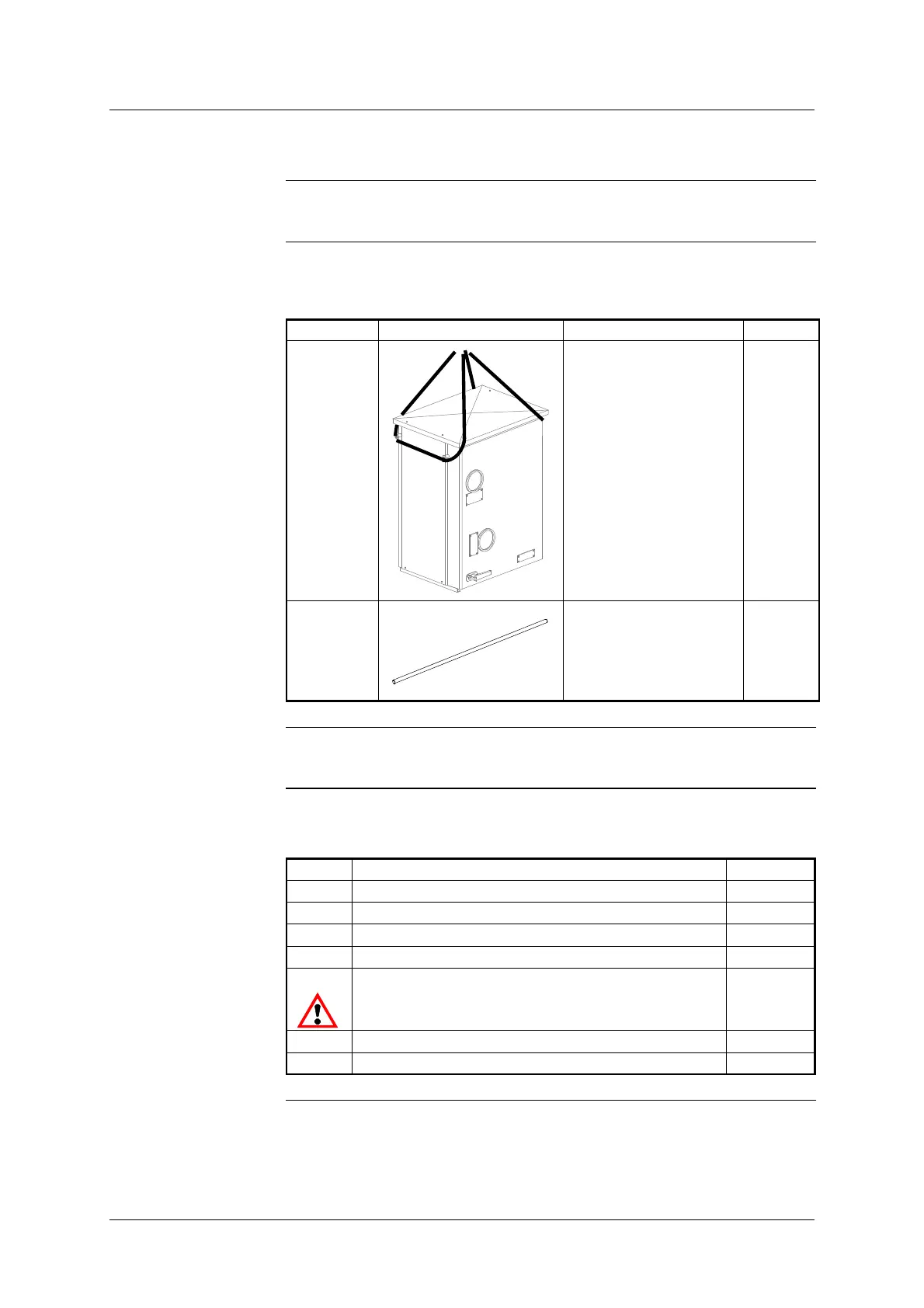

List of the Grid Solutions tools necessary for the installing :
Mark Diagram Designation Number
(1) Lifting strap 1
(6) Lever 1
Lifting equipment
Provide an appropriate lifting equipment (300 daN).
Process
The table below gives the steps of installing the operating device on the
pole- support :
Step Topic Page
A Preparing the operating device 2
B Preparing the pole operating shaft 3
C Coupling the operating device 6
D Fastening the operating device 8
E
Removing the blocking tool
10
F Low voltage electrical wiring 11
G Permanent heating system 12
