Maintenance
Intervention on the FK3- 4 operating device
GE Information L51- 303EN/05
4/10
11- 2016
Preparing the o p erating device
Introduction
In order to perform certain maintenance operations inside the operating
device it is necessary to remove some cabinet parts.
Removing
side panels

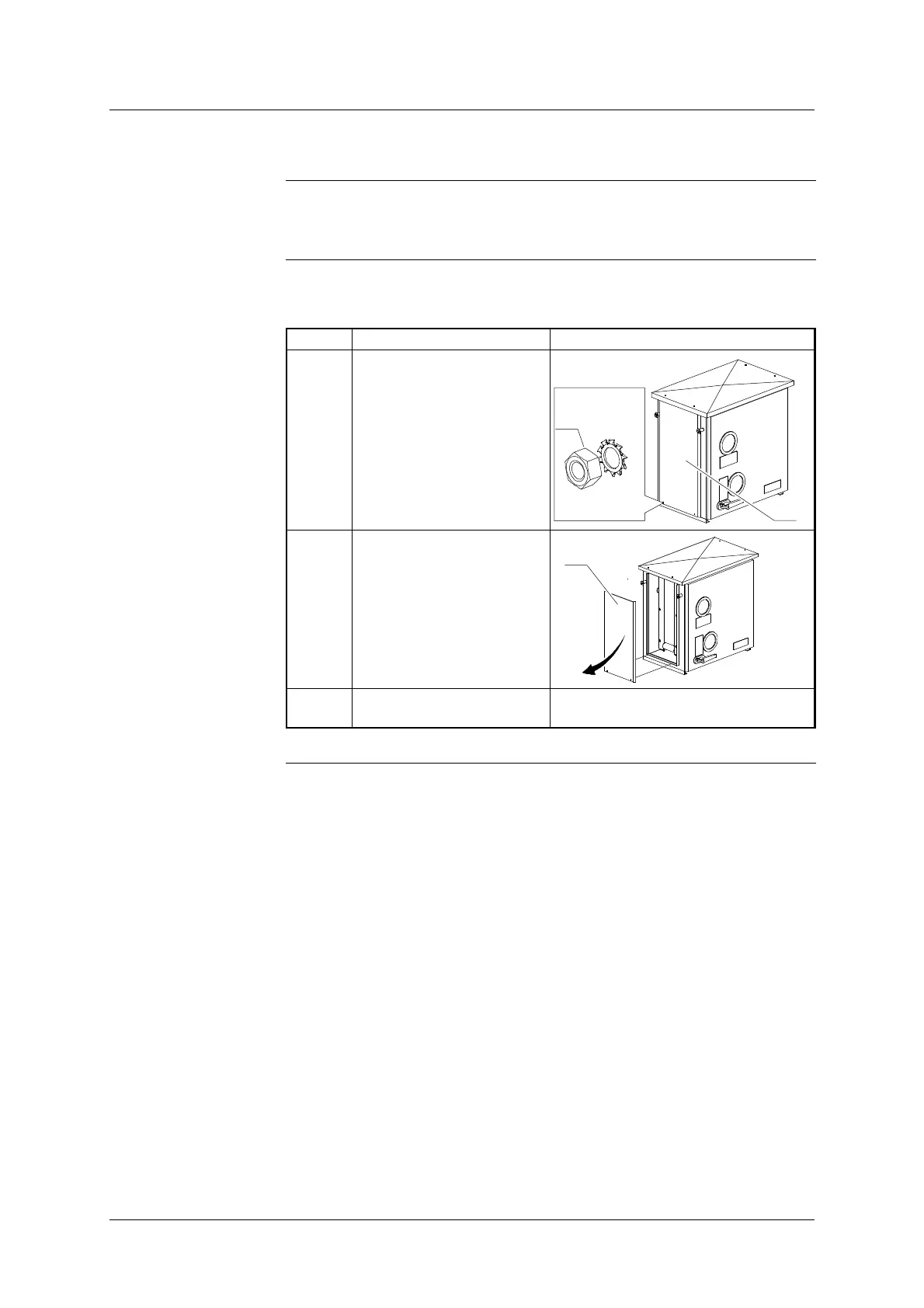

The table below gives the steps of side panels removing :
Step Action Diagram
1 Remove the nuts (2) from
the left side panel (3).
3
x2
M8
2
2 Take hold of the left side
panel (3) from underneath,
pull slightly towards the out-
side, then downwards to
remove it.
3
3 Proceed in the same way
for the right side panel.
