Installation
Installation of capacitors
GE Information L31- 610EN/03
4/4
02- 2017

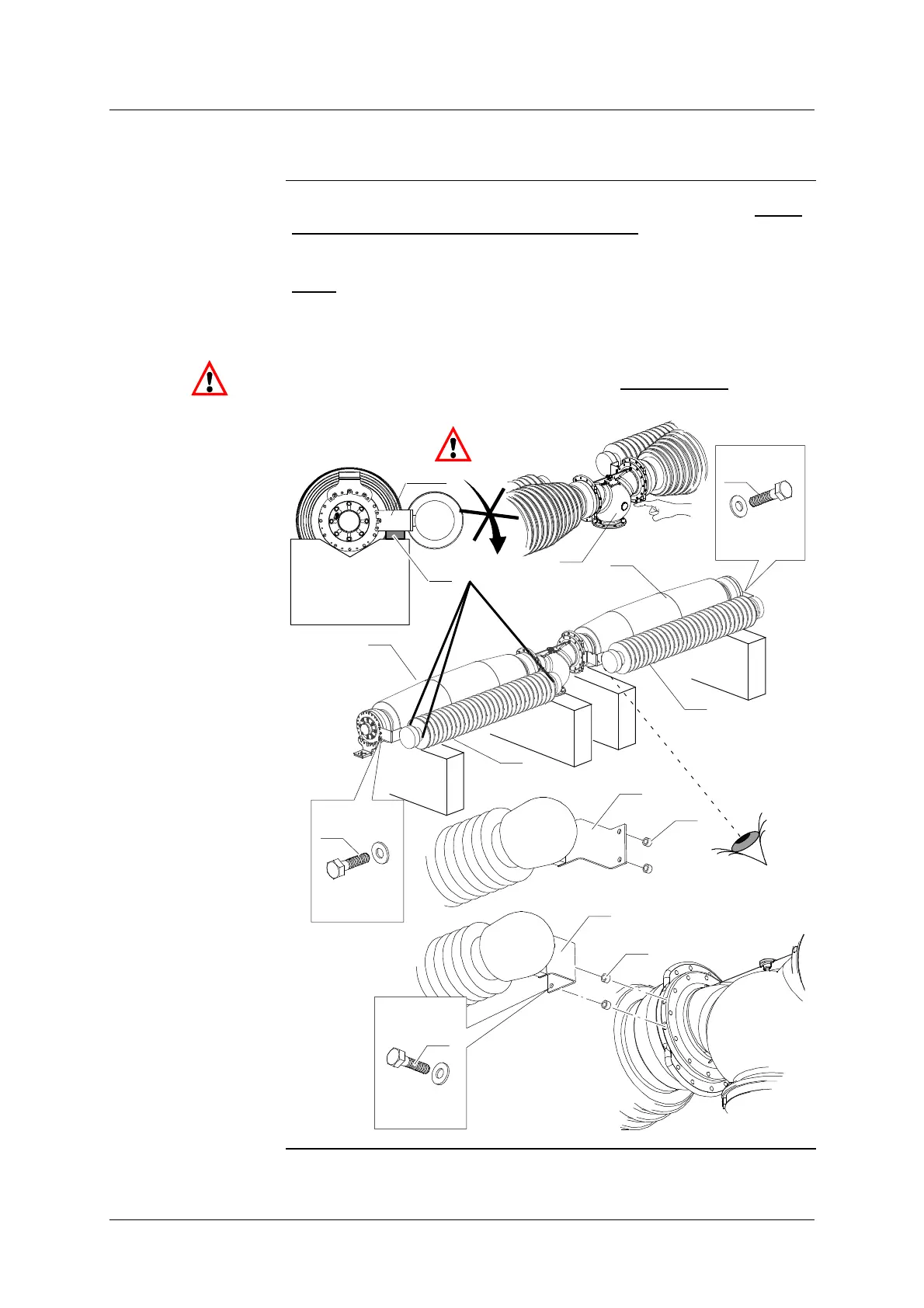

Installing the capacitors
Process
Install the capacitors (1) on the interrupting chambers (6) and (7) - on
the
opposite side as the bosse of the housing (13)
- using the screws (8)
and (9).
NOTE
: Use the two spacers (10) to install the capacitors - capacitor
support (4) side.
To avoid the rotation of the interrupting chambers, insert a wedge (13)
under the supports of the capacitors (3)- (4) after installing
.
10
x2
H M12- 45
5daN.m
8
10
4
1
1
4
13
7
6
x2
H M12- 25
5daN.m
9
3-4
13
x2
H M12- 25
5daN.m
9
