Installation
Supporting frame assembly
GE Information L31- 139EN/03
9/10
01- 2017

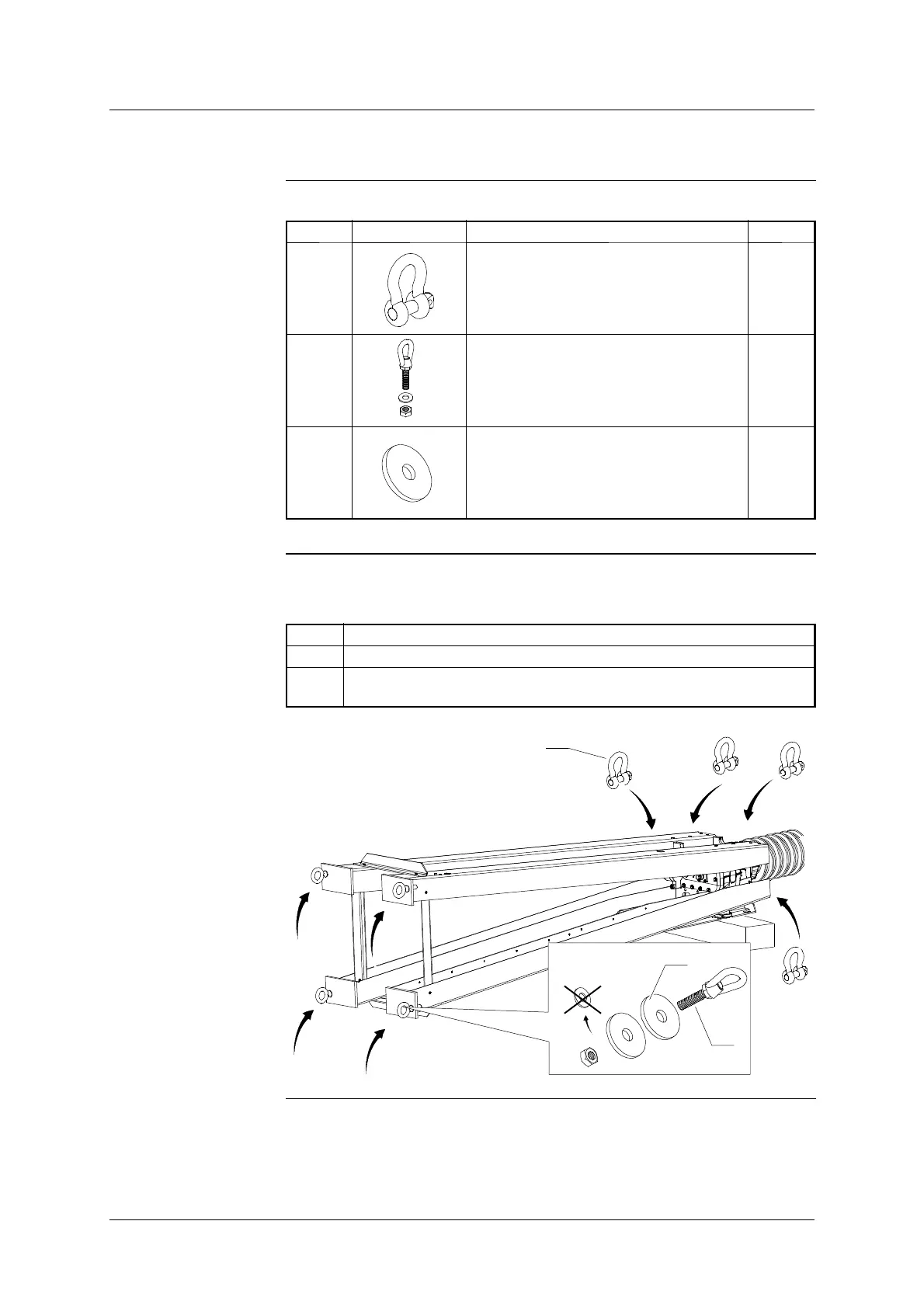

Installing the lifting too ls
Necessary tools
List of the lifting tools to install on the frame:
Mark Diagram Designation Number
(14) Lifting shackle 4
(15) Ring bolt 4
(16) W asher 8
Process
The table below gives the steps of installing the lifting tools on the support-
frame:
Step Action
1 Install the lifting shackle (14) in the holes of the frame.
2 Install the ring bolts (15) on the base of the frame, inserting the thick
washers (16).
14
x4
16
15
