Digital Signal Processor 81
○○○○○○○○○○○○○
• 8 Digital Signal Processor
PK7/PK5 allows you to route the Performances (Style/RealTime, Song Style and Song Performances) to the
on-board multi-effects processor which renders the overall sound more realistic.
The Digital Signal Processor section consists of two units which process the Performances with Reverbs and
Delay/Modulation effects.
Each processor has an effects Send control to independently regulate the level (volume) of the effect for each
track of the current Performance.

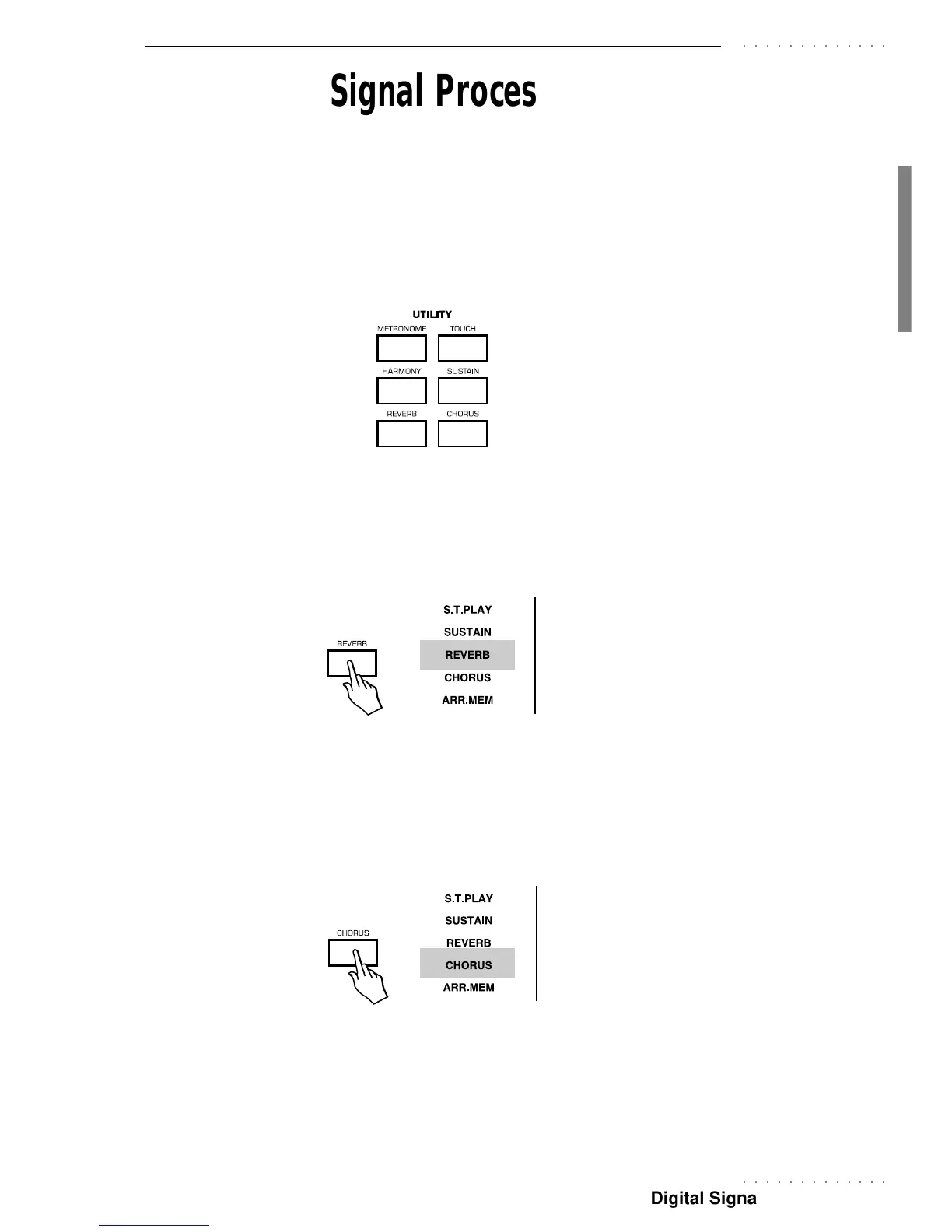

The buttons which control the DSP are in the UTILITY section:
REVERB
When active (corresponding display indicator on), the current Performance is processed the type of reverb
effect assigned to the Reverb DSP unit. The overall processed (‘wet’) sound can be heard over the internal
speakers and delivered from the stereo Aux Out.
When deactivated, (display indicator off), the sound is not processed by the DSP (delivered ‘dry’).
CHORUS
When active (corresponding display indicator on), the current Performance is processed the type of modu-
lating effect assigned to the Chorus DSP unit. The overall processed (‘wet’) sound can be heard over the
internal speakers and delivered from the stereo Aux Out.
When deactivated, (display indicator off), the sound is not processed by the DSP (delivered ‘dry’).
NB. To change the Rotary
effect from Slow to Fast and
vice versa, use the ENTER
or ESCAPE buttons.
