Gigabyte G292-2G0 User Manual

- 14 -

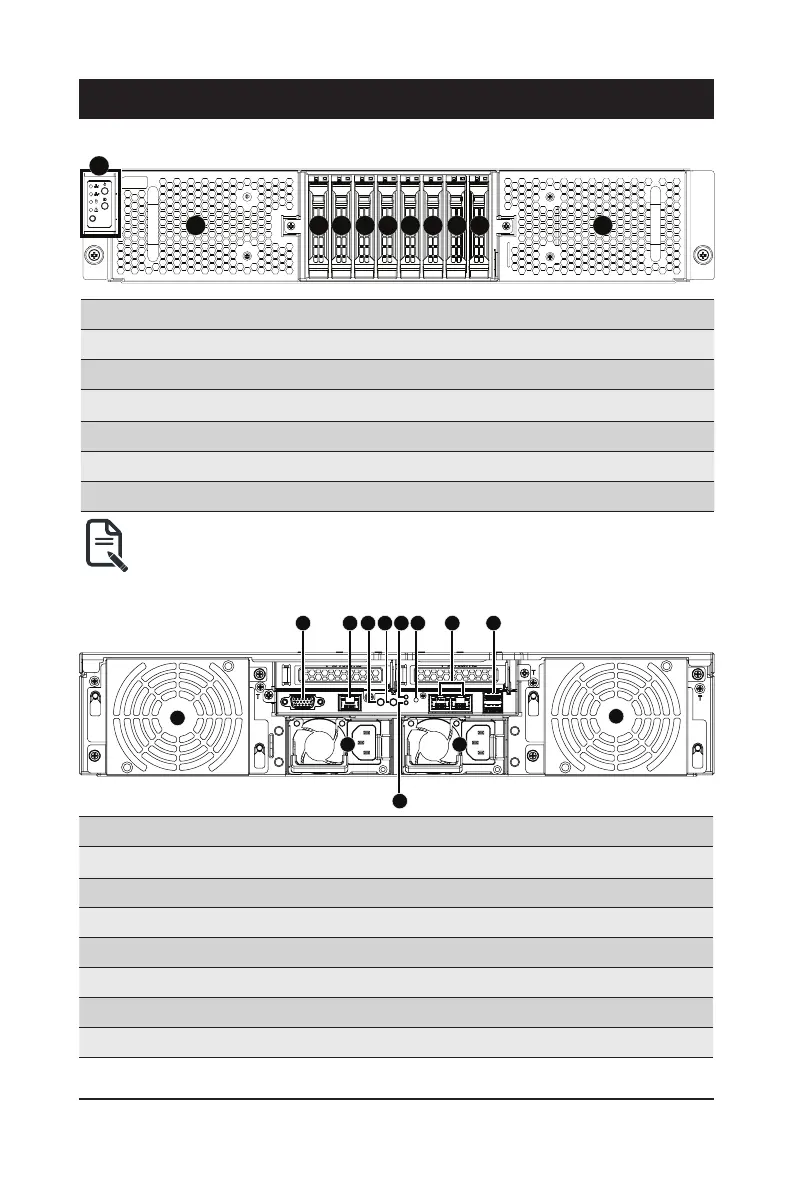

System Appearance
Chapter 2 System Appearance
2-1 Front View
• Please Go to Chapter 2-3 Front Panel LED and Buttons for detail description of function LEDs.
3
1
2 114 5 6 7 8 9 10
2-2 Rear View
No.
Description
No.
Description
1.
System Fan (GPU_FAN12E)
8.
10GbE LAN Port x 2
2.
VGA Port
9.
USB 3.0 Port x 2
3.
10/100/1000 Server Management LAN Port
10.
System Fan (GPU_FAN56E)
4.
Power Button with LED
11.
Power Supply (PSU2)
5.
ID Button
12.
NMI Button
6.
Reset Button
13.
Power Supply (PSU1)
7.
System Status LED
432 5 6 7 8 9
13
1
10
12
11
No.
Description
No.
Description
1.
Front Panel LED and Buttons
7.
2.5-inch Hard Disk Drive #4
2.
System Fan (GPU_FAN78)
8.
2.5-inch Hard Disk Drive #5
3.
2.5-inch Hard Disk Drive #0
9.
2.5-inch Hard Disk Drive #6
4.
2.5-inch Hard Disk Drive #1
10.
2.5-inch Hard Disk Drive #7
5.
2.5-inch Hard Disk Drive #2
11.
System Fan (GPU_FAN34)
6.
2.5-inch Hard Disk Drive #3
NOTE! Green HDD Latch Supports NVMe
