Motherboard Components
4-3 Backplane Board Storage Connector

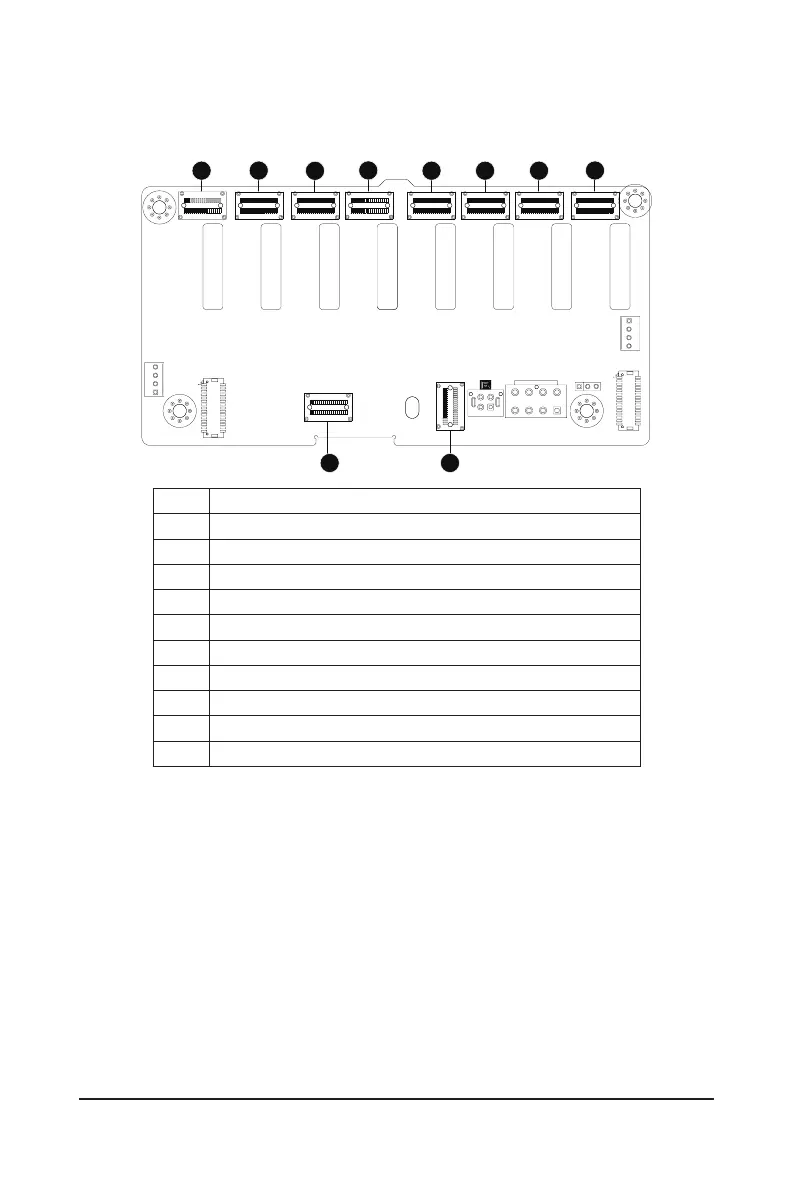

4-3-1 CBPG084
1
2
34
5
6
7
8
910
Item Description
1 SlimLine Connector (U2_0)
2 SlimLine Connector (U2_1)
3 SlimLine Connector (U2_2)
4 SlimLine Connector (U2_3)
5 SlimLine Connector (U2_4)
6 SlimLine Connector (U2_5)
7 SlimLine Connector (U2_6)
8 SlimLine Connector (U2_7)
9 SlimLine Connector (SL_CN1)
10 SlimLine Connector (SL_CN2)
