System Hardware Installation
3-8 Replacing the FAN Assembly
CAUTION!
Before you remove or install the system fans follow these steps:
• Make sure the system is not turned on or connected to the AC power..
• Disconnect all necessary cable connections. Failure to observe these warnings could result in
personal injury or damage to the equipment.

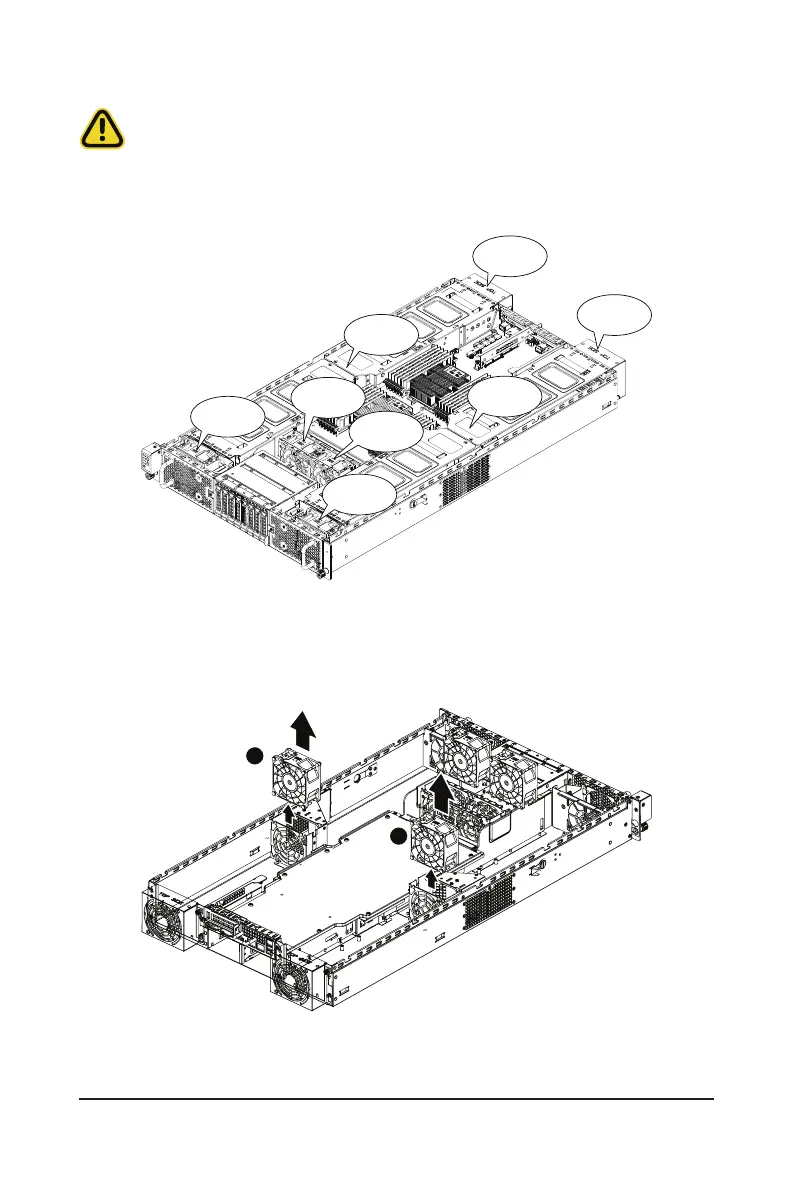

GPU56E_FAN
GPU12E_FAN
GPU_FAN12
GPU_FAN56
SYS_FAN2
SYS_FAN1
GPU_FAN78
GPU_FAN34
Follow these instructions to replace the fan assembly:
[For GPU_FAN12/GPU_FAN34/GPU_FAN56/GPU_FAN78]
1. Disconnect the fan cable and then lift up the fan assembly from the chassis.
2. Reverse the previous steps to install the replacement fan assembly.
