Gigabyte H262-Z6A User Manual

System Appearance - 20 -

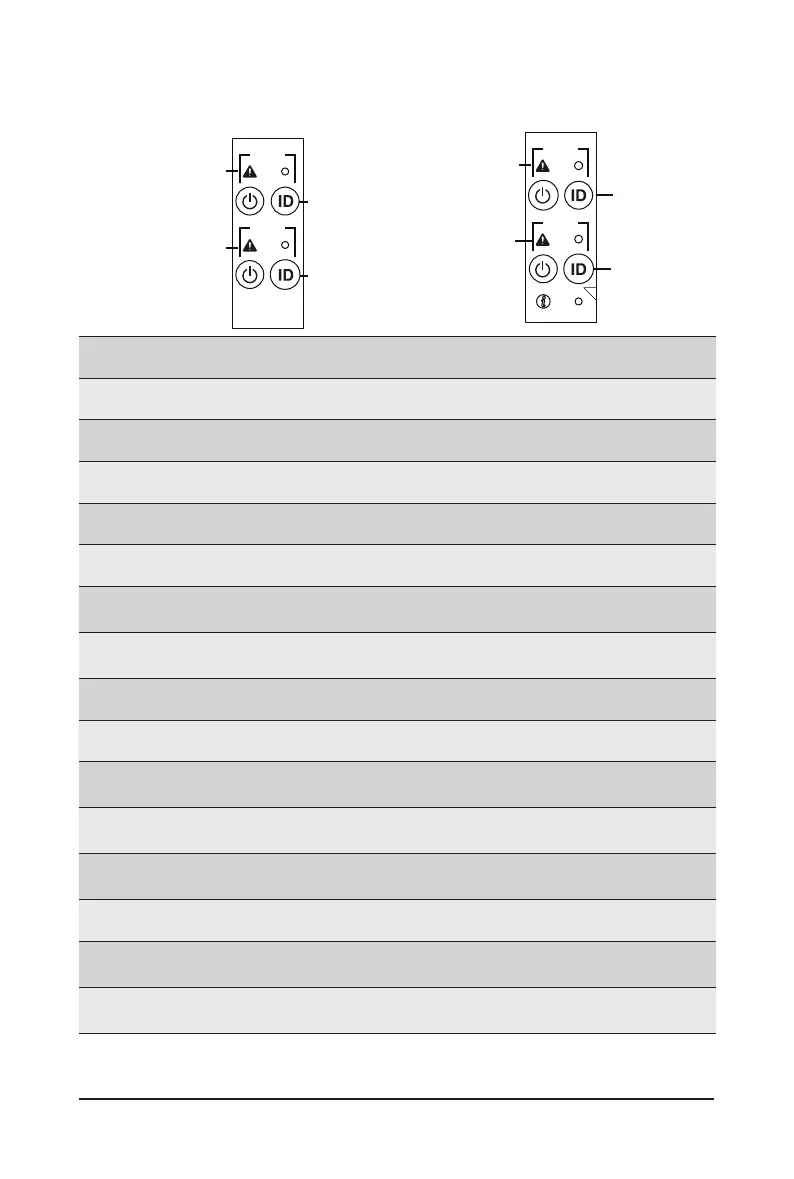

2-4 RoT LEDs
NODE1
RST
NODE2
RST
NODE3
RST
NODE4
RST
RST
C
Status LED
Status LED
ID LED
ID LED
Status LED
Status LED
ID LED
ID LED
LED on Front panel
(Note5)
ID LED Status LED
EC Firmware (FW) Authentication fail or not exit
EC FW is broken or not exit
(Note1)
OFF OFF
Authenticating/Recovering BMC/BIOS Images
Authenticating Images
OFF OFF
Recovering BMC Active Flash
Blinks Blue
4 times per second
Blinks Green
4 times per second
Recovering BIOS Active Flash
Blinks Blue
4 times per second
Blinks Amber
4 times per second
Authentication (AUTH) Pass
Recovering BIOS Active Flash
OFF OFF
BMC : AUTH pass after doing recovery
BIOS : AUTH pass after doing recovery
OFF OFF
BMC : AUTH pass after doing recovery
BIOS : AUTH pass
OFF OFF
BMC : AUTH pass
BIOS : AUTH pass after doing recovery
OFF OFF
Active Flash Authentication (AUTH) Fail
BMC : AUTH Fail
(Note2)
Blinks Blue
1 time per second
Blinks Green
1 time per second
BIOS : AUTH fail
(Note2)
Blinks Blue
1 time per second
Blinks Amber
1 time per second
