System Hardware Installation - 34 -
3-8 Installing the PCI Expansion Card
• The PCI riser assembly does not include a riser card or any cabling as standard. To install
a PCI card, a riser card must be installed.

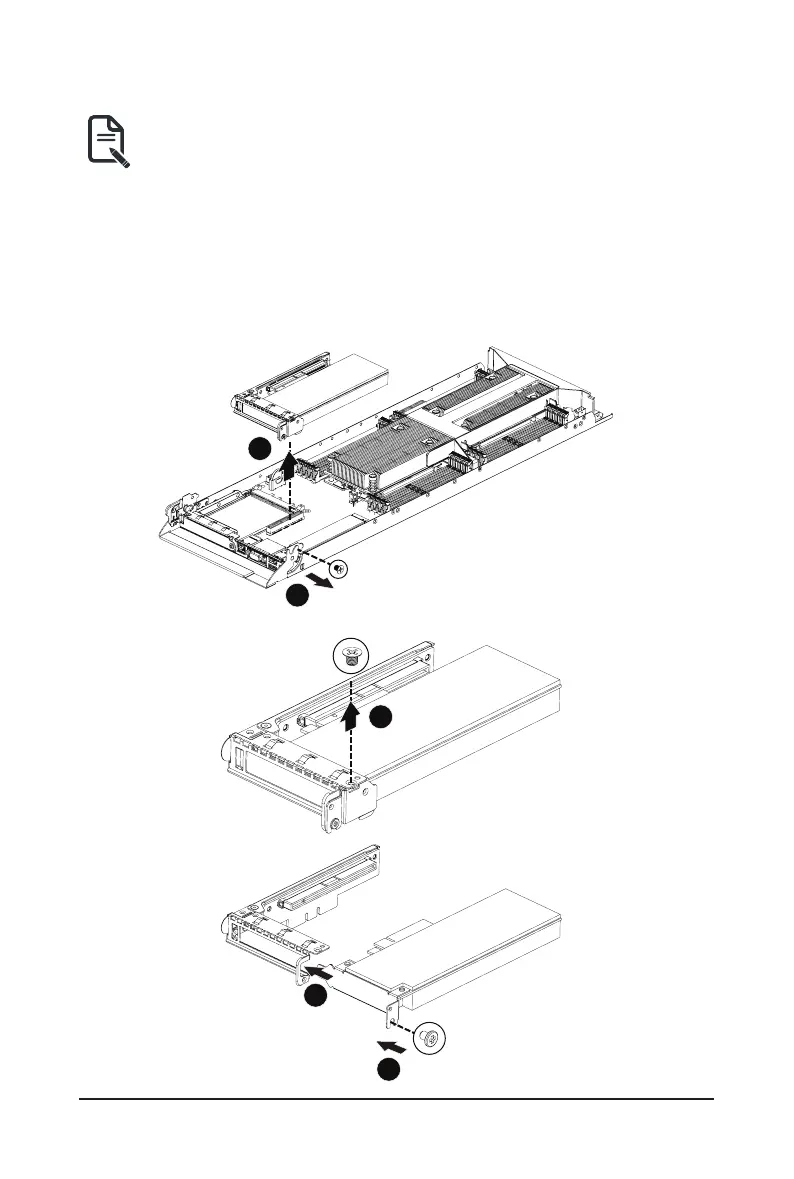

Follow these instructions to install the right PCI Expansion card:
1. Remove the two screws securing the riser bracket to the system.
2. Lift up the riser bracket out of system.
3. Align the PCI-E card to the riser guide slot and push in the direction of the arrow until the PCI-E
card sits in the PCI card connector.
4. Secure the PCI-E card with a screw.
5. Reverse steps 1 - 3 to install the riser bracket back into the system.
2
1
3
4
5
