3-7-2 Installing the Memory
3-7-3 DIMM Population Table
Before installing a memory module, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the memory module.
Be sure to install DDR4 DIMMs on this motherboard.

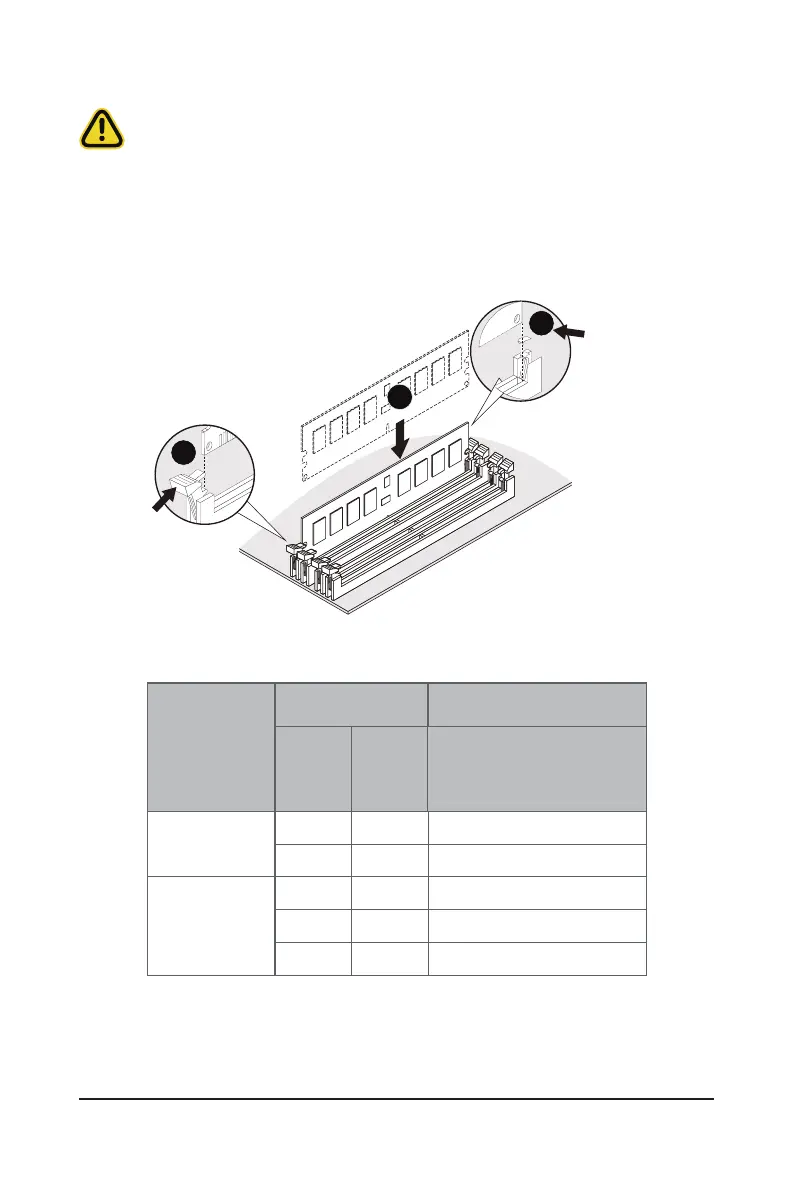

Follow these instructions to install the Memory:
1. Insert the DIMM memory module vertically into the DIMM slot, and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
3. Reverse the installation steps when you want to remove the DIMM module.
1
2
2
RDIMM Maximum Frequency Supported Tablel
2R
2
1
DIMMs
Populated
DIMM
1R
--
1
1
--
--
2
2
1
--
1
2DR
3200
3200
2933
2933
2933
1.2V
Frequency (MT/s)
