Graco Magnum ProX7 User Manual

Shutdown and Cleaning
312001B 19

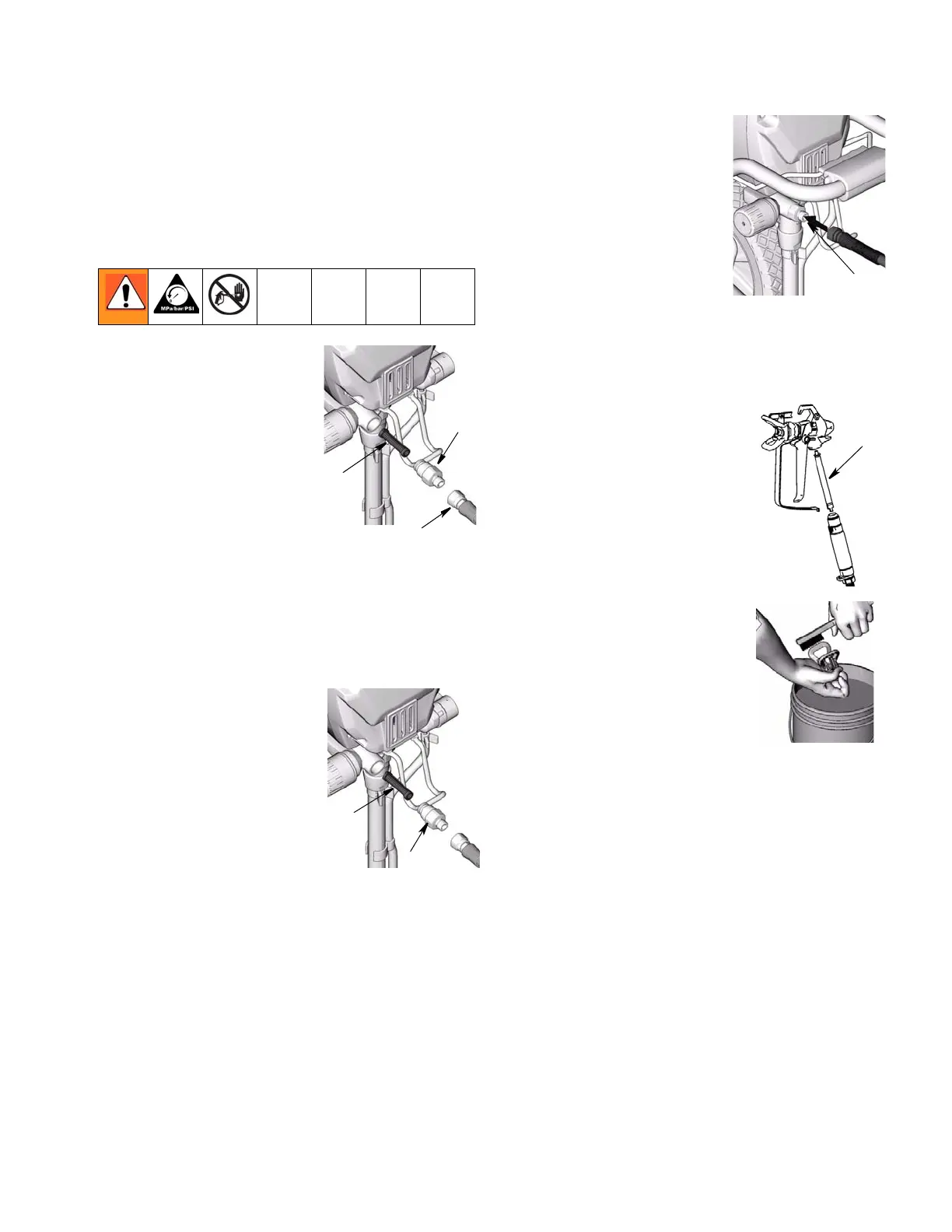

Cleaning InstaClean
™
Fluid
Filter
The InstaClean Fluid Filter prevents particles from
entering paint hose. After each use, remove and clean it
to insure peak performance.
1. Relieve pressure, page 8.
2.
a. Disconnect airless
spray hose (a) from
sprayer
b. Unscrew outlet fitting
(b).
c. Remove InstaClean
Fluid Filter (c).
3. Check InstaClean Fluid Filter (c) for debris. If
needed, clean filter with water and a soft brush.
4.
a. Install open end of
InstaClean Fluid Fil-
ter (c) in sprayer.
b. Screw outlet fitting (b)
into sprayer.
5. Tighten outlet fitting and
reconnect hose (a) to
sprayer. Use two
wrenches to tighten
securely.
Cleaning Gun
• Clean gun fluid filter (d) with
water or flushing solvent
and a brush every time you
flush the system. Replace
gun filter if damaged.
• Remove tip and guard and
clean with water or flushing
solvent. A soft brush can be
used to loosen and remove
dried on material if needed.
• Wipe paint off outside of
gun using a soft cloth moist-
ened with water or flushing
solvent.
a
b
c
ti9347a
c
b
ti9347a
a
ti9668a
d
ti9671a
