Graco Reactor 2 E-XP2 User Manual

Repair
Repair Circui
t Breaker Module
1. See Before Beginning Repair, page 53.
2. Using an ohmmeter, check for continuity across
circuit breaker (top to bottom). If no continuity,
trip breaker, reset, and retest. If still no continuity,
replace breaker as follows:
a. Refer to Electrical Schematics, page 106,
and circuit breaker table.
b. Follow Shutdown instructions. See
Shutdown, page 50.
c. Refer to circuit breaker identification table
and electrical diagrams in Reactor repair
manual.
d. Loosen two screws connecting wires and bus
bar to circuit breaker that will be replaced.
Disconnect wires.
e. Pull locking tab out 1/4 in. (6mm) and pull
circuit breaker away from the din rail. Install
new circuit breaker. Insert wires and tighten
down all screws.

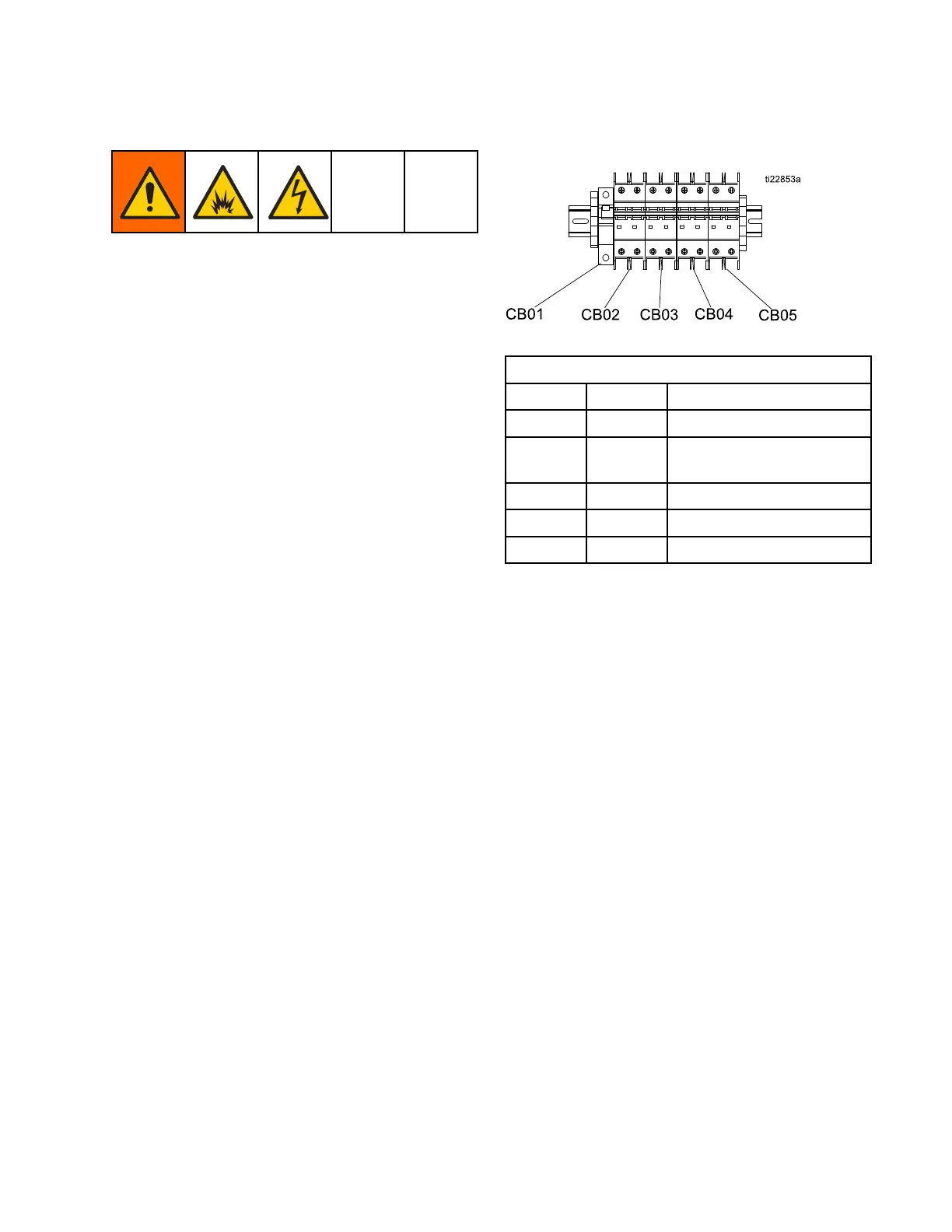

Figure 6
Circuit Breakers
Circuit Breakers
Ref. Size Component
CB01
50 A Heated Hose
CB02
20 A
Motor Control Module
(MCM)
CB03
40 A
ISO Heater
CB04
40 A
RES Hea
ter
CB05
40 A
Hose Heat Transformer
333024N 63
