Repair

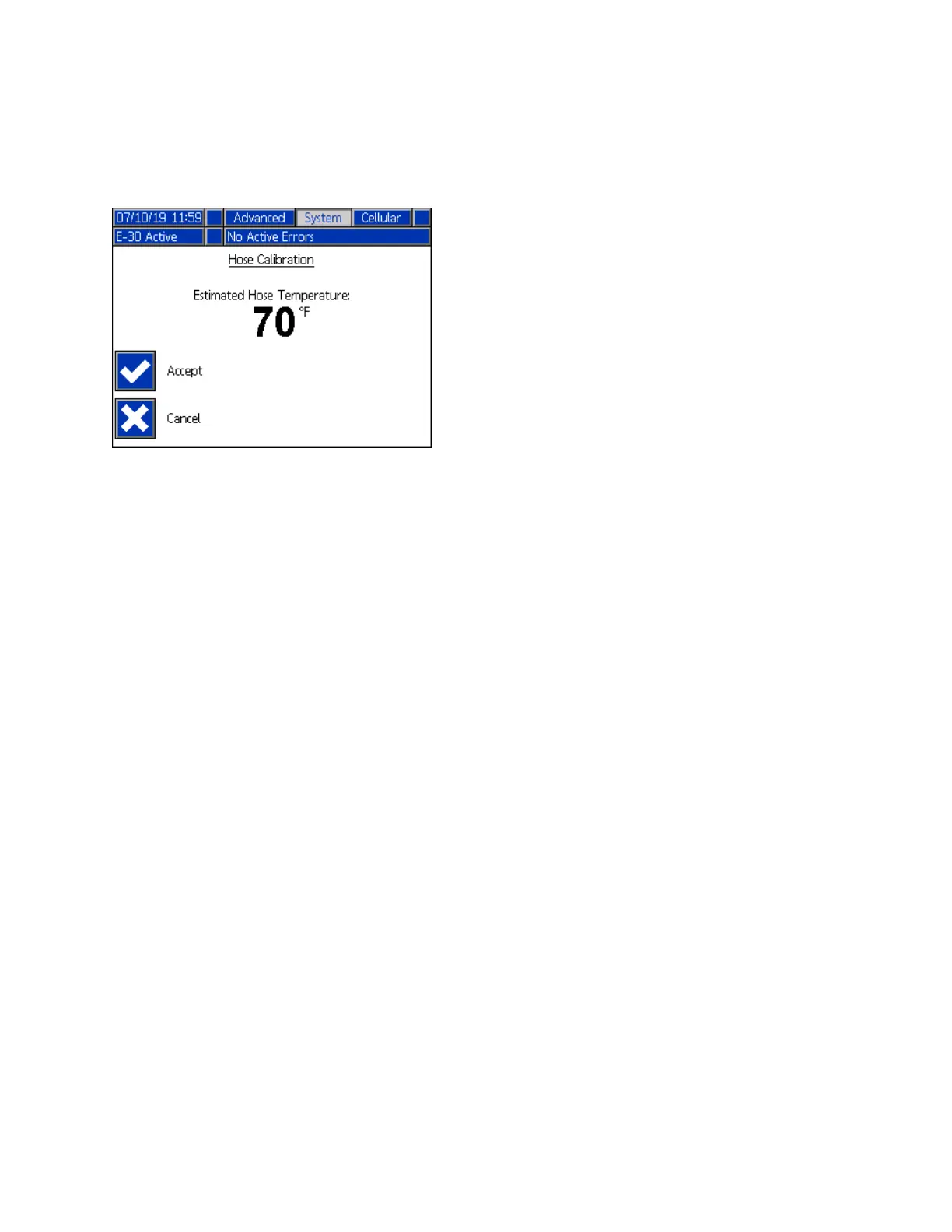

4. Accept or cancel the hose calibration.
NOTE: A temper
ature estimate will be displayed
if the system w
as able to measure the hose wire
resistance.
Transformer P
rimary Check
See Electrical Schematics, page 106.
1. Check wires an
dtransformer:
a. See Shutdown, page 50.
b. Shut off CB05.
c. Use an ohmmeter to test for continuity
between terminals 2 and 4 of CB05. If there
is no continuity, check transformer.
2. Check transformer:
a. See Shutdown, page 50.
b. Remove lower shroud.
c. Locate the two smaller (10 AWG) wires,
labeled 1 and 2, coming out of transformer.
Trace these wires back to terminal blocks
TB15 and TB16.
d. Use an ohmmeter to test for continuity
between two wires; there should be
continuity.
76 333024N
