Multi VRF Indoor
Unit Service Manual
103
4�4 Floor Ceiling Type

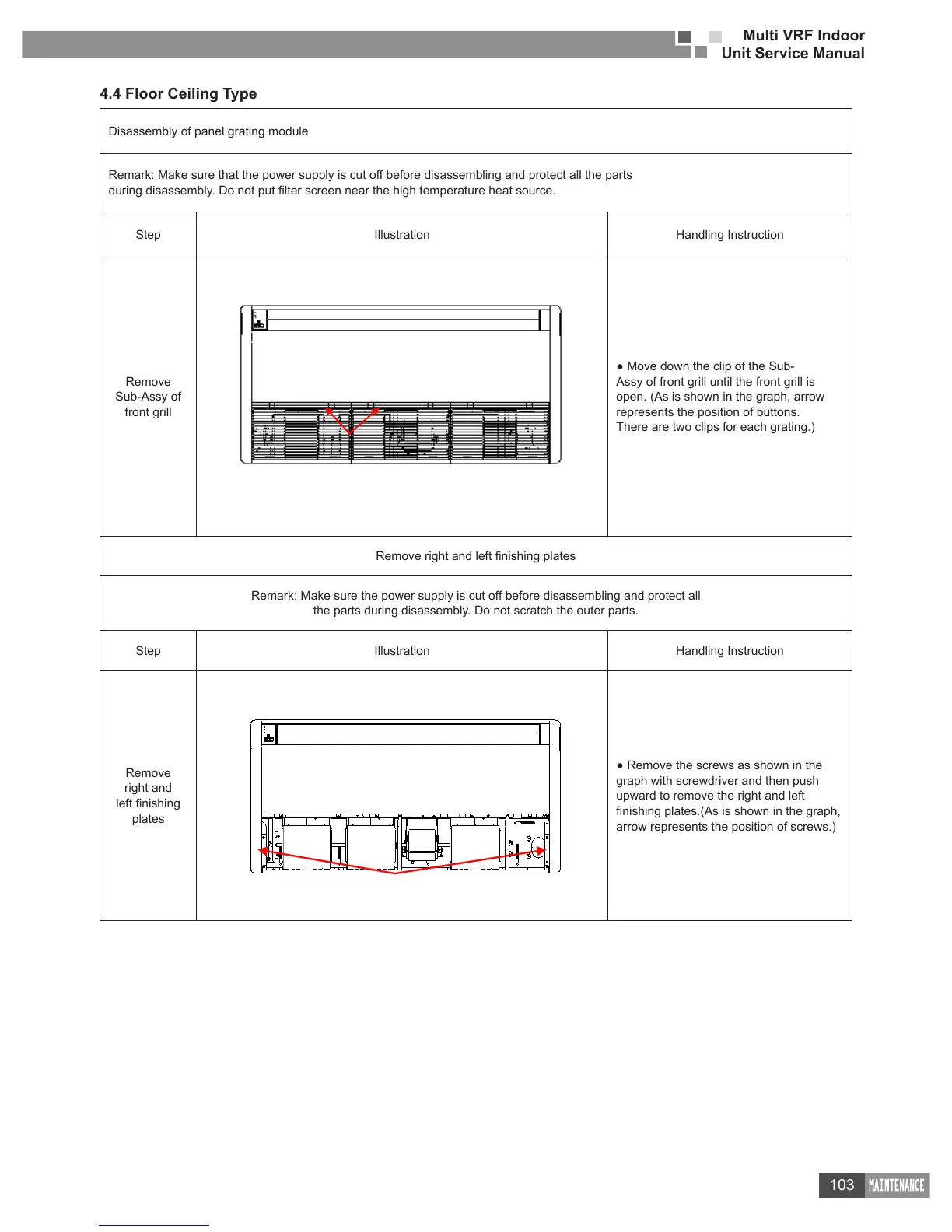

Disassembly of panel grating module
Remark: Make sure that the power supply is cut off before disassembling and protect all the parts
Step Illustration Handling Instruction
Remove
Sub-Assy of
front grill
Assy of front grill until the front grill is
open. (As is shown in the graph, arrow
represents the position of buttons.
There are two clips for each grating.)
Remark: Make sure the power supply is cut off before disassembling and protect all
the parts during disassembly. Do not scratch the outer parts.
Step Illustration Handling Instruction
Remove
right and
plates
graph with screwdriver and then push
upward to remove the right and left
arrow represents the position of screws.)
To Next Page
