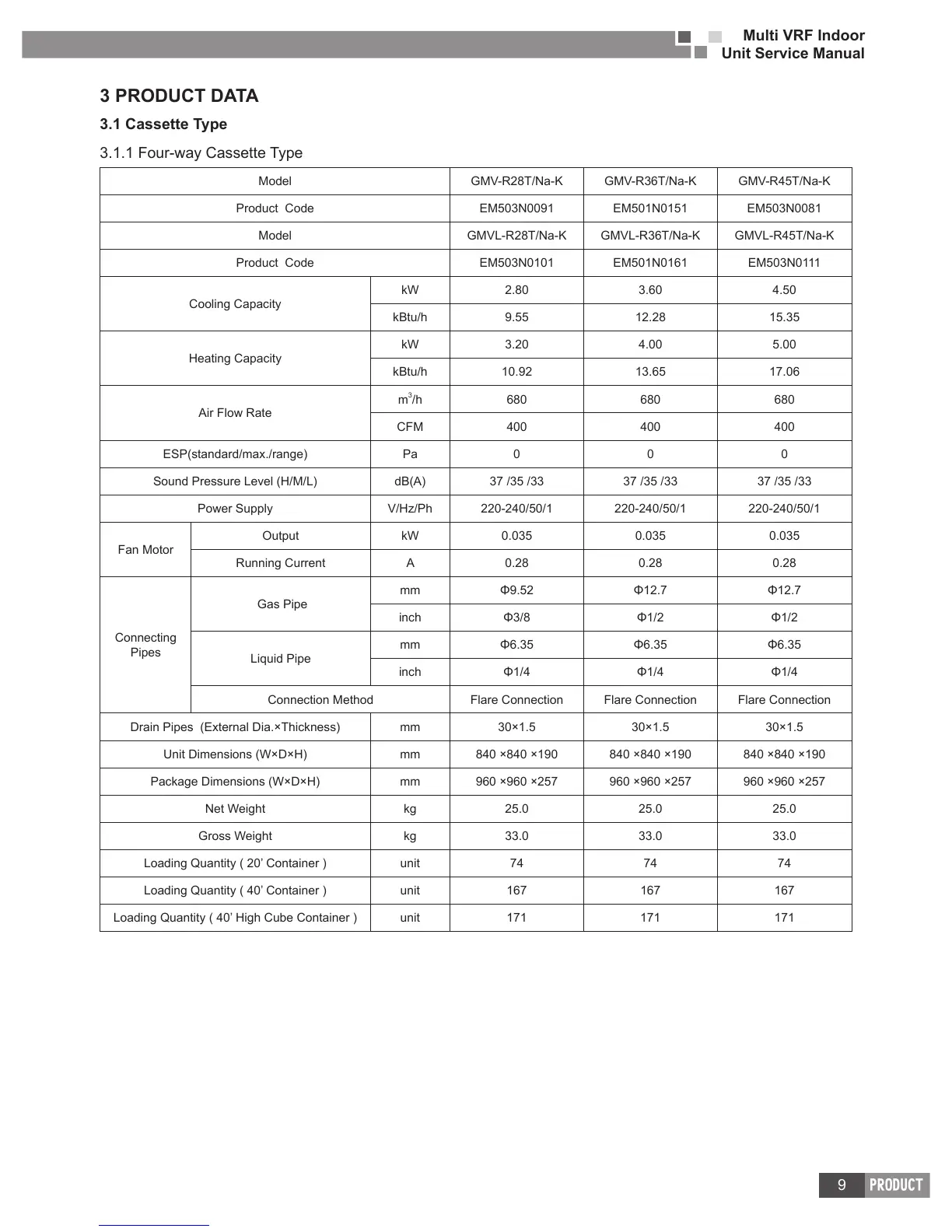

3 PRODUCT DATA
3�1 Cassette Type
3.1.1 Four-way Cassette Type
Model GMV-R28T/Na-K GMV-R36T/Na-K GMV-R45T/Na-K
Product Code EM503N0091 EM501N0151 EM503N0081
Model GMVL-R28T/Na-K GMVL-R36T/Na-K GMVL-R45T/Na-K
Product Code EM503N0101 EM501N0161 EM503N0111
Cooling Capacity
kW 2.80 3.60 4.50
kBtu/h 9.55 12.28 15.35
Heating Capacity
kW 3.20 4.00 5.00
kBtu/h 10.92 13.65 17.06
Air Flow Rate
m
3
/h 680 680 680
CFM 400 400 400
ESP(standard/max./range) Pa 0 0 0
Sound Pressure Level (H/M/L) dB(A) 37 /35 /33 37 /35 /33 37 /35 /33
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.035 0.035 0.035
Running Current A 0.28 0.28 0.28
Connecting
Pipes
Gas Pipe
mm   
inch   
Liquid Pipe
mm   
inch   
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm 30×1.5 30×1.5 30×1.5
Unit Dimensions (W×D×H) mm 840 ×840 ×190 840 ×840 ×190 840 ×840 ×190
Package Dimensions (W×D×H) mm 960 ×960 ×257 960 ×960 ×257 960 ×960 ×257
Net Weight kg 25.0 25.0 25.0
Gross Weight kg 33.0 33.0 33.0
Loading Quantity ( 20’ Container ) unit 74 74 74
Loading Quantity ( 40’ Container ) unit 167 167 167
Loading Quantity ( 40’ High Cube Container ) unit 171 171 171
