Multi VRF Indoor
Unit Service Manual

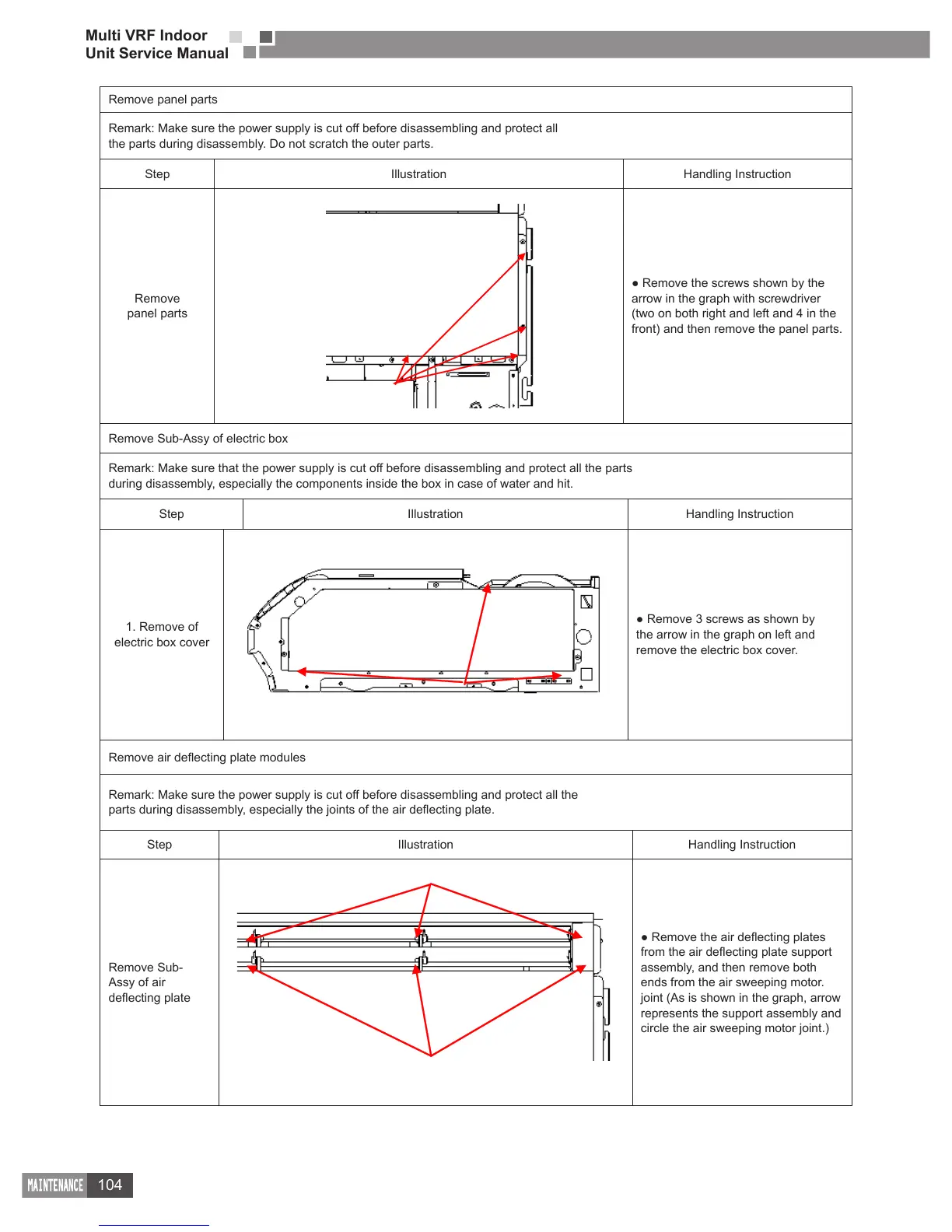

Remove panel parts
Remark: Make sure the power supply is cut off before disassembling and protect all
the parts during disassembly. Do not scratch the outer parts.
Step Illustration Handling Instruction
Remove
panel parts
arrow in the graph with screwdriver
(two on both right and left and 4 in the
front) and then remove the panel parts.
Remove Sub-Assy of electric box
Remark: Make sure that the power supply is cut off before disassembling and protect all the parts
during disassembly, especially the components inside the box in case of water and hit.
Step Illustration Handling Instruction
1. Remove of
electric box cover
the arrow in the graph on left and
remove the electric box cover.
Remark: Make sure the power supply is cut off before disassembling and protect all the
Step Illustration Handling Instruction
Remove Sub-
Assy of air
assembly, and then remove both
ends from the air sweeping motor.
joint (As is shown in the graph, arrow
represents the support assembly and
circle the air sweeping motor joint.)
To Next Page
