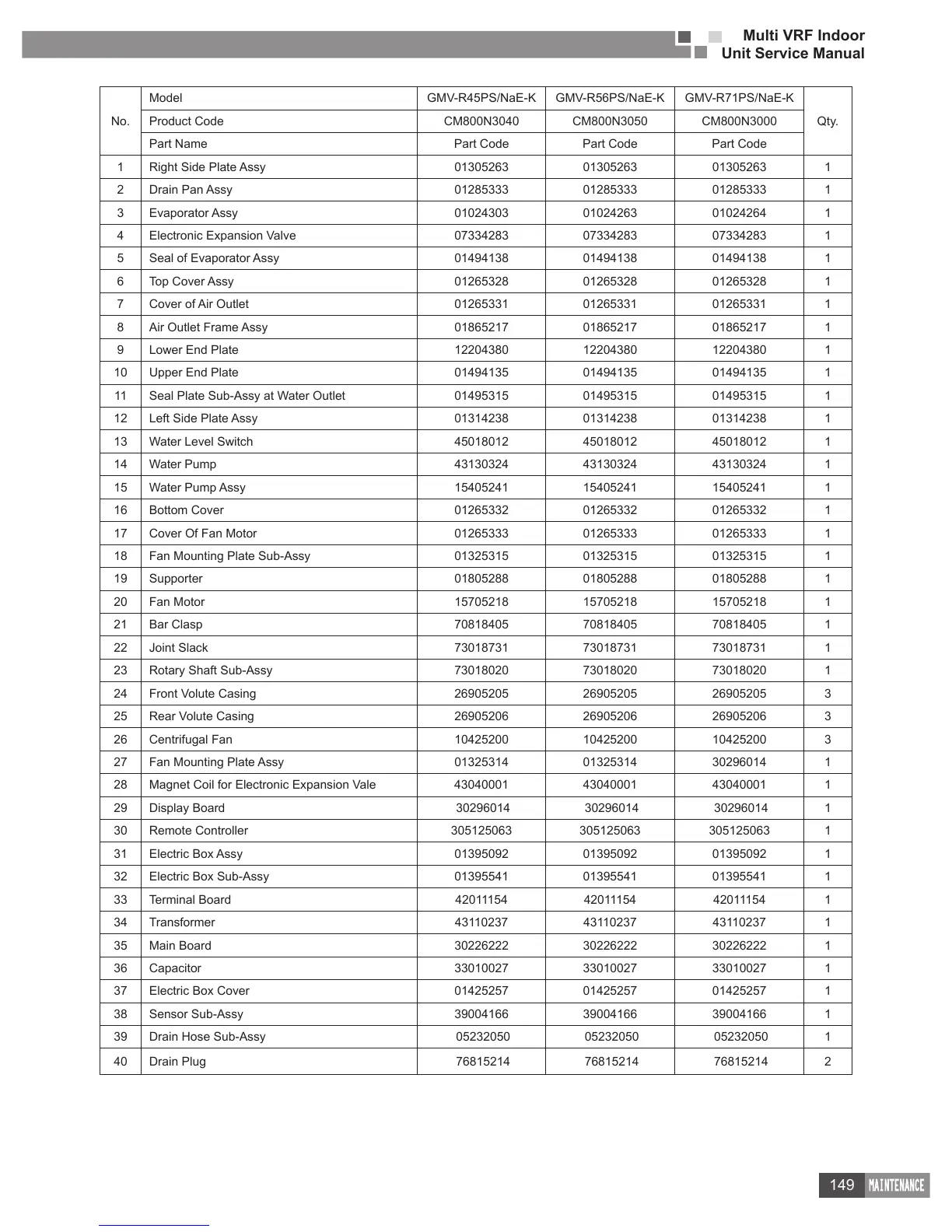

Multi VRF Indoor
Unit Service Manual
149
No.
Model GMV-R45PS/NaE-K GMV-R56PS/NaE-K GMV-R71PS/NaE-K
Qty.Product Code CM800N3040 CM800N3050 CM800N3000
Part Name Part Code Part Code Part Code
1 Right Side Plate Assy 01305263 01305263 01305263 1
2 Drain Pan Assy 01285333 01285333 01285333 1
3 Evaporator Assy 01024303 01024263 01024264 1
4 Electronic Expansion Valve 07334283 07334283 07334283 1
5 Seal of Evaporator Assy 01494138 01494138 01494138 1
6 Top Cover Assy 01265328 01265328 01265328 1
7 Cover of Air Outlet 01265331 01265331 01265331 1
8 Air Outlet Frame Assy 01865217 01865217 01865217 1
9 Lower End Plate 12204380 12204380 12204380 1
10 Upper End Plate 01494135 01494135 01494135 1
11 Seal Plate Sub-Assy at Water Outlet 01495315 01495315 01495315 1
12 Left Side Plate Assy 01314238 01314238 01314238 1
13 Water Level Switch 45018012 45018012 45018012 1
14 Water Pump 43130324 43130324 43130324 1
15 Water Pump Assy 15405241 15405241 15405241 1
16 Bottom Cover 01265332 01265332 01265332 1
17 Cover Of Fan Motor 01265333 01265333 01265333 1
18 Fan Mounting Plate Sub-Assy 01325315 01325315 01325315 1
19 Supporter 01805288 01805288 01805288 1
20 Fan Motor 15705218 15705218 15705218 1
21 Bar Clasp 70818405 70818405 70818405 1
22 Joint Slack 73018731 73018731 73018731 1
23 Rotary Shaft Sub-Assy 73018020 73018020 73018020 1
24 Front Volute Casing 26905205 26905205 26905205 3
25 Rear Volute Casing 26905206 26905206 26905206 3
26 Centrifugal Fan 10425200 10425200 10425200 3
27 Fan Mounting Plate Assy 01325314 01325314 30296014 1
28 Magnet Coil for Electronic Expansion Vale 43040001 43040001 43040001 1
29 Display Board 30296014 30296014 30296014 1
30 Remote Controller 305125063 305125063 305125063 1
31 Electric Box Assy 01395092 01395092 01395092 1
32 Electric Box Sub-Assy 01395541 01395541 01395541 1
33 Terminal Board 42011154 42011154 42011154 1
34 Transformer 43110237 43110237 43110237 1
35 Main Board 30226222 30226222 30226222 1
36 Capacitor 33010027 33010027 33010027 1
37 Electric Box Cover 01425257 01425257 01425257 1
38 Sensor Sub-Assy 39004166 39004166 39004166 1
39 Drain Hose Sub-Assy 05232050 05232050 05232050 1
40 Drain Plug 76815214 76815214 76815214 2
