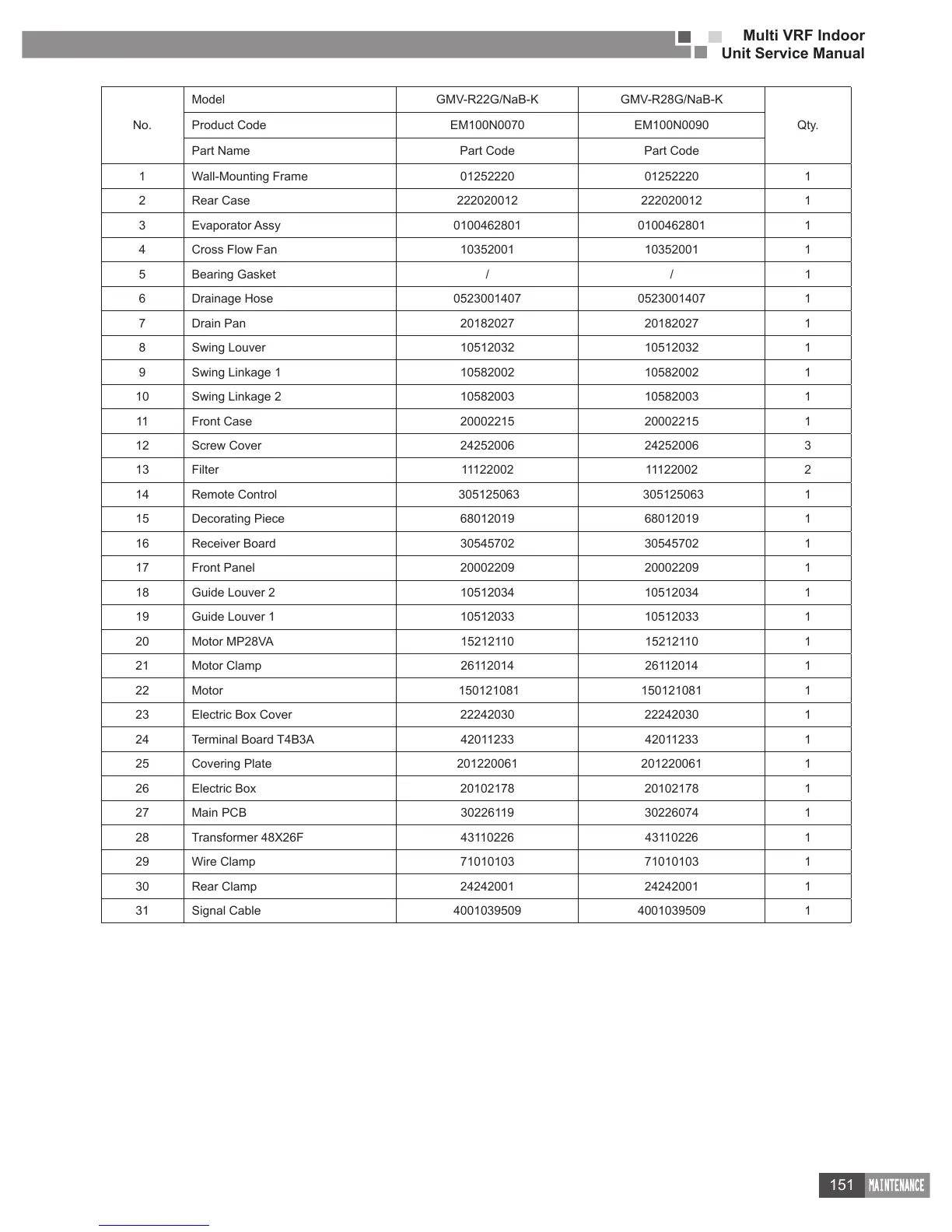

Gree GMV-R series User Manual

Multi VRF Indoor
Unit Service Manual
151
No.
Model GMV-R22G/NaB-K GMV-R28G/NaB-K
Qty.Product Code EM100N0070 EM100N0090
Part Name Part Code Part Code
1 Wall-Mounting Frame 01252220 01252220 1
2 Rear Case 222020012 222020012 1
3 Evaporator Assy 0100462801 0100462801 1
4 Cross Flow Fan 10352001 10352001 1
5 Bearing Gasket / / 1
6 Drainage Hose 0523001407 0523001407 1
7 Drain Pan 20182027 20182027 1
8 Swing Louver 10512032 10512032 1
9 Swing Linkage 1 10582002 10582002 1
10 Swing Linkage 2 10582003 10582003 1
11 Front Case 20002215 20002215 1
12 Screw Cover 24252006 24252006 3
13 Filter 11122002 11122002 2
14 Remote Control 305125063 305125063 1
15 Decorating Piece 68012019 68012019 1
16 Receiver Board 30545702 30545702 1
17 Front Panel 20002209 20002209 1
18 Guide Louver 2 10512034 10512034 1
19 Guide Louver 1 10512033 10512033 1
20 Motor MP28VA 15212110 15212110 1
21 Motor Clamp 26112014 26112014 1
22 Motor 150121081 150121081 1
23 Electric Box Cover 22242030 22242030 1
24 Terminal Board T4B3A 42011233 42011233 1
25 Covering Plate 201220061 201220061 1
26 Electric Box 20102178 20102178 1
27 Main PCB 30226119 30226074 1
28 Transformer 48X26F 43110226 43110226 1
29 Wire Clamp 71010103 71010103 1
30 Rear Clamp 24242001 24242001 1
31 Signal Cable 4001039509 4001039509 1
