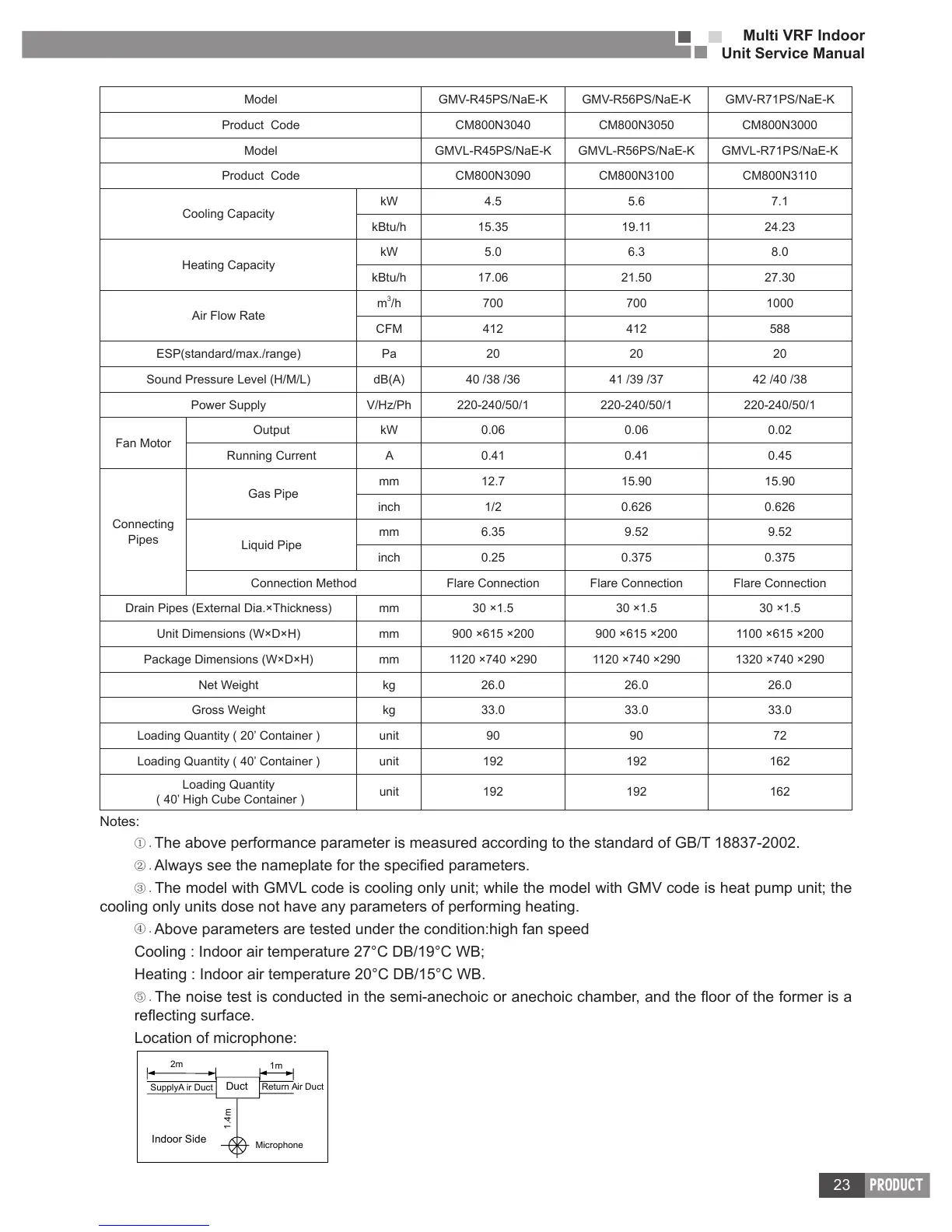

Multi VRF Indoor
Unit Service Manual
23
PRODUCT
Model GMV-R45PS/NaE-K GMV-R56PS/NaE-K GMV-R71PS/NaE-K
Product Code CM800N3040 CM800N3050 CM800N3000
Model GMVL-R45PS/NaE-K GMVL-R56PS/NaE-K GMVL-R71PS/NaE-K
Product Code CM800N3090 CM800N3100 CM800N3110
Cooling Capacity
kW 4.5 5.6 7.1
kBtu/h 15.35 19.11 24.23
Heating Capacity
kW 5.0 6.3 8.0
kBtu/h 17.06 21.50 27.30
Air Flow Rate
m
3
/h 700 700 1000
CFM 412 412 588
ESP(standard/max./range) Pa 20 20 20
Sound Pressure Level (H/M/L) dB(A) 40 /38 /36 41 /39 /37 42 /40 /38
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.06 0.06 0.02
Running Current A 0.41 0.41 0.45
Connecting
Pipes
Gas Pipe
mm 12.7 15.90 15.90
inch 1/2 0.626 0.626
Liquid Pipe
mm 6.35 9.52 9.52
inch 0.25 0.375 0.375
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes (External Dia.×Thickness) mm 30 ×1.5 30 ×1.5 30 ×1.5
Unit Dimensions (W×D×H) mm 900 ×615 ×200 900 ×615 ×200 1100 ×615 ×200
Package Dimensions (W×D×H) mm 1120 ×740 ×290 1120 ×740 ×290 1320 ×740 ×290
Net Weight kg 26.0 26.0 26.0
Gross Weight kg 33.0 33.0 33.0
Loading Quantity ( 20’ Container ) unit 90 90 72
Loading Quantity ( 40’ Container ) unit 192 192 162
Loading Quantity
( 40’ High Cube Container )
unit 192 192 162
Notes:
①.
The above performance parameter is measured according to the standard of GB/T 18837-2002.
②.
③.
The model with GMVL code is cooling only unit; while the model with GMV code is heat pump unit; the
cooling only units dose not have any parameters of performing heating.
④.
Above parameters are tested under the condition:high fan speed
Cooling : Indoor air temperature 27°C DB/19°C WB;
Heating : Indoor air temperature 20°C DB/15°C WB.
⑤ .
Location of microphone:
Return Air Duct
2m
1m
1
.4
m
Indoor Side
Microphone
SupplyA ir Duct
Duct
