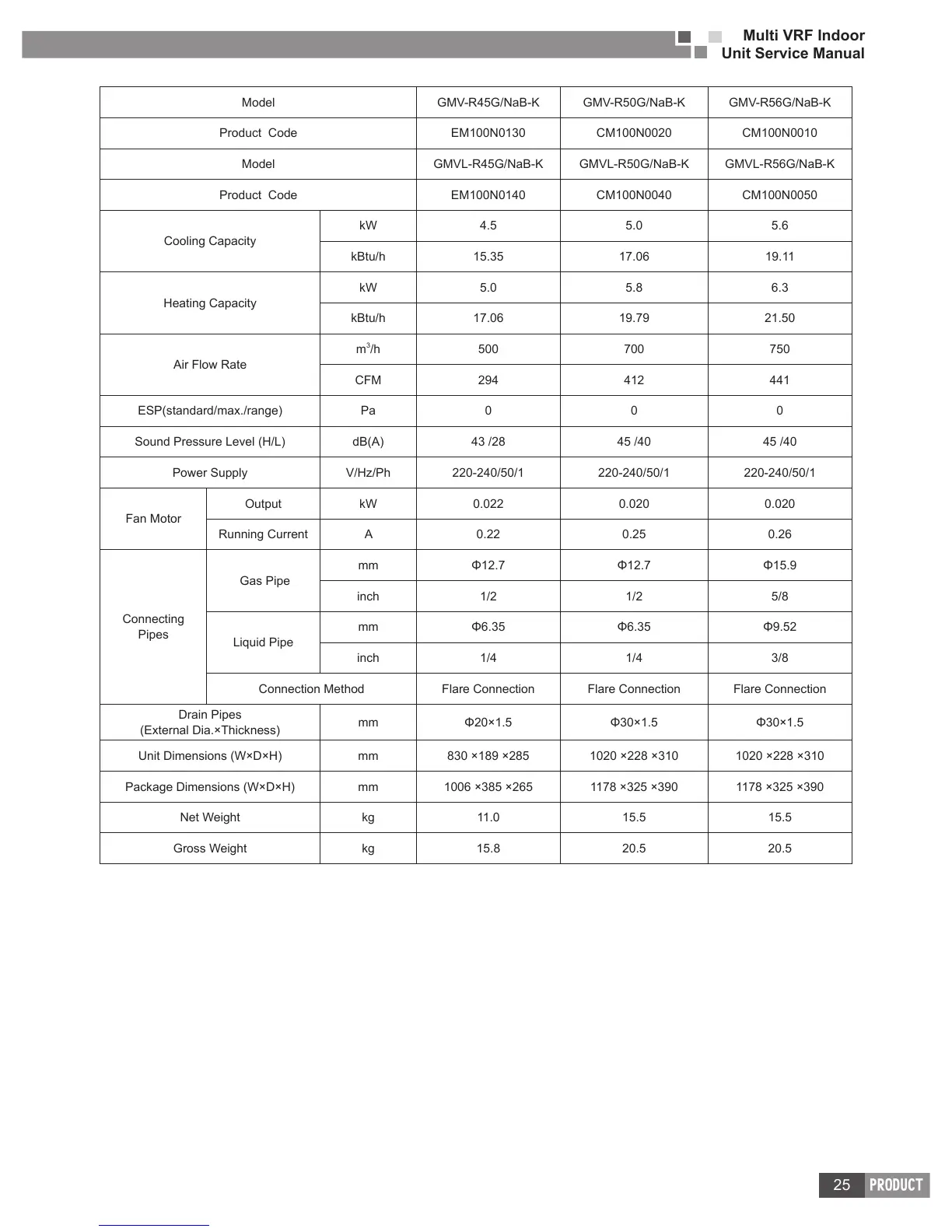

Multi VRF Indoor
Unit Service Manual
25
PRODUCT
Model GMV-R45G/NaB-K GMV-R50G/NaB-K GMV-R56G/NaB-K
Product Code EM100N0130 CM100N0020 CM100N0010
Model GMVL-R45G/NaB-K GMVL-R50G/NaB-K GMVL-R56G/NaB-K
Product Code EM100N0140 CM100N0040 CM100N0050
Cooling Capacity
kW 4.5 5.0 5.6
kBtu/h 15.35 17.06 19.11
Heating Capacity
kW 5.0 5.8 6.3
kBtu/h 17.06 19.79 21.50
Air Flow Rate
m
3
/h 500 700 750
CFM 294 412 441
ESP(standard/max./range) Pa 0 0 0
Sound Pressure Level (H/L) dB(A) 43 /28 45 /40 45 /40
Power Supply V/Hz/Ph 220-240/50/1 220-240/50/1 220-240/50/1
Fan Motor
Output kW 0.022 0.020 0.020
Running Current A 0.22 0.25 0.26
Connecting
Pipes
Gas Pipe
mm
inch 1/2 1/2 5/8
Liquid Pipe
mm
inch 1/4 1/4 3/8
Connection Method Flare Connection Flare Connection Flare Connection
Drain Pipes
(External Dia.×Thickness)
mm
Unit Dimensions (W×D×H) mm 830 ×189 ×285 1020 ×228 ×310 1020 ×228 ×310
Package Dimensions (W×D×H) mm 1006 ×385 ×265 1178 ×325 ×390 1178 ×325 ×390
Net Weight kg 11.0 15.5 15.5
Gross Weight kg 15.8 20.5 20.5
